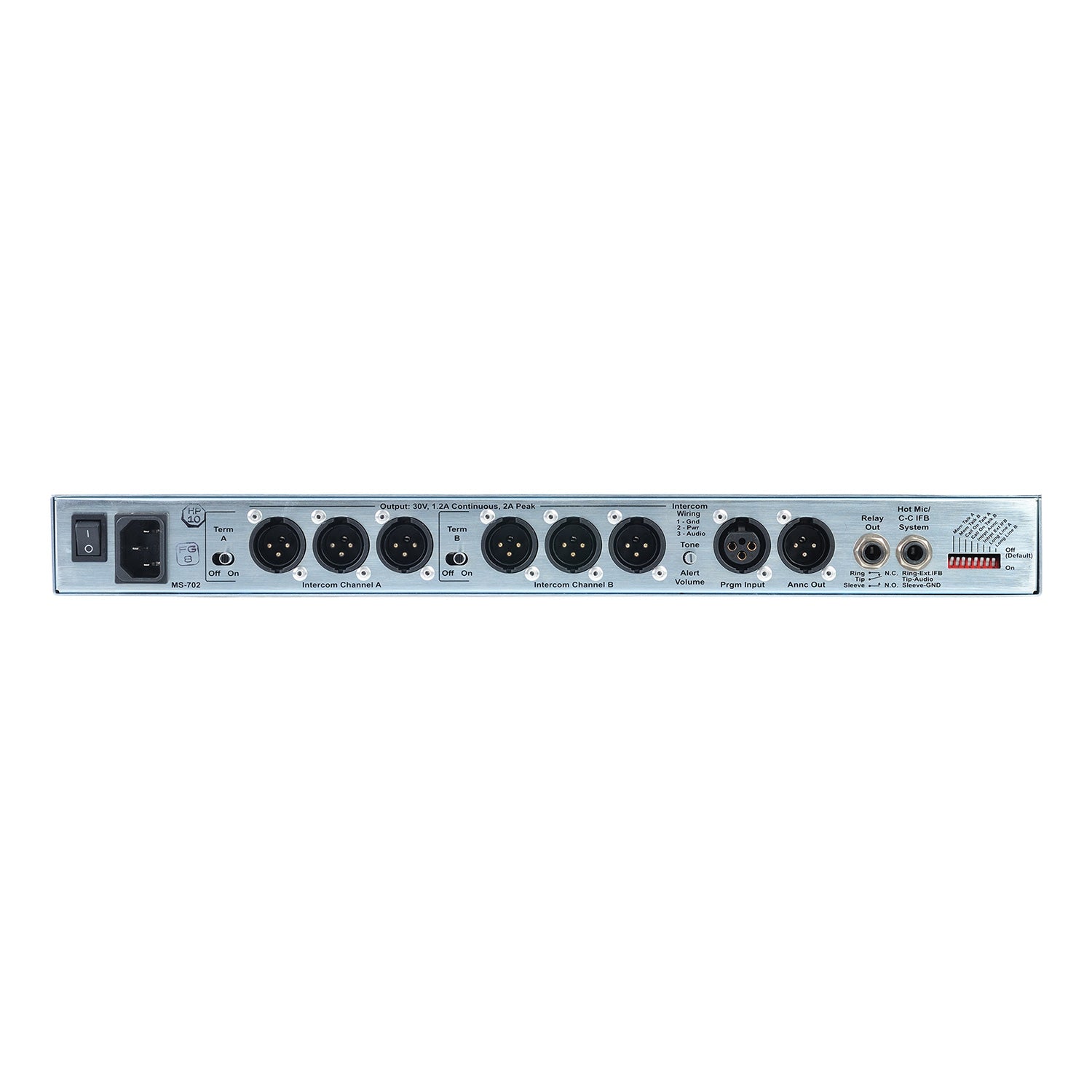

Clear-Com MS-802-IM - Two-Channel Main Station for Encore Series Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com MS-802-IM - Two-Channel Main Station for Encore Series Intercom
Sale price$2,725.00
Description
The MS-802-IM is a 1RU two-channel main station with programmable front panel buttons, individual channel short-circuit protection, individual channel volume control, and a regulated fail-safe power supply. The MS-802-IM supports up to 55 beltpacks or 10 speaker stations.
Features:
- Supports up to 55 beltpacks or 10 speaker stations on two channels
- IP-20 environmental rating
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- Separate short-circuit protection for each channel
- Program feed to both channels, with selectable Program Interrupt (IFB)
- Remote Mic Kill
- Announce output with relay
- Visual and audible Tone Alert signaling
- Built-in speaker
- Universal voltage power supply
| Station Capacity | Up to 55 RS-801-IM beltpacks or 10 speaker stations or 12 headset stations distributed over both channels |
| Panel Microphone Input | Input Type: Electret Input Impedance: >=2K Mic Limiter Threshold: 0dBu ±3dB Mic Limiter Range: >= 20dB |
| Headset Microphone Input | Input Type: Dynamic Input Impedance: >= 1K Mic Limiter Threshold: 0dBu ± 3dB Mic Limiter Range: >= 15 dB |
| Program Line Input | Maximum Level before Clipping: >= 20dBu Input Impedance: >= 5K |
| Headset Output | Load Impedance: >= 8 Output Impedance: <= 25 Output Limiter Threshold: +5dBu ± 3dB Maximum Output Level before Distortion: >= 17dBu |
| Speaker Output | Load Impedance: >= 4 Max Output Level before 1% Distortion: 20dBu ± 2dBu Partyline Output O Noise: < -74dBu Output Impedance: >10K |
| Partyline Input | Crosstalk: < -60dB Max level before Clipping: >= 12dBu Sidetone Null Capability: > 25dB |
| Stage Announce/Balanced Line Out | Type: Balanced Output Impedance: >= 200 Load Impedance: >= 600 |
| IFB/Hot Mic | Type: Unbalanced Output Impedance: 180 Load Impedance: >= 600 |
| Frequency Response | Panel Mic - Partyline: 600 - 10kHz ± 3dB Headset Mic - Partyline: 200 - 12kHz ± 3 dB Headset Mic - Line Out: 200 - 12kHz ± 3 dB Program Input - Partyline: 100 17kHz ± 3 dB Program Input - Headset Out: 200 - 10kHz ± 3 dB Program Input - Speaker Out: 300 - 10kHz ± 3 dB Partyline - Headset Out: 200 - 10kHz ± 3 dB Partyline - Speaker Out: 300 - 10kHz ± 3 dB |
| Max Distortion | Panel Mic - Partyline: <= 0.5% Headset Mic - Partyline: <= 0.5% Headset Mic - Line Out: <= 0.5% Program Input - Partyline: <= 0.2% Program Input - Headset Out: <= 0.2% Program Input - Speaker Out: <= 0.5% Partyline - Headset Out: <= 0.2% Partyline - Speaker Out: <= 0.5% |
| Noise | Panel Mic - Partyline: < -65dBu Headset Mic - Partyline: < -70dBu Headset Mic - Line Out: < -55dBu Program Input - Partyline: < -85dBu Program Input - Headset Out: < -60dBu Program Input - Speaker Out: < -60dBu Partyline - Headset Out: < -50dBu Partyline - Speaker Out: < -50dBu |
| Max Gain | Panel Mic - Partyline: >= 37dB Headset Mic - Partyline: 41dB ± 2dB Headset Mic - Hot Mic Out: 55dB ± 3dB Headset Mic - Announce Out: 55dB ± 3dB Program Input - Partyline: >= -16dB Program Input - Headset Out: >= 18dB Program Input - Speaker Out: >= 24dB Partyline - Headset Out: >= 34dB Partyline - Speaker Out: >= 40dB |
| Min Gain | Panel Mic - Partyline: <= 25dB |
| Mains Power | |
| Input Voltage Range | 100 - 240V AC |
| Input Frequency Range | 50 - 60 Hz |
| Input Power | <= 60V AC |
| Output Voltage | 30V DC ± 0.5V |
| Output Current per Channel (Continuous) | 1.2A |
| Output Current per Channel (Peak) | 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period) |
| Short Circuit Recovery Time (1st short) | <= 0.5 sec |
| Short Circuit Recovery Time >= 20 shorts in 20sec | <= 20 sec |
| Environmental | |
| Temperature | 32 - 122¡F (0 - 50¡C) |
| Relative Humidity | 0 - 96%, non-condensing |
| Vibration Frequency Range | 2 - 13.2Hz |
| Amplitude | 1.0mm |
| Peak Value Frequency Range | 13.2 - 100Hz, |
| Acceleration Amplitude | 0.7g |
| EMC | DNVGL-CG-0339 - Class A |
| Enclosure | IP-20 |
| Dimensions | 1.75 x 19 x 6.5in (HxWxD) (44 x 483 x 165mm) |
| Weight | 6.1lbs (2.8kg) |
| Certifications and Compliance | This device complies with part 15 of the FCC Rules. |
| This device complies with European Union CE Mark | ¥ Electromagnetic Compatibility Directive 2014/30/EU ¥ Low Voltage Directive 2014/35/EU ¥ RoHS Directive 2011/65/EU ¥ Standards: EN 55032, EN 55024, EN 60950-1, EN 50581 |
| This device complies with Maritime Certification | ¥ Conformity with DNVGL-CG-0339 Edition November 2016 ¥ Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2 ¥ Compass Safety Distance conformity per DNVGL-CG-0339 and IEC 6094 |
