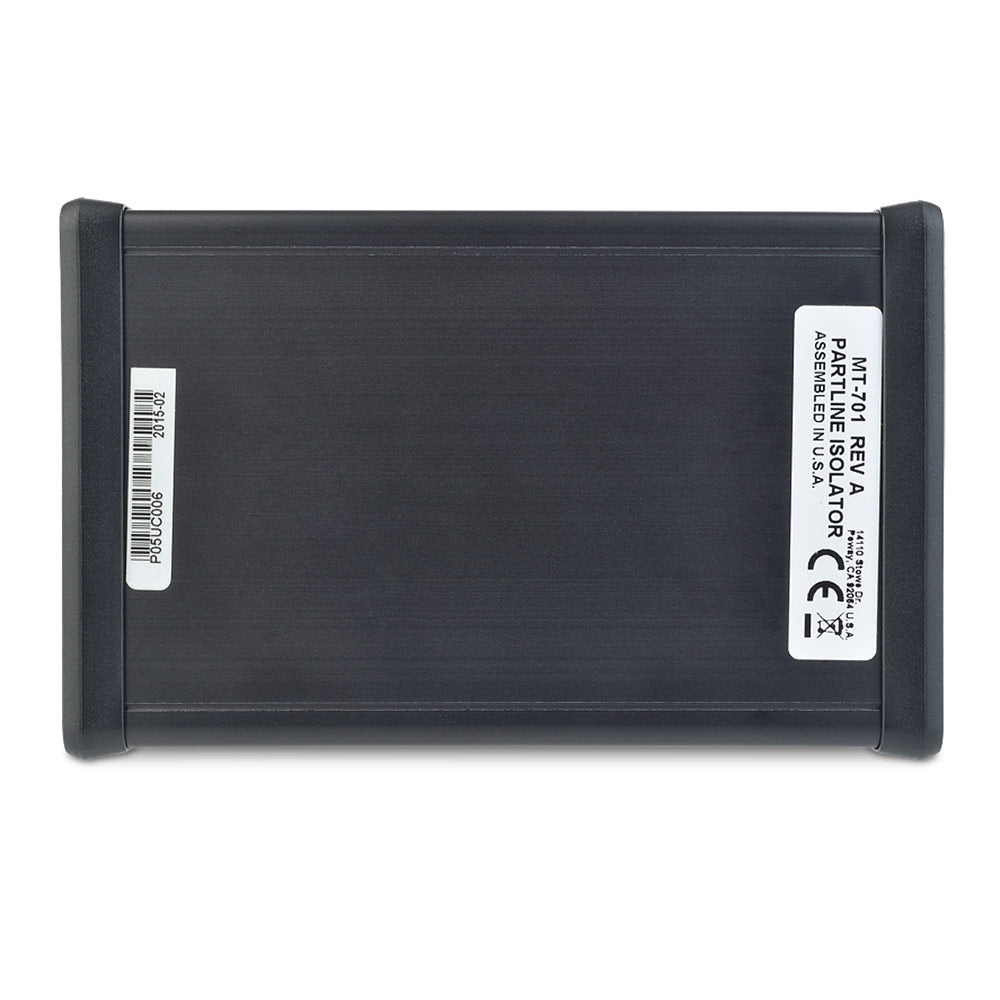

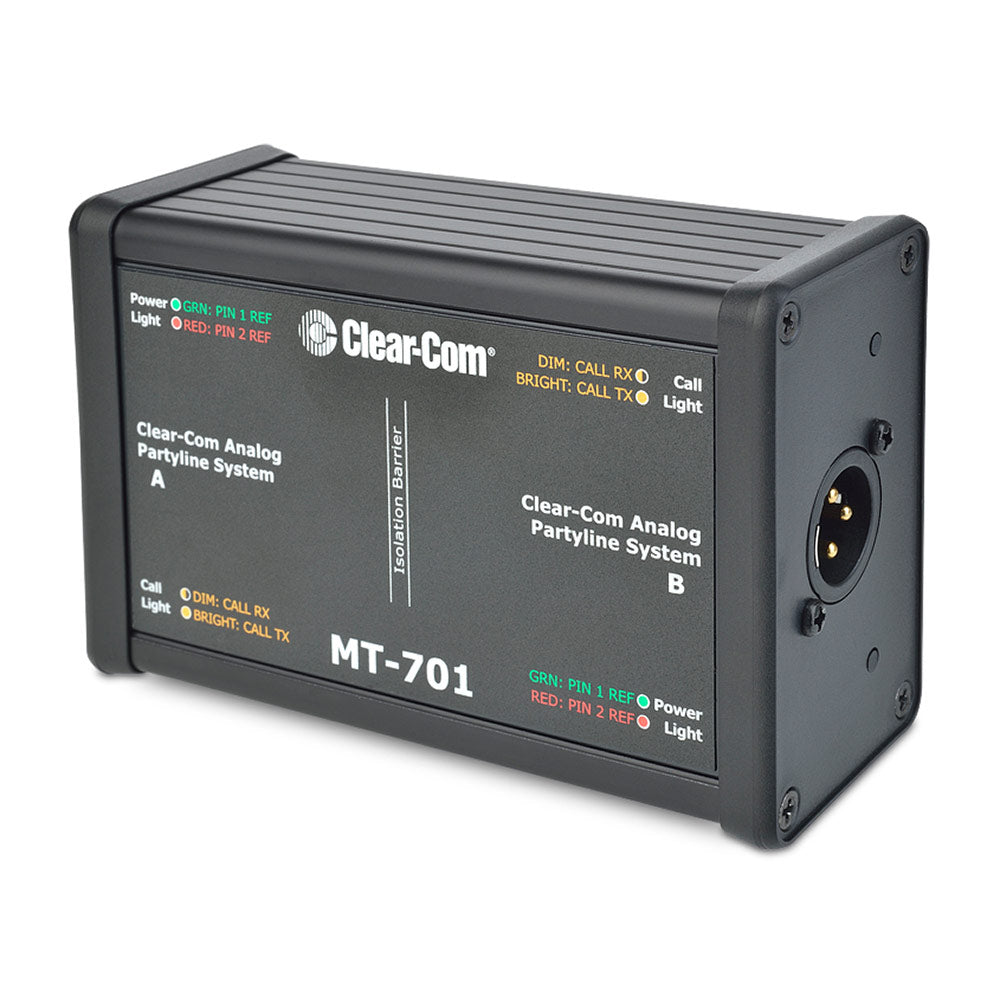

Clear-Com MT-701 - Line Isolator and System Bridge for Encore Series Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MT-701 is an isolation box that is used to reduce hum in Clear-Com Encore Partyline products when multiple grounds are present. The MT-701 can also be used to bridge two partyline systems together.
Features:
- One termination required between connected systems
- Status information LEDs
- Easy installation with standard XLR cables
- High-quality enclosure for professional use
| Audio | |
| Pin 2 Impedance | >5000½ |
| Max Level | +2dBu |
| Distortion | <0.2% THD (200Hz Ð 10kHz, -10dBu) |
| Frequency Response | 100kHz Ð 10kHz, +2dBu |
| Nominal Input Level | -18dBu (Clear-Com) |
| Power Consumption | <5 mA |
| Environmental | 32¡ - +122¡F (0¡- +50¡C) |
| Dimensions | 1.8 x 3.2 x 5in (HxWxD) (46 x 81 x 126mm) |
| Weight | 9.6oz (0.27kg) |
The MT-701 is an isolation box that is used to reduce hum in Clear-Com Encore Partyline products when multiple grounds are present. The MT-701 can also be used to bridge two partyline systems together.
Features:
- One termination required between connected systems
- Status information LEDs
- Easy installation with standard XLR cables
- High-quality enclosure for professional use
| Audio | |
| Pin 2 Impedance | >5000½ |
| Max Level | +2dBu |
| Distortion | <0.2% THD (200Hz Ð 10kHz, -10dBu) |
| Frequency Response | 100kHz Ð 10kHz, +2dBu |
| Nominal Input Level | -18dBu (Clear-Com) |
| Power Consumption | <5 mA |
| Environmental | 32¡ - +122¡F (0¡- +50¡C) |
| Dimensions | 1.8 x 3.2 x 5in (HxWxD) (46 x 81 x 126mm) |
| Weight | 9.6oz (0.27kg) |
