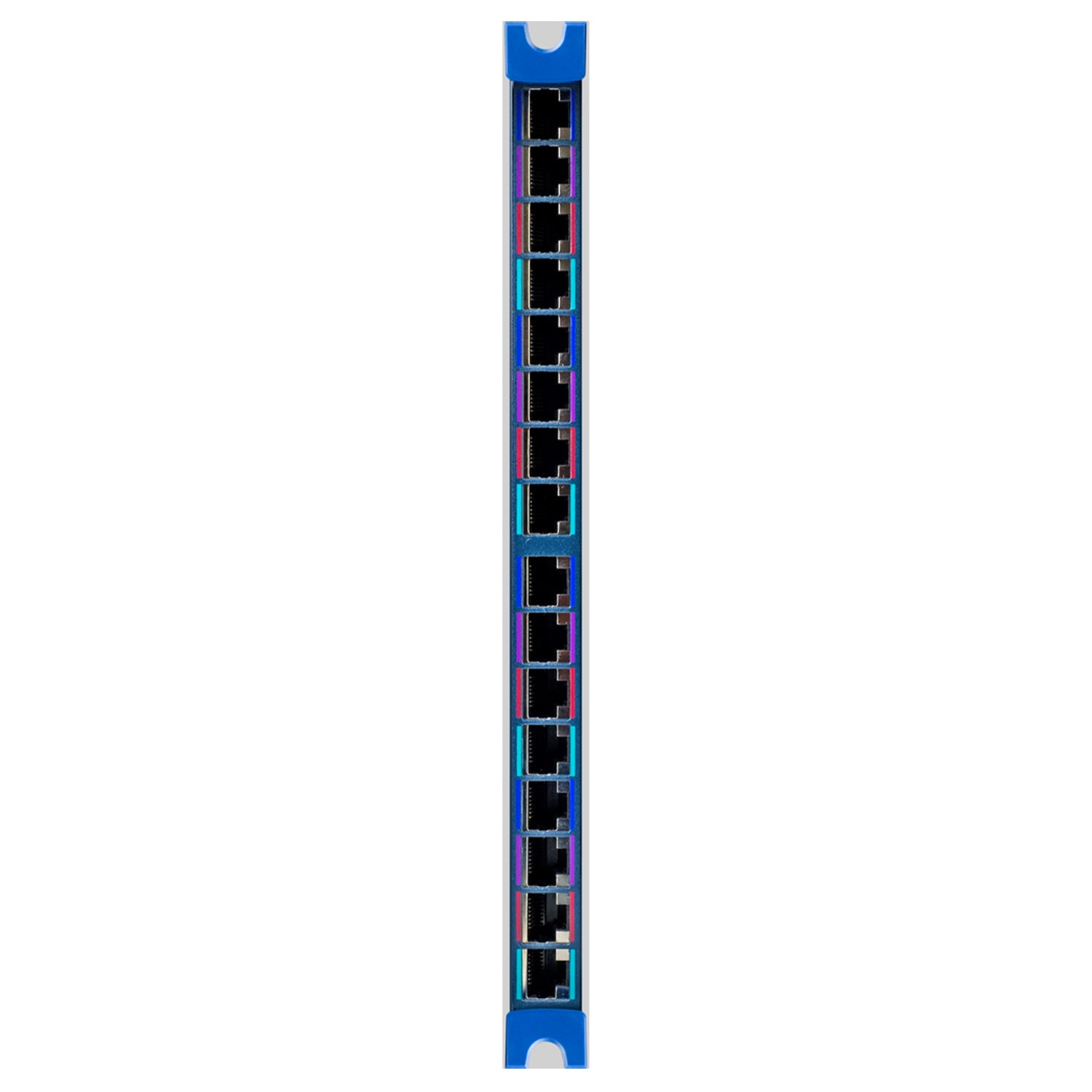

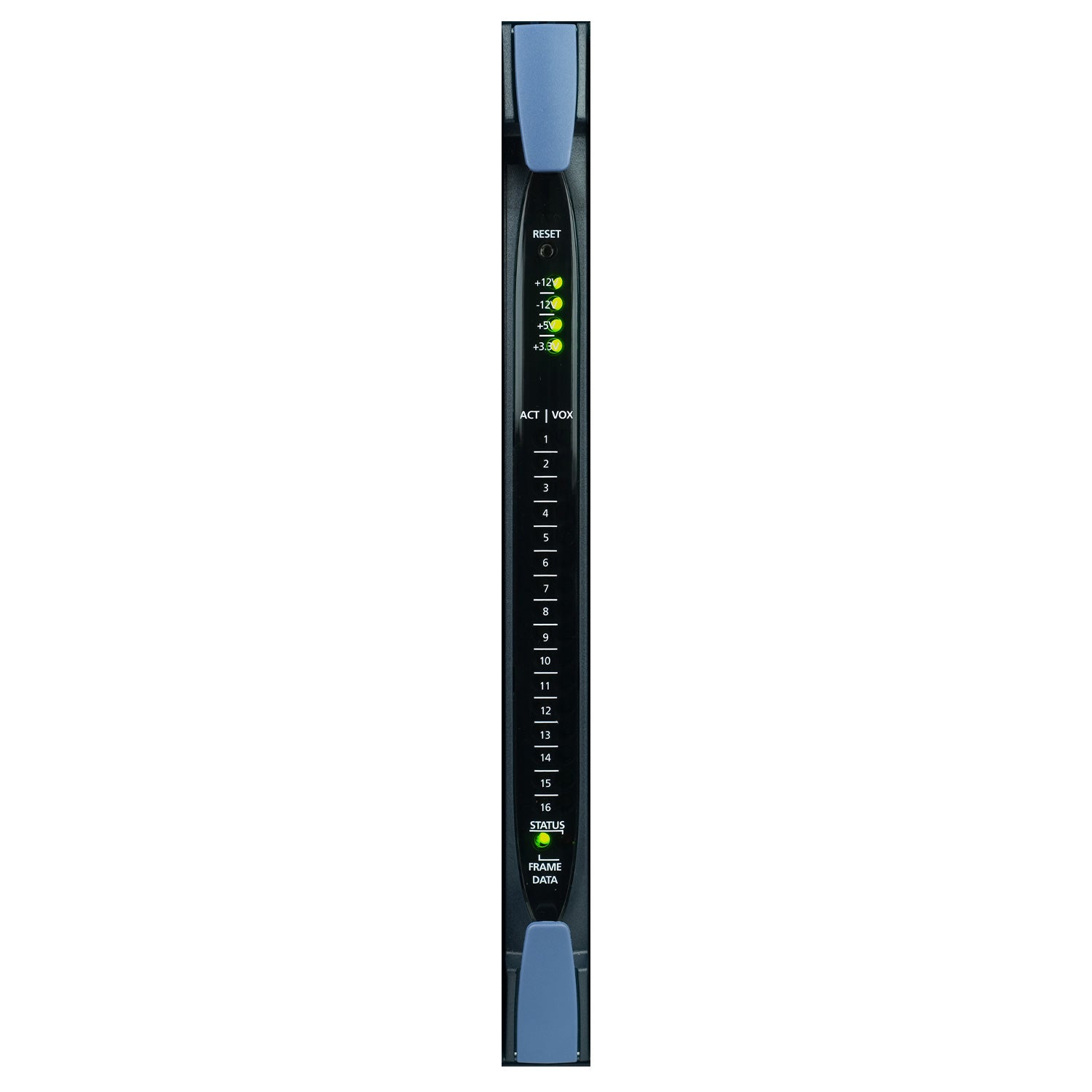

Clear-Com MVX-A16-HX - 16-Port Audio and Data Interface Module for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com MVX-A16-HX - 16-Port Audio and Data Interface Module for Eclipse HX
Sale price$11,565.00
Description
16-port Audio and Data Interface Card for Eclipse HX.
Features:
- Adds 16-ports of audio and data per card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Up to 15 cards supported per Eclipse HX card frame
- Delta-Lite: Up to 2 cards
- Delta: Up to 4 cards
- Median: Up to 7 cards
- Omega: Up to 15 cards
- Uses balanced 4-wire audio and RS422 data interfacing
- Eclipse HX Configuration Software (EHX)
| Audio | Audio Interface: 16, bi-directional Input Format: Balanced Output Format: Balanced Ground Isolation: None; expected at User Panel/Station |
| Analog Port Card Outputs | Level: 0 dBu nominal Impedance: 100½ balanced Frequency Response: 30 HzÐ22 kHz ± 3 dB Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz |
| Analog Port Card Inputs | Level: 0 dBv nominal Impedance: 600½ balanced Frequency Response: 30 HzÐ22 kHz ± 3 dB Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz |
| Weight | Front Card: 1.64 lbs (0.75kg) Rear Card: 9.2 oz (0.26kg) |
| Environmental | Operating Temperature: +32¡ F to +113¡ F (0¡ C to +45¡ C) Storage Temperature: -22¡ F to +158¡ F (-30¡ C to +70¡ C) Humidity: 90%, non-condensing |
| Dimensions | Height: 6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames) |
| Depth | Front Panel: 11.8in (300mm) Rear Panel: 2.28 (58mm) |
16-port Audio and Data Interface Card for Eclipse HX.
Features:
- Adds 16-ports of audio and data per card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Up to 15 cards supported per Eclipse HX card frame
- Delta-Lite: Up to 2 cards
- Delta: Up to 4 cards
- Median: Up to 7 cards
- Omega: Up to 15 cards
- Uses balanced 4-wire audio and RS422 data interfacing
- Eclipse HX Configuration Software (EHX)
| Audio | Audio Interface: 16, bi-directional Input Format: Balanced Output Format: Balanced Ground Isolation: None; expected at User Panel/Station |
| Analog Port Card Outputs | Level: 0 dBu nominal Impedance: 100½ balanced Frequency Response: 30 HzÐ22 kHz ± 3 dB Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz |
| Analog Port Card Inputs | Level: 0 dBv nominal Impedance: 600½ balanced Frequency Response: 30 HzÐ22 kHz ± 3 dB Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz |
| Weight | Front Card: 1.64 lbs (0.75kg) Rear Card: 9.2 oz (0.26kg) |
| Environmental | Operating Temperature: +32¡ F to +113¡ F (0¡ C to +45¡ C) Storage Temperature: -22¡ F to +158¡ F (-30¡ C to +70¡ C) Humidity: 90%, non-condensing |
| Dimensions | Height: 6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames) |
| Depth | Front Panel: 11.8in (300mm) Rear Panel: 2.28 (58mm) |
