Clear-Com PK-7 One-channel 0.4 Amp Portable Power Supply
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

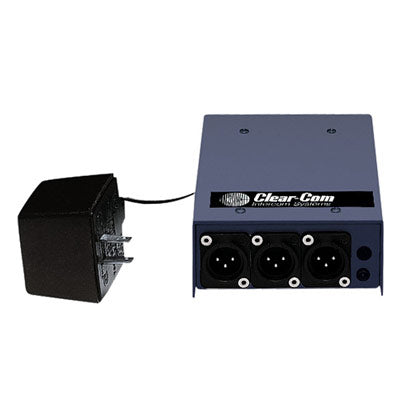

A small, economical, lightweight power supply designed for powering small systems. Housed in a rugged, all metal case, it features short-circuit protection with automatic recovery and full voltage regulation to 400mA. Three output connectors provide convenient interconnection to the beltpacks. Will support 10 beltpacks or 3 speaker stations. UL listed external power supply module included.
| Mains Input | |||||||||||||||||||||||||||
| Input Voltage | 100-240 VAC | ||||||||||||||||||||||||||
| Input Frequency Range | 50-60Hz | ||||||||||||||||||||||||||
| Power Output | |||||||||||||||||||||||||||
| Output Voltage | 22-30 VDC | ||||||||||||||||||||||||||
| Output Current | >=400mA | ||||||||||||||||||||||||||
| Output Connectors | (3) XLR-3F | ||||||||||||||||||||||||||
| Front Panel Connectors and Indicators | |||||||||||||||||||||||||||
| Input Connector | (1) 2.1mm | ||||||||||||||||||||||||||
| Co-axial connector | |||||||||||||||||||||||||||
| Indicators | (2) LEDs: red(overload), green (normal) | ||||||||||||||||||||||||||
| Environmental | 32 - 122˚ F (0 - 50˚ C) | ||||||||||||||||||||||||||
| Dimensions |
A small, economical, lightweight power supply designed for powering small systems. Housed in a rugged, all metal case, it features short-circuit protection with automatic recovery and full voltage regulation to 400mA. Three output connectors provide convenient interconnection to the beltpacks. Will support 10 beltpacks or 3 speaker stations. UL listed external power supply module included.
| ||||||||||||||||||||||||||
