Clear-Com PS-704 4 Channel Rackmount Power Supply for Partyline Series


  • Dale #:

    CLEA-PS704
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

4-Channel 2-Amp Rack Mount (1RU) System Power Supply - UL Listed. 4-channel x 2 intercom jacks, 1 program input, universal power supply. The PS-704 is a four-channel, single rack-space intercom power supply that features Clear-Com’s "fail-safe" design for maximum reliability. The power supply del... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

4-Channel 2-Amp Rack Mount (1RU) System Power Supply - UL Listed. 4-channel x 2 intercom jacks, 1 program input, universal power supply. The PS-704 is a four-channel, single rack-space intercom power supply that features Clear-Com’s "fail-safe" design for maximum reliability. The power supply delivers 1.2 amps at 30 volts, supplying power for one to four channels of intercom. It will support up to 40 beltpacks, 10 speaker stations or 12 headset stations.

Features

  • Only one rack space high
  • Provides up to 2 amps total power
  • Supports up to 40 beltpacks, 10 speaker stations or 12 headset stations
  • One to four channels of intercom with individual channel power protection
  • Automatic short circuit protection and reset for each channel
  • “Short” power indicator LED’s for each channel
  • Program input with selectable channel assignment and individual channel level controls
  • Can be paralleled with other power supplies and main stations for increased capacity or backup support
  • Switchable terminations on each channel
  • Unitized chassis construction for strength and durability
  • Universal power supply accepts 100 - 240 VAC
  • UL listed and CE certified.

More +

Product Specs

Program Line Input
Maximum Level before Clipping>= 20dBu
Input Impedance>= 5KO
Frequency Response
Program Input - Party-line200 - 20KHz ± 3dB
Max Distortion
Program Input - Party-line <= 0.2%
Noise
Program Mic Input - Party-line< -70dBu
Max Gain
Program Input - Party-line>= -16dB
Min Gain
Program Input - Party-line<= -20dB
Mains Power
Input Voltage Range100 - 240 VAC
Input Frequency Range50 - 60 Hz
Input Power<= 60 VAC
Output Voltage30 VDC ± 0.5V
Output Current per Channel (Continuous)1.2 A
Output Current per Channel (Peak)2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short)<= 0.5 sec
Short Circuit Recovery Time<= 20 sec
Station CapacityUp to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over both channels

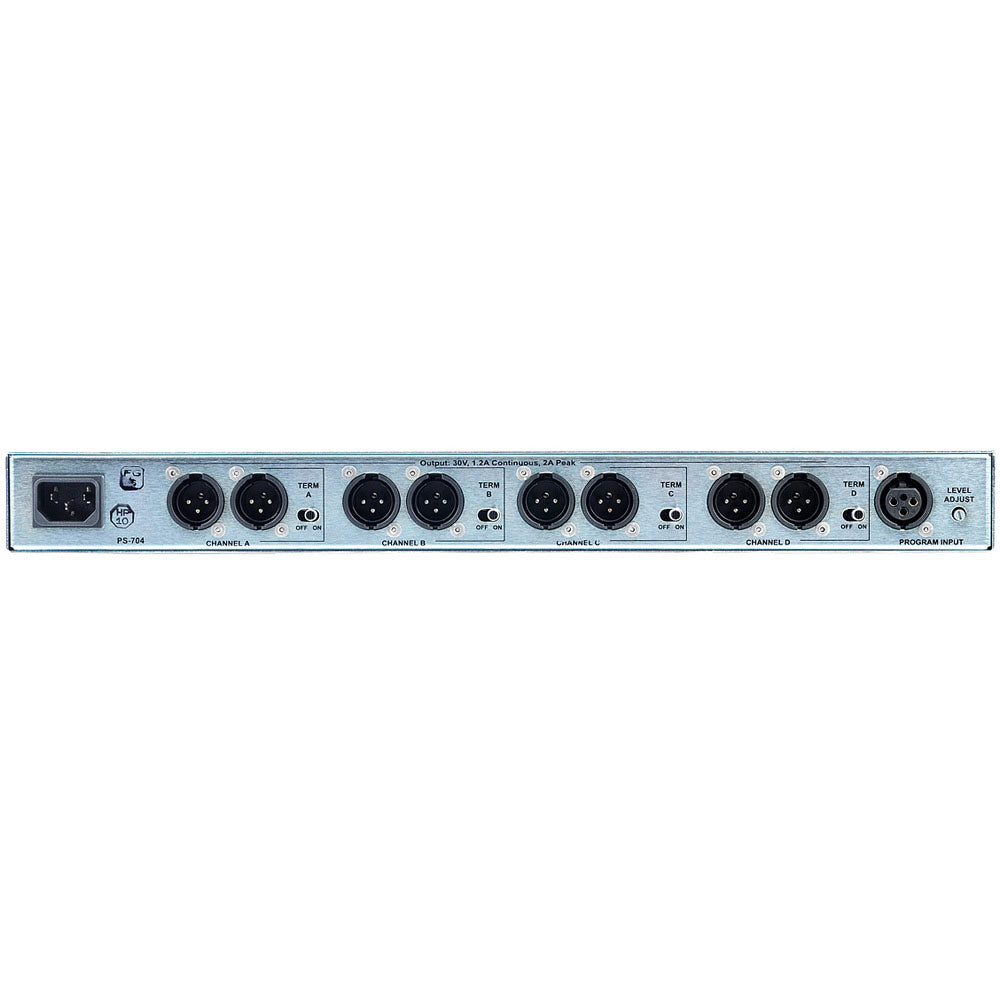

Rear Panel Connectors
Intercom(8) XLR-3M (2 per channel)
Program(1) XLR-3F
AC PowerIEC 320 connector
Rear Panel Controls(4) Termination On-Off switches
(1) Volume control

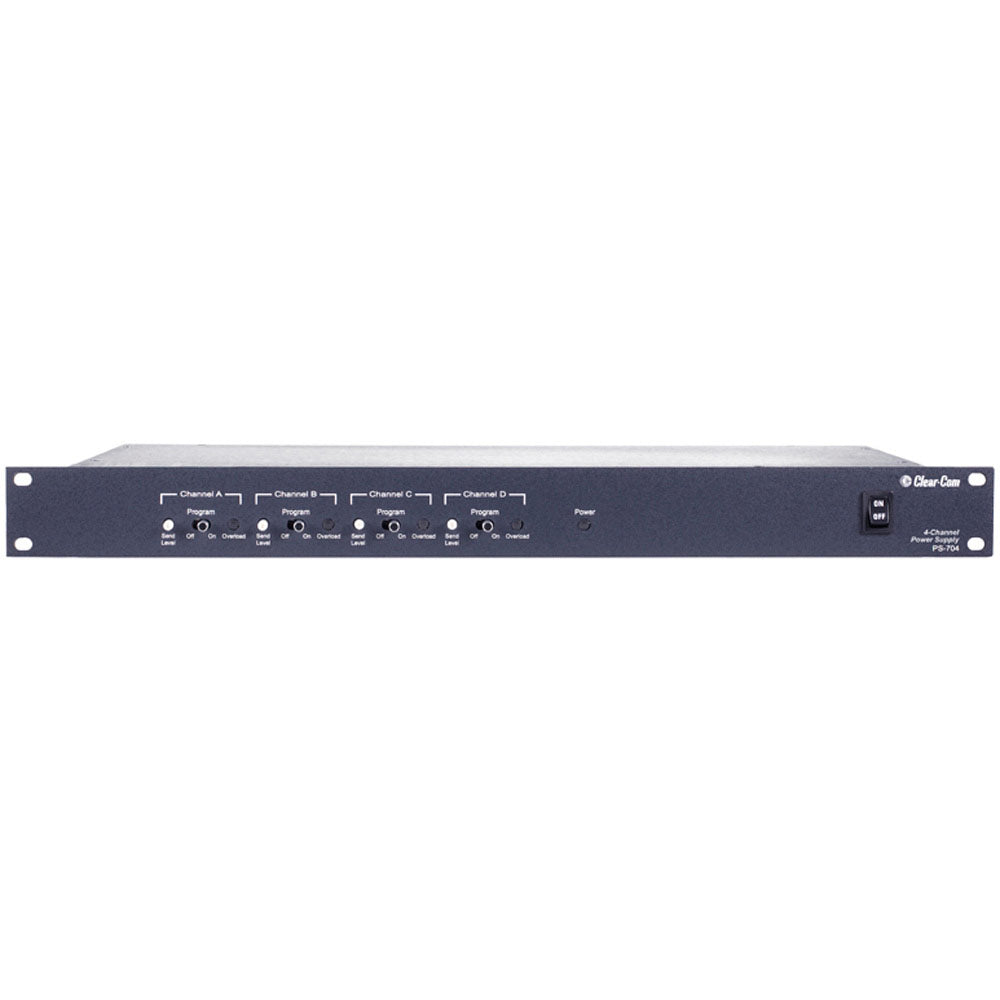

Front Panel Controls & Indicators(4) Program switch
(4) Send level controls
(4) Overload LEDs
(1) Power indicator LED
(1) Power switch
Environmental32° - 122°F (0 - 50°C)
Dimensions19 in. W x 1.75 in. H x 7.5 in. D (483 mm x 44 mm x 190 mm)
Weight6.16 lbs. (2.80 kg)
