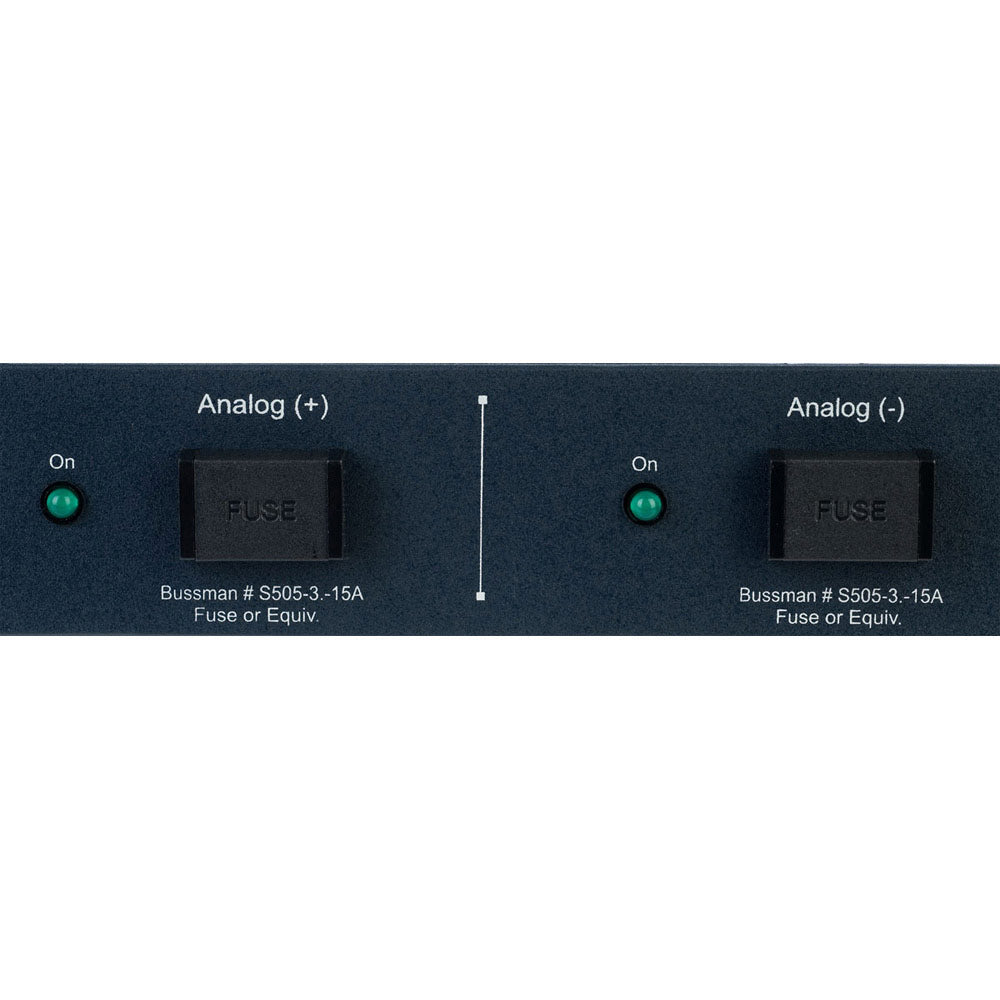

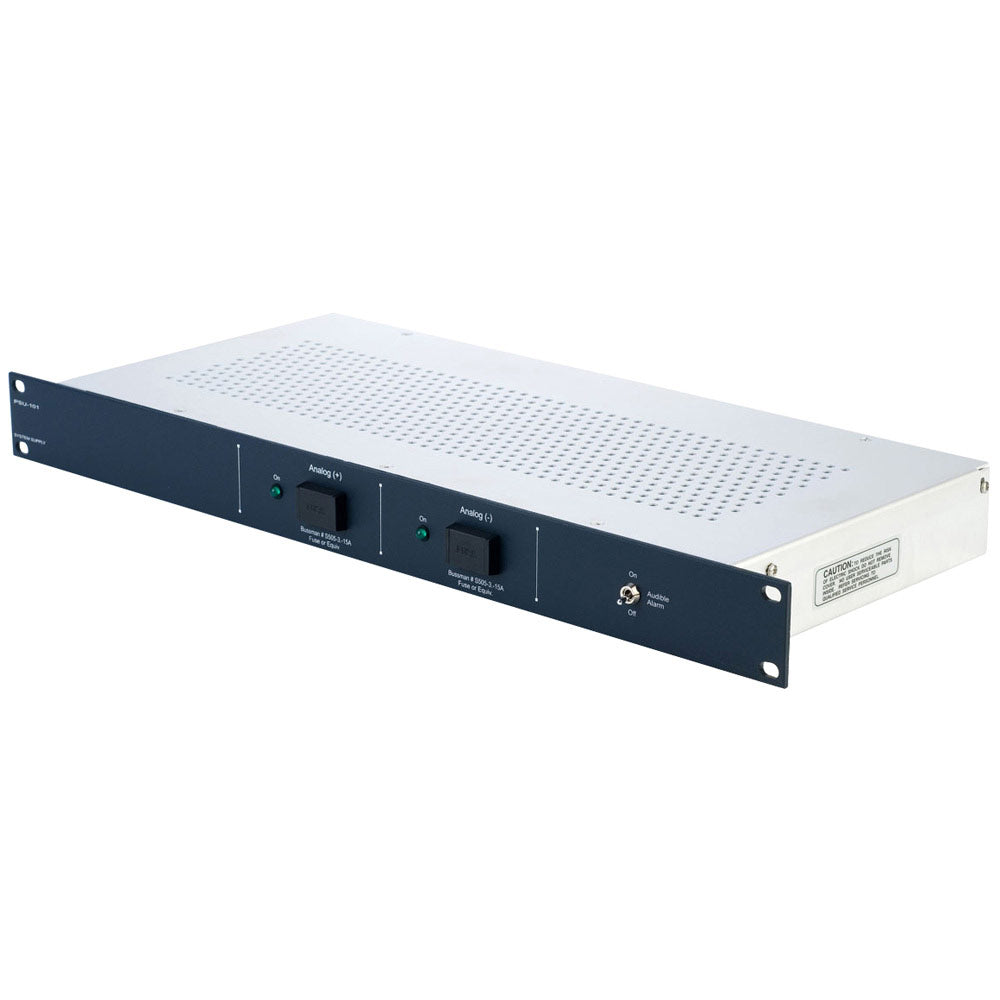

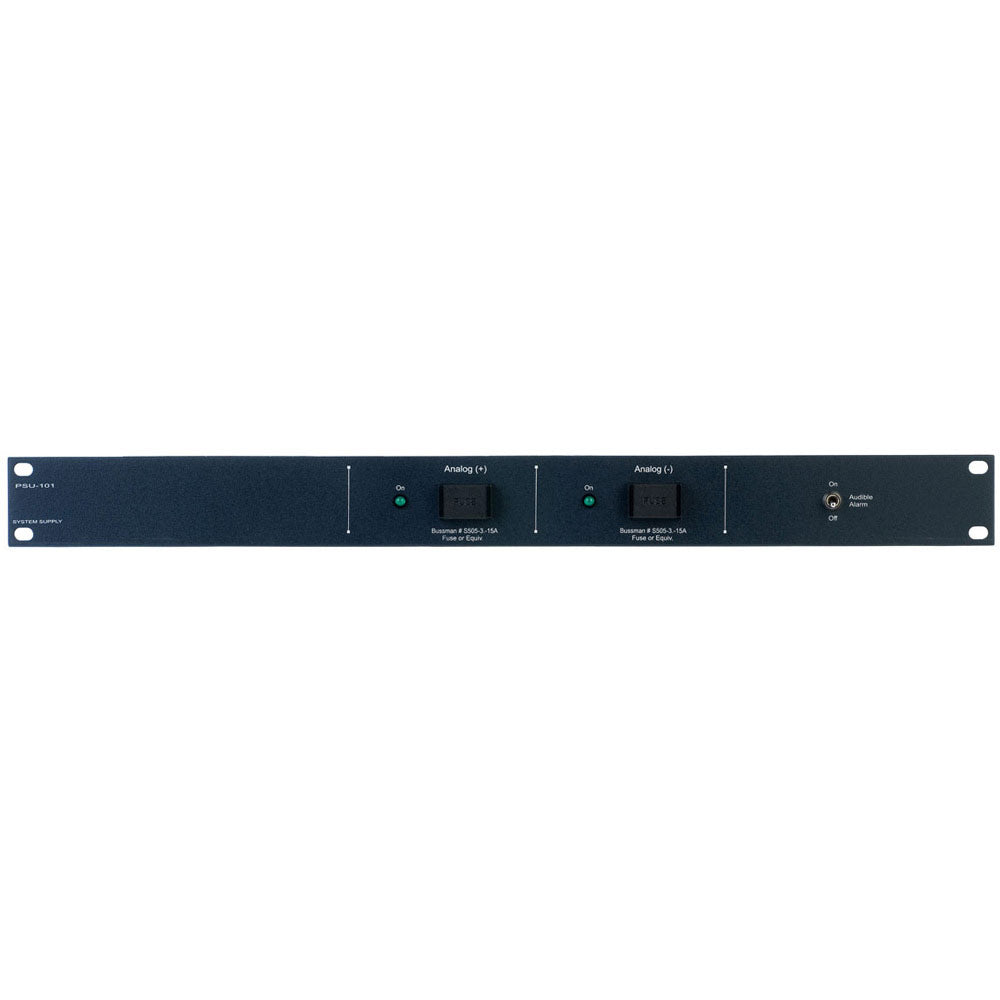

Clear-Com PSU-101 Rack Power Supply Module for IMF3 Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
PSU-101 Power Supply for the IMF-3. (Does not power the Party Lines attached to CCI-22 modules. These require Encore Master Station PSUs such as the PK-7, PS-702 or MS-702). The PSU-101 is the power supply for the IMF-3 interface frame. It has both an audible failure alarm and failure relay contacts to activate a remote signal. A single PSU-101 will power a minimum of two interface frames, depending on the type of interfaces and their individual power requirements.
Features
- Connect digital matrix systems with a host of other communications systems
- Two sizes of interface frames: 3 RU x 11 interfaces and 1 RU x 2 interfaces
- Seamless interfacing with telephone, two-way radio, cameras, party-line intercom, IFB systems, other communications systems and control devices
- Interfaces are compatible with Matrix Plus, MicroMatrix, and other digital intercom systems
- Specialty panels for transformer isolation, interfacing with IFB receivers, and connections between Matrix Plus II and Matrix Plus 3 systems
| Two 9-volt switching supplies with audible failure alarm | |
| Output Current | 3 Amps |
| Indicators | 2 power supply LEDs |

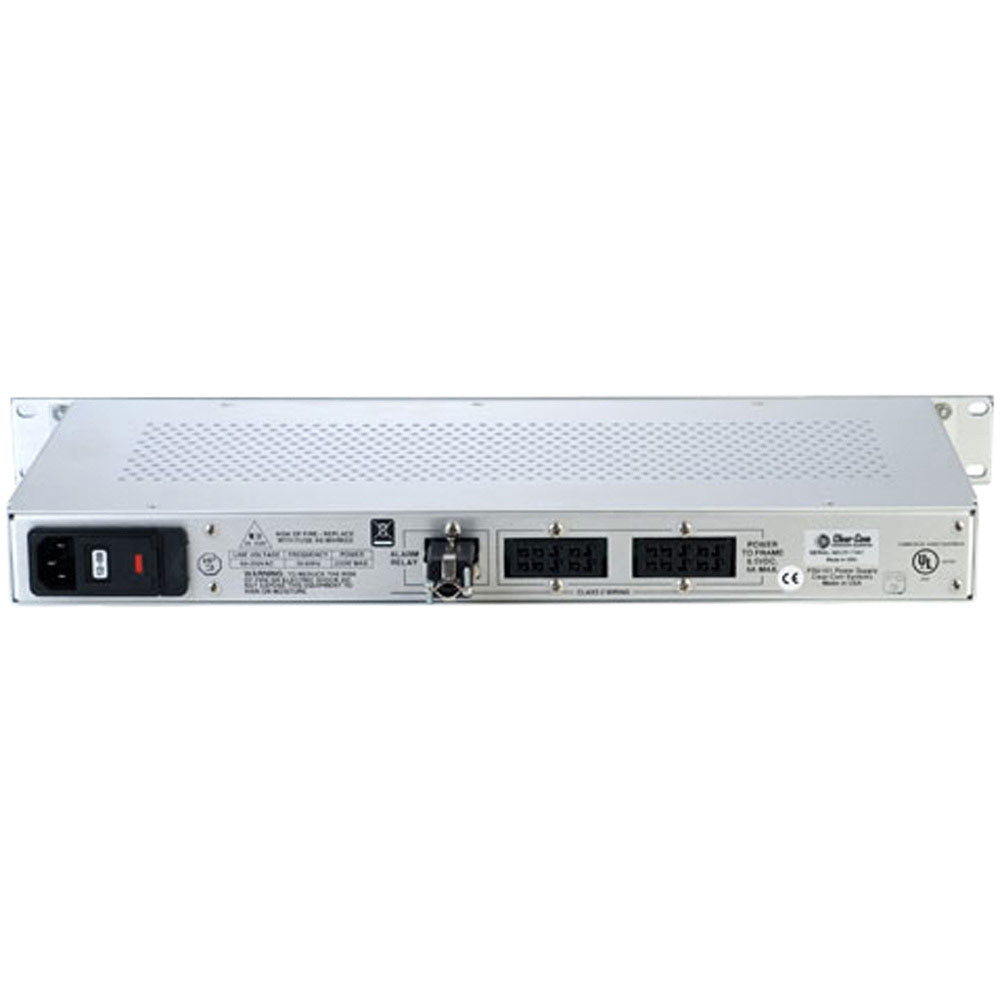

| Rear Panel Connectors | |
| Alarm Out | SPST relay @ 1 amp DC rating |
| Mains Connector | IEC 3-pin connector |
| AC Power Input | |
| Voltage | 90 - 260 VAC |
| Power | 125 Volt-Amps maximum |
| Frequency | 50 - 60 Hz |
| Size | 1.75" H x 19" W x 7.75" D (44 x 483 x 197 mm) |
| Weight | 4.5 lbs (2 Kg) |
PSU-101 Power Supply for the IMF-3. (Does not power the Party Lines attached to CCI-22 modules. These require Encore Master Station PSUs such as the PK-7, PS-702 or MS-702). The PSU-101 is the power supply for the IMF-3 interface frame. It has both an audible failure alarm and failure relay contacts to activate a remote signal. A single PSU-101 will power a minimum of two interface frames, depending on the type of interfaces and their individual power requirements.
Features
- Connect digital matrix systems with a host of other communications systems
- Two sizes of interface frames: 3 RU x 11 interfaces and 1 RU x 2 interfaces
- Seamless interfacing with telephone, two-way radio, cameras, party-line intercom, IFB systems, other communications systems and control devices
- Interfaces are compatible with Matrix Plus, MicroMatrix, and other digital intercom systems
- Specialty panels for transformer isolation, interfacing with IFB receivers, and connections between Matrix Plus II and Matrix Plus 3 systems
| Two 9-volt switching supplies with audible failure alarm | |
| Output Current | 3 Amps |
| Indicators | 2 power supply LEDs |
| Rear Panel Connectors | |
| Alarm Out | SPST relay @ 1 amp DC rating |
| Mains Connector | IEC 3-pin connector |
| AC Power Input | |
| Voltage | 90 - 260 VAC |
| Power | 125 Volt-Amps maximum |
| Frequency | 50 - 60 Hz |
| Size | 1.75" H x 19" W x 7.75" D (44 x 483 x 197 mm) |
| Weight | 4.5 lbs (2 Kg) |
