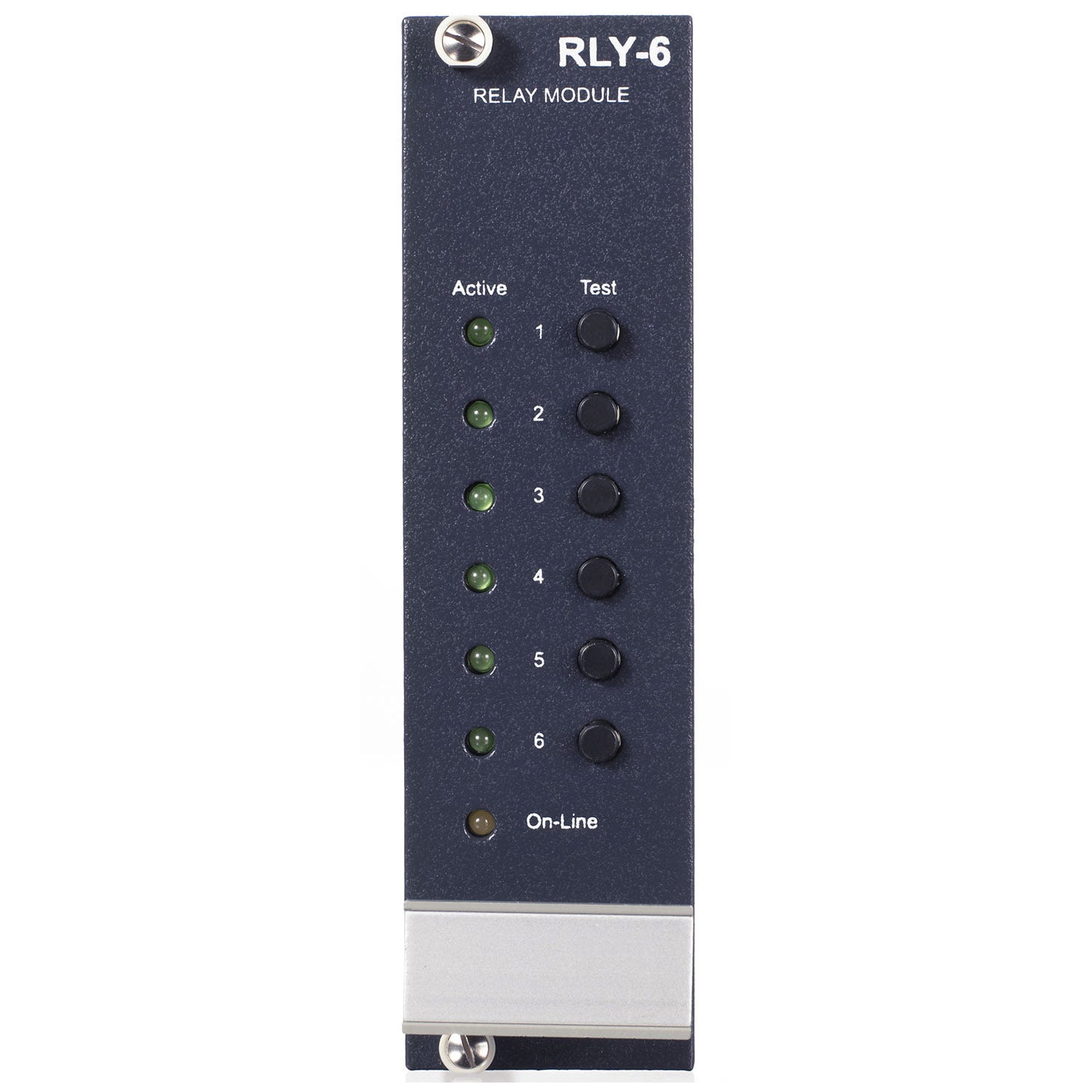

Clear-Com RLY-6 - 6-Way Relay Control Interface Module for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com RLY-6 - 6-Way Relay Control Interface Module for Eclipse HX
Sale price$1,395.00
Description
6-way Relay Control Interface Module for Eclipse HX intercom.
Features:
- 6 Single Pole, Double Throw (SPDT) relay output connections to Eclipse HX
- Fully programmable
- Provides external DC signal light activation or door control
- Eclipse HX Configuration Software (EHX)
| Relays | Six SPDT 24V DC @ 1 Amp |
| Power Requirements | 150mA max from PSU-101 power supply |
| Environmental | Operating Temperature: 32¡ - 104¡F (0¡ - 40¡C) Storage Temperature: -67¡ - 158¡F (-55¡ - 70¡C) Humidity: 90% non-condensing |
| Dimensions | 5.06 x 1.38 x 9.16in (HxWxD) (129 x 35 x 233mm) |
| Weight | 12.5oz (0.32kg) |
6-way Relay Control Interface Module for Eclipse HX intercom.
Features:
- 6 Single Pole, Double Throw (SPDT) relay output connections to Eclipse HX
- Fully programmable
- Provides external DC signal light activation or door control
- Eclipse HX Configuration Software (EHX)
| Relays | Six SPDT 24V DC @ 1 Amp |
| Power Requirements | 150mA max from PSU-101 power supply |
| Environmental | Operating Temperature: 32¡ - 104¡F (0¡ - 40¡C) Storage Temperature: -67¡ - 158¡F (-55¡ - 70¡C) Humidity: 90% non-condensing |
| Dimensions | 5.06 x 1.38 x 9.16in (HxWxD) (129 x 35 x 233mm) |
| Weight | 12.5oz (0.32kg) |
