Clear-Com RM-702 Two-Channel Headset / Speaker Remote Station
Clear-Com RM-702 Two-Channel Headset / Speaker Remote Station
DALE SKU # CLEA-RM702

Clear-Com RM-702 Two-Channel Headset / Speaker Remote Station

Sale price$1,775.00

  • Availability:

    In Stock

  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

    • LET OUR TEAM OF EXPERTS ASSIST YOU

    Call Us Chat With Us

    Description

    The RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control. The RM-702 is powered directly from the intercom line and requires no external AC power.

    Features:

    • Selectable one- or two-channel communication
    • Momentary/Latching talk buttons
    • Individual call buttons
    • Visual and audible call signaling
    • Balanced audio input with program interrupt (IFB)
    • Hot mic and line-level outputs
    • Stage announce output with relay
    • Built-in speaker
    Panel Microphone InputInput Type : ElectretInput Impedance:>=2KΩMic Limiter Threshold: 0dBu ±3dBMic Limiter Range:>= 20dB
    Headset Microphone Input

    		Input Type: DynamicInput Impedance:>= 1KΩMic Limiter Threshold: 0dBu ± 3dBMic Limiter Range:>= 15dB
    Program Line InputMaximum Level beforeClipping:>= 20dBuInput Impedance:>= 5KΩ

    Headset OutputLoad Impedance:>= 8ΩOutput Impedance: <= 25ΩOutput Limiter Threshold: +5dBu ± 3dBMaximum Output Levelbefore Distortion:>= 17dBu
    Speaker OutputLoad Impedance:>= 4ΩMax Output Level before1% Distortion: 20dBu ± 2dBu
    Party Line OutputOff Noise: < -74dBuOutput Impedance:>10KΩ
    Party Line InputCrosstalk: < -60dBMax level before Clipping:>= 12dBuSidetone Null Capability:> 25dB
    Stage Announce/Balanced Line OutType: BalancedOutput Impedance:>= 200ΩLoad Impedance:>= 600Ω
    IFB/Hot MicType: UnbalancedOutput Impedance: 180ΩLoad Impedance:>= 600Ω
    Frequency ResponsePanel Mic - Party Line: 600 - 10KHz ± 3dBHeadset Mic - Party Line: 200 - 12KHz ± 3dBHeadset Mic - Line Out: 200 - 12KHz ± 3dBProgram Input - Party Line: 100 - 17KHz ± 3dBProgram Input - Headset Out: 200 - 10KHz ± 3dBProgram Input - Speaker Out: 300 - 10KHz ± 3dBParty Line - Headset Out: 200 - 10KHz ± 3dBParty Line - Speaker Out: 300 - 10KHz ± 3dB
    Max DistortionPanel Mic - Party Line: <= 0.5%Headset Mic - Party Line: <= 0.5%Headset Mic - Line Out: <= 0.5%Program Input - Party Line: <= 0.2%Program Input - Headset Out: <= 0.2%Program Input - Speaker Out: <= 0.5%Party Line - Headset Out: <= 0.2%Party Line - Speaker Out: <= 0.5%
    NoisePanel Mic - Party Line: < -65dBuHeadset Mic - Party Line: < -70dBuHeadset Mic - Line Out: < -55dBuProgram Input - Party Line: < -85dBuProgram Input - Headset Out: < -60dBuProgram Input - Speaker Out: < -60dBuParty Line - Headset Out: < -50dBuParty Line - Speaker Out: < -50dBu
    Max GainPanel Mic - Party Line:>= 37dBHeadset Mic - Party Line: 41dB ± 2dBHeadset Mic - Hot Mic Out: 55dB ± 3dBHeadset Mic - Announce Out: 55dB ± 3dBProgram Input - Party Line:>= -16dBProgram Input - Headset Out:>= 18dBProgram Input - Speaker Out:>= 24dBParty Line - Headset Out:>= 34dBParty Line - Speaker Out:>= 40dB
    Min GainPanel Mic - Party Line: <= 25dB

    Power

    		Input Voltage Range: 20-30 VDCInput Current (Idle): <= 90mAInput Current (Max): <=110mA

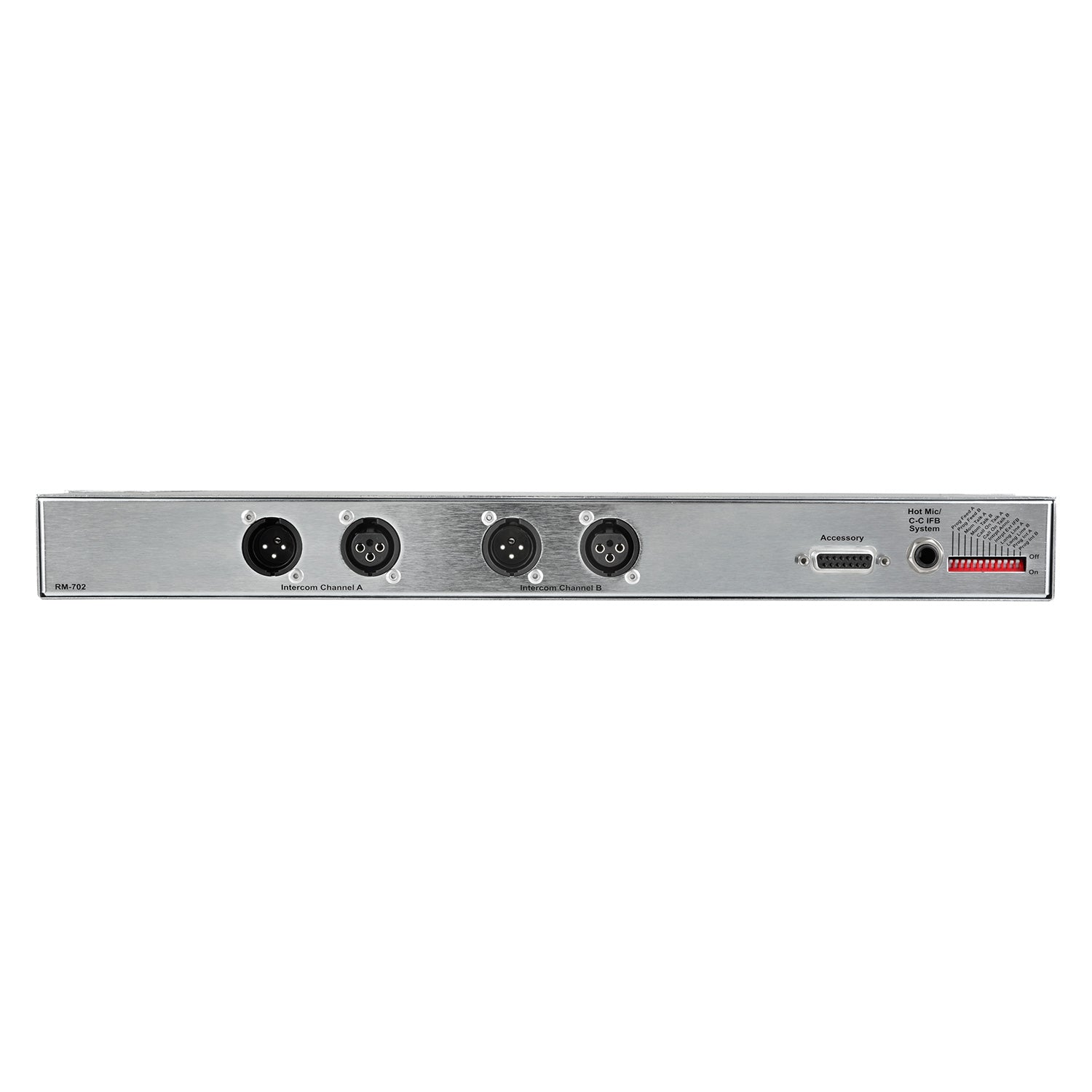

    Rear Panel ConnectorsIntercom: (2) XLR-3M(1 per channel)(2) XLR-3F(1 per channel)Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm)phone jackAccessory: (1) DB-15F

    Rear Panel Controls(12) Option switches
    Front Panel ConnectorsPanel Mic: (1) 1/4 in. (0.64 cm)panel mounting jackHeadset: (1) XLR-4M

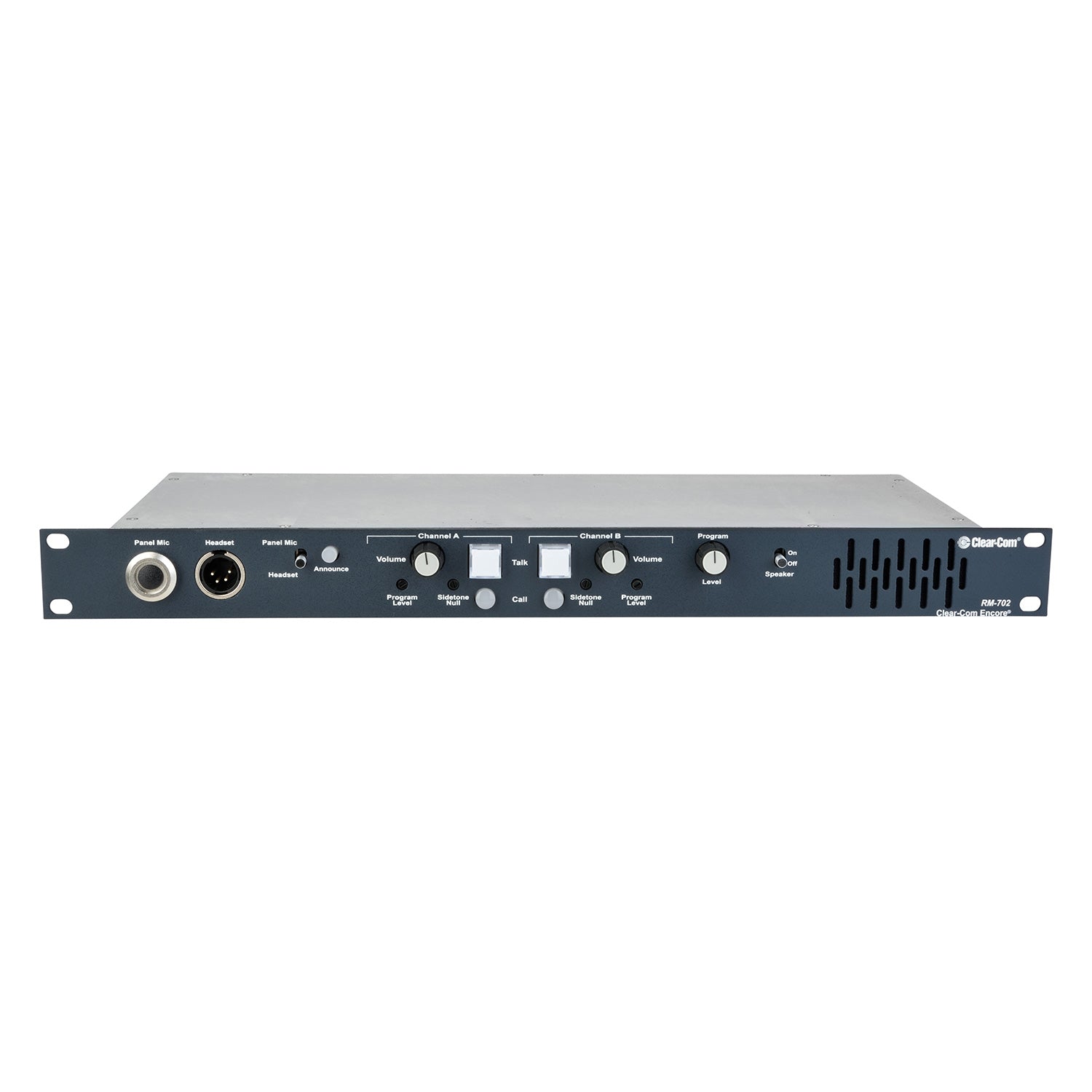

    Front Panel Controls / Indicators(1) Panel / headset mic switch(1) Announce button(2) Program send level controls(1) Program monitor level control(2) Listen controls(2) Sidetone null controls(2) Talk buttons(2) Call buttons(1) Speaker ON-OFF switch
    Environmental32 - 122˚F (0 - 50˚C)
    Dimensions19 in. W x 1.75 in. H x 7.0 in. D(483 mm x 44.5 mm x 178 mm)
    Weight5.2 lbs. (2.36 Kg)

    The RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control. The RM-702 is powered directly from the intercom line and requires no external AC power.

    Features:

    • Selectable one- or two-channel communication
    • Momentary/Latching talk buttons
    • Individual call buttons
    • Visual and audible call signaling
    • Balanced audio input with program interrupt (IFB)
    • Hot mic and line-level outputs
    • Stage announce output with relay
    • Built-in speaker
    Panel Microphone InputInput Type : ElectretInput Impedance:>=2KΩMic Limiter Threshold: 0dBu ±3dBMic Limiter Range:>= 20dB
    Headset Microphone Input

    		Input Type: DynamicInput Impedance:>= 1KΩMic Limiter Threshold: 0dBu ± 3dBMic Limiter Range:>= 15dB
    Program Line InputMaximum Level beforeClipping:>= 20dBuInput Impedance:>= 5KΩ

    Headset OutputLoad Impedance:>= 8ΩOutput Impedance: <= 25ΩOutput Limiter Threshold: +5dBu ± 3dBMaximum Output Levelbefore Distortion:>= 17dBu
    Speaker OutputLoad Impedance:>= 4ΩMax Output Level before1% Distortion: 20dBu ± 2dBu
    Party Line OutputOff Noise: < -74dBuOutput Impedance:>10KΩ
    Party Line InputCrosstalk: < -60dBMax level before Clipping:>= 12dBuSidetone Null Capability:> 25dB
    Stage Announce/Balanced Line OutType: BalancedOutput Impedance:>= 200ΩLoad Impedance:>= 600Ω
    IFB/Hot MicType: UnbalancedOutput Impedance: 180ΩLoad Impedance:>= 600Ω
    Frequency ResponsePanel Mic - Party Line: 600 - 10KHz ± 3dBHeadset Mic - Party Line: 200 - 12KHz ± 3dBHeadset Mic - Line Out: 200 - 12KHz ± 3dBProgram Input - Party Line: 100 - 17KHz ± 3dBProgram Input - Headset Out: 200 - 10KHz ± 3dBProgram Input - Speaker Out: 300 - 10KHz ± 3dBParty Line - Headset Out: 200 - 10KHz ± 3dBParty Line - Speaker Out: 300 - 10KHz ± 3dB
    Max DistortionPanel Mic - Party Line: <= 0.5%Headset Mic - Party Line: <= 0.5%Headset Mic - Line Out: <= 0.5%Program Input - Party Line: <= 0.2%Program Input - Headset Out: <= 0.2%Program Input - Speaker Out: <= 0.5%Party Line - Headset Out: <= 0.2%Party Line - Speaker Out: <= 0.5%
    NoisePanel Mic - Party Line: < -65dBuHeadset Mic - Party Line: < -70dBuHeadset Mic - Line Out: < -55dBuProgram Input - Party Line: < -85dBuProgram Input - Headset Out: < -60dBuProgram Input - Speaker Out: < -60dBuParty Line - Headset Out: < -50dBuParty Line - Speaker Out: < -50dBu
    Max GainPanel Mic - Party Line:>= 37dBHeadset Mic - Party Line: 41dB ± 2dBHeadset Mic - Hot Mic Out: 55dB ± 3dBHeadset Mic - Announce Out: 55dB ± 3dBProgram Input - Party Line:>= -16dBProgram Input - Headset Out:>= 18dBProgram Input - Speaker Out:>= 24dBParty Line - Headset Out:>= 34dBParty Line - Speaker Out:>= 40dB
    Min GainPanel Mic - Party Line: <= 25dB

    Power

    		Input Voltage Range: 20-30 VDCInput Current (Idle): <= 90mAInput Current (Max): <=110mA
    Rear Panel ConnectorsIntercom: (2) XLR-3M(1 per channel)(2) XLR-3F(1 per channel)Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm)phone jackAccessory: (1) DB-15F

    Rear Panel Controls(12) Option switches
    Front Panel ConnectorsPanel Mic: (1) 1/4 in. (0.64 cm)panel mounting jackHeadset: (1) XLR-4M
    Front Panel Controls / Indicators(1) Panel / headset mic switch(1) Announce button(2) Program send level controls(1) Program monitor level control(2) Listen controls(2) Sidetone null controls(2) Talk buttons(2) Call buttons(1) Speaker ON-OFF switch
    Environmental32 - 122˚F (0 - 50˚C)
    Dimensions19 in. W x 1.75 in. H x 7.0 in. D(483 mm x 44.5 mm x 178 mm)
    Weight5.2 lbs. (2.36 Kg)
