Description
The RS-701 is a single channel wired beltpack with an XLR-3 line connector and XLR-4M headset connector that combines high headroom with low-noise audio. The RS-701's wide dynamic range and audio contouring enable intelligible voice communication with the Clear-Com Sound from quiet to noisy environments.
The RS-701 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.
| Microphone Pre-Amplifier | Mic to Line (without limiter acting) Frequency Response: 280 _ 15k Hz ± 3dB Microphone output to line _ Audio Level (-50dBm Electret input): -9dBm Microphone output to line _ Distortion: <0.1% Microphone output to line _ Signal to Noise:>65dB Clear-Com Sound: Yes |
| Headphone Amplifier | Frequency Response _ Line to Headphone: 150 _ 20k Hz ± 3dB Headphone input from line _ Audio Level (-9dBm Electret input): 3.5dBm Headphone input from line _ Distortion: <0.5% Headphone input from line _ Signal to Noise:>50dB Earphone to Mic _ Crosstalk:>80dB Sidetone _ Adjustment Range (-80db mic input):>45dB |

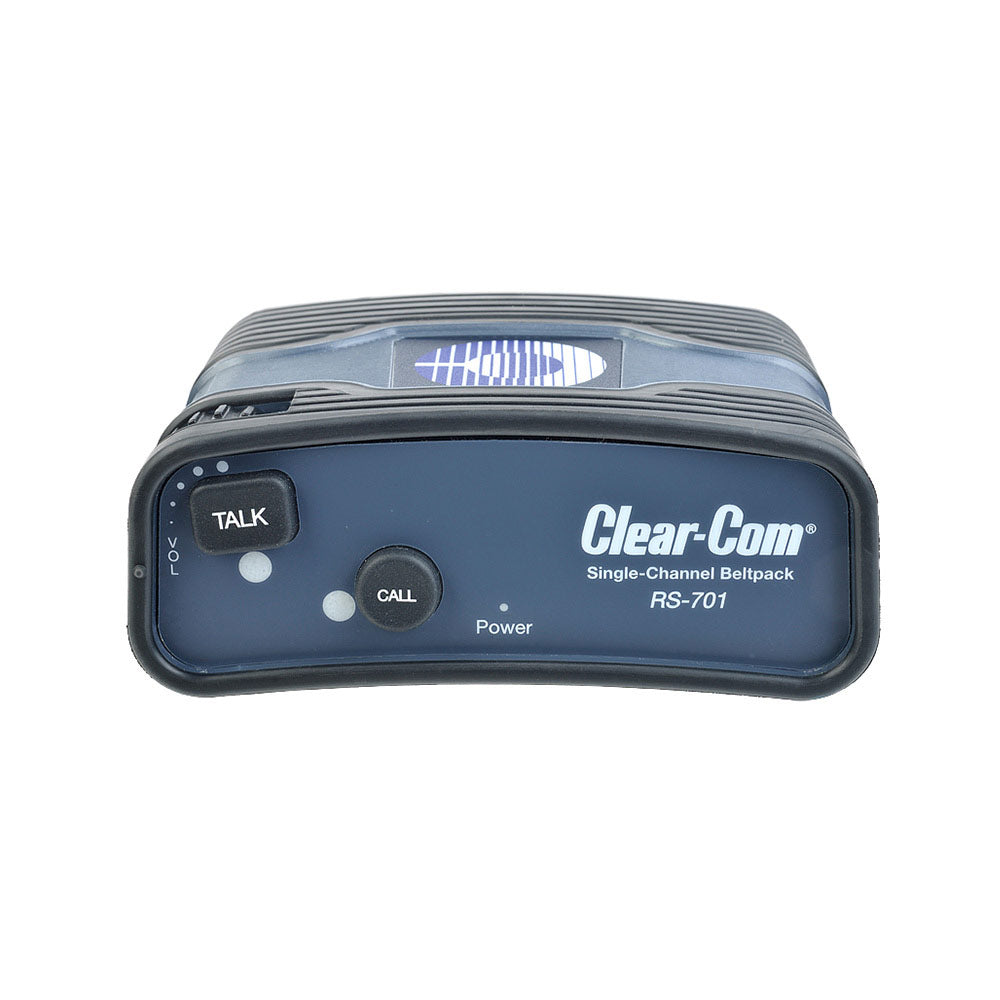

| Keypad Indicators | Power: Green LED Talk: Green LED Call: Orange LED |

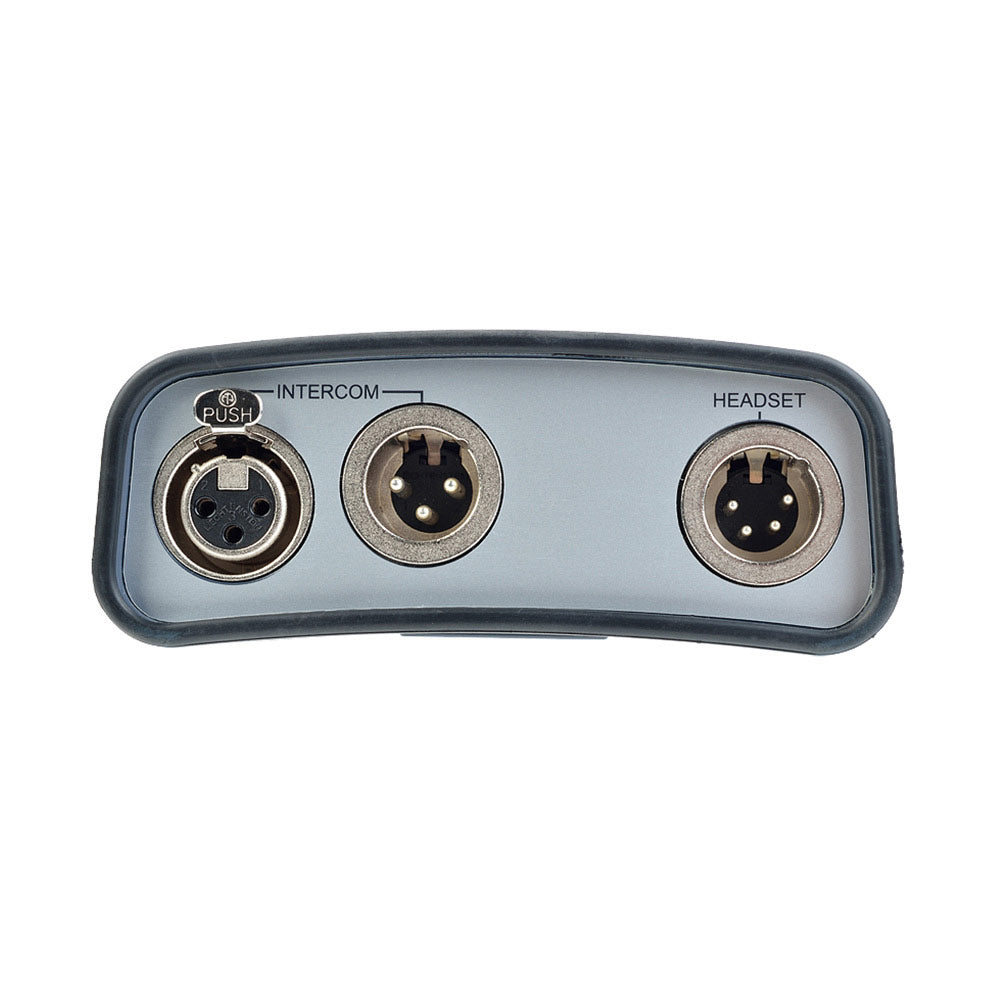

| Connectors | Intercom Line: (2) 3-pin XLR_M_Fæ Ch. 1 2-Wire Intercom Channel Pin 1: Common; Pin 2: PL Power (+28VDC); Pin 3: Line (Audio) Headset: 4-pin XLR_Mæ Headset Connector Pin 1: Mic - (Mic Common); Pin 2: Mic +; Pin 3: Spkr-; Pin 4: Spkr+ (&0.5*VCCDC Supply between Pin 4 / Pin 1) |
| Power Requirements | Voltage input range: 12 MIN - 30 MAX VDC Current (all inputs off): ~12mA MAX Call Voltages _ Call Voltage: 16.5V dc Call Voltages _ Min Call Voltage needed: 3.3V |
| Environmental | Operating Temp Range: 0žC - 70žC (32žF - 158žF) Storage Temp Range: 0žC - 70žC (32žF - 158žF) Relative Humidity: 0 - 90% non condensing |
| Dimensions | 3.4in H x 4.5in W x 1.7in D (86.4 x 114.3 x 43.2 mm) |
| Weight | 0.66 lbs (0.30 kg) |
The RS-701 is a single channel wired beltpack with an XLR-3 line connector and XLR-4M headset connector that combines high headroom with low-noise audio. The RS-701's wide dynamic range and audio contouring enable intelligible voice communication with the Clear-Com Sound from quiet to noisy environments.
The RS-701 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.
| Microphone Pre-Amplifier | Mic to Line (without limiter acting) Frequency Response: 280 _ 15k Hz ± 3dB Microphone output to line _ Audio Level (-50dBm Electret input): -9dBm Microphone output to line _ Distortion: <0.1% Microphone output to line _ Signal to Noise:>65dB Clear-Com Sound: Yes |
| Headphone Amplifier | Frequency Response _ Line to Headphone: 150 _ 20k Hz ± 3dB Headphone input from line _ Audio Level (-9dBm Electret input): 3.5dBm Headphone input from line _ Distortion: <0.5% Headphone input from line _ Signal to Noise:>50dB Earphone to Mic _ Crosstalk:>80dB Sidetone _ Adjustment Range (-80db mic input):>45dB |
| Keypad Indicators | Power: Green LED Talk: Green LED Call: Orange LED |
| Connectors | Intercom Line: (2) 3-pin XLR_M_Fæ Ch. 1 2-Wire Intercom Channel Pin 1: Common; Pin 2: PL Power (+28VDC); Pin 3: Line (Audio) Headset: 4-pin XLR_Mæ Headset Connector Pin 1: Mic - (Mic Common); Pin 2: Mic +; Pin 3: Spkr-; Pin 4: Spkr+ (&0.5*VCCDC Supply between Pin 4 / Pin 1) |
| Power Requirements | Voltage input range: 12 MIN - 30 MAX VDC Current (all inputs off): ~12mA MAX Call Voltages _ Call Voltage: 16.5V dc Call Voltages _ Min Call Voltage needed: 3.3V |
| Environmental | Operating Temp Range: 0žC - 70žC (32žF - 158žF) Storage Temp Range: 0žC - 70žC (32žF - 158žF) Relative Humidity: 0 - 90% non condensing |
| Dimensions | 3.4in H x 4.5in W x 1.7in D (86.4 x 114.3 x 43.2 mm) |
| Weight | 0.66 lbs (0.30 kg) |
