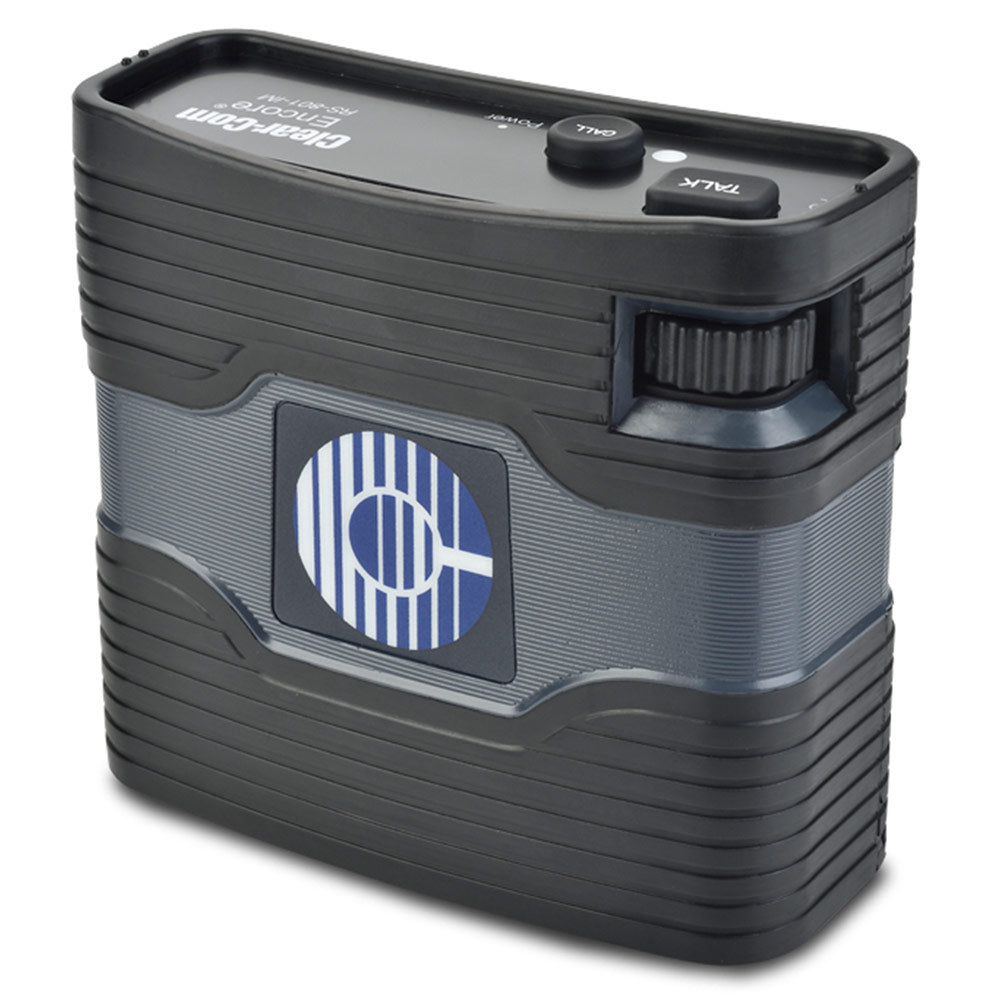

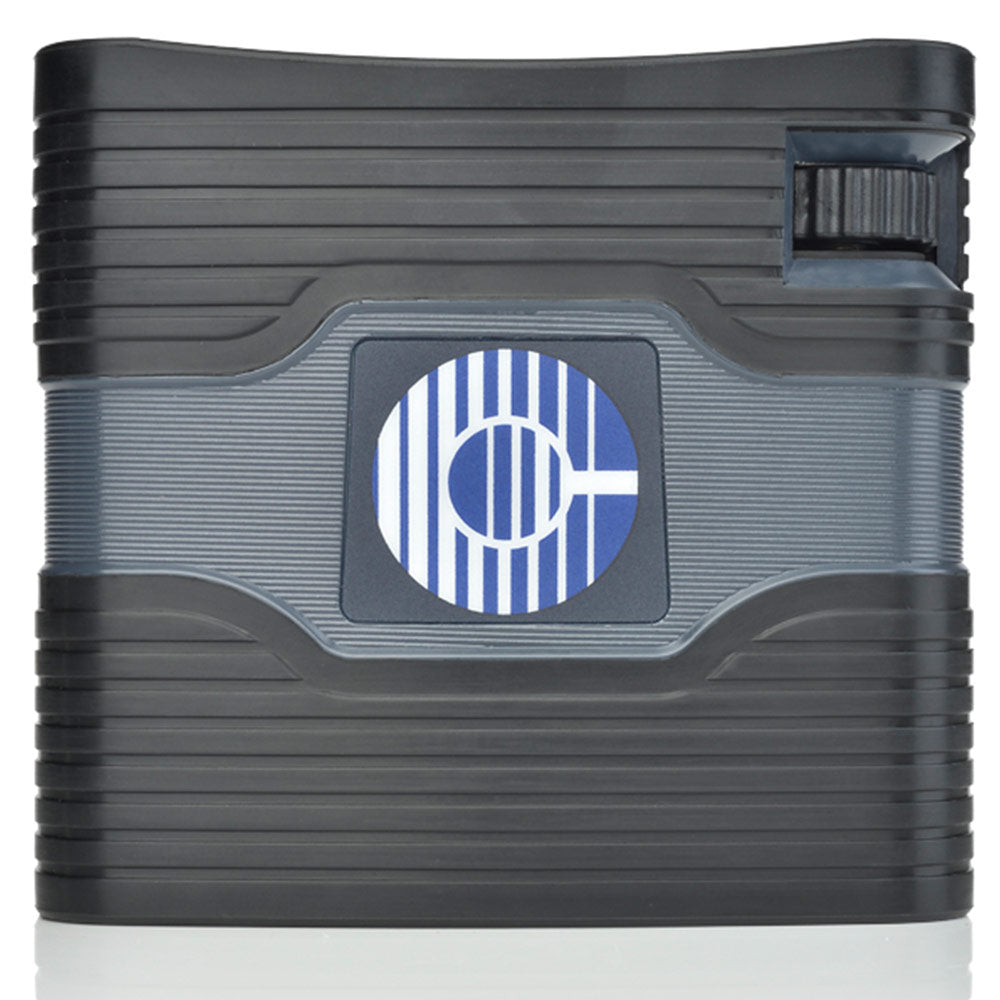

Clear-Com RS-801-IM - Single-Channel Wired Beltpack for Encore Series Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RS-801-IM is a single-channel analog beltpack that can carry power and audio through the XLR-3 line connector.
Features:
- IP53 environmental rating for weather-proofing
- Sealed for salt-mist and humidity
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- XLR-3 line connectors for two-channel + Program Audio
- Consealed, programmable DIP Switches
- Low operating current for more beltpack daisy-chaining
- Rugged and strong construction
- "Clear-Com Sound" for intelligible audio
| Microphone Pre-Amplifier Mic to Line (without limiter acting) |
Frequency Response: 280 Ð 15kHz ± 3dB Microphone output to line Ð Audio Level (-50dBm Electret input): -9dBm Microphone output to line Ð Distortion: <0.1% Microphone output to line Ð Signal to Noise: >65dB |
| Headphone Pre-Amplifier | Frequency Response Ð Line to Headphone: 150 Ð 20k Hz ± 3dB Headphone input from line Ð Audio Level (-9dBm Electret input): 3.5dBm Headphone input from line Ð Distortion: <0.5% Headphone input from line Ð Signal to Noise: >50dB Earphone to Mic Ð Crosstalk: >80dB Sidetone Ð Adjustment Range (-80db mic input): >45dB |
| Keypad Indicators | Power: Green LED Talk: Green LED Call: Orange LED |
| Connectors | Intercom Line: (2) 3-pin XLRÐMÐF Ch. 1 2-Wire |
| Intercom Channel | Pin 1: Common Pin 2: PL Power (+28VDC) Pin 3: Line (Audio) Headset: 4-pin XLRÐM |
| Headset Connector | Pin 1: Mic - (Mic Common) Pin 2: Mic + Pin 3: Spkr- Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1) |
| Power Requirements | Input Voltage Range: 12-30V DC Input Current (Idle): <=12mA Input Current (Max): <=28mA |
| Call Voltage | 16.5V DC |
| Minimum Voltage Needed | 3.3V |
| Environmental | |
| Temperature | 32¡F - 140¡F (0¡C - 60¡C) |
| Relative Humidity | 0 - 96%, non-condensing |
| Vibration Frequency Range | 2 - 13.2Hz |
| Amplitude | 1.0mm |
| Peak Value Frequency Range | 13.2 - 100Hz |
| Acceleration Amplitude | 0.7g |
| EMC | DNVGL-CG-0339 - Class A |
| Enclosure | Salt-mist IP-53 |
| Dimensions | 3.4 x 4.5 x 1.7in (HxWxD) (86 x 114 x 43mm) |
| Weight | 10.5oz (0.30kg) |
| Certifications and Compliance | This device complies with part 15 of the FCC Rules. |
| This device complies with European Union CE Mark: | ¥ Electromagnetic Compatibility Directive 2014/30/EU ¥ Low Voltage Directive 2014/35/EU ¥ RoHS Directive 2011/65/EU ¥ Standards: EN 55032, EN 55024, EN 60950-1, EN 50581 |
| This device complies with Maritime Certification: | ¥ Conformity with DNVGL-CG-0339 Edition November 2016 ¥ Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2 ¥ Compass Safety Distance conformity per DNVGL-CG-0339 and IEC 60945 |
The RS-801-IM is a single-channel analog beltpack that can carry power and audio through the XLR-3 line connector.
Features:
- IP53 environmental rating for weather-proofing
- Sealed for salt-mist and humidity
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- XLR-3 line connectors for two-channel + Program Audio
- Consealed, programmable DIP Switches
- Low operating current for more beltpack daisy-chaining
- Rugged and strong construction
- "Clear-Com Sound" for intelligible audio
| Microphone Pre-Amplifier Mic to Line (without limiter acting) |
Frequency Response: 280 Ð 15kHz ± 3dB Microphone output to line Ð Audio Level (-50dBm Electret input): -9dBm Microphone output to line Ð Distortion: <0.1% Microphone output to line Ð Signal to Noise: >65dB |
| Headphone Pre-Amplifier | Frequency Response Ð Line to Headphone: 150 Ð 20k Hz ± 3dB Headphone input from line Ð Audio Level (-9dBm Electret input): 3.5dBm Headphone input from line Ð Distortion: <0.5% Headphone input from line Ð Signal to Noise: >50dB Earphone to Mic Ð Crosstalk: >80dB Sidetone Ð Adjustment Range (-80db mic input): >45dB |
| Keypad Indicators | Power: Green LED Talk: Green LED Call: Orange LED |
| Connectors | Intercom Line: (2) 3-pin XLRÐMÐF Ch. 1 2-Wire |
| Intercom Channel | Pin 1: Common Pin 2: PL Power (+28VDC) Pin 3: Line (Audio) Headset: 4-pin XLRÐM |
| Headset Connector | Pin 1: Mic - (Mic Common) Pin 2: Mic + Pin 3: Spkr- Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1) |
| Power Requirements | Input Voltage Range: 12-30V DC Input Current (Idle): <=12mA Input Current (Max): <=28mA |
| Call Voltage | 16.5V DC |
| Minimum Voltage Needed | 3.3V |
| Environmental | |
| Temperature | 32¡F - 140¡F (0¡C - 60¡C) |
| Relative Humidity | 0 - 96%, non-condensing |
| Vibration Frequency Range | 2 - 13.2Hz |
| Amplitude | 1.0mm |
| Peak Value Frequency Range | 13.2 - 100Hz |
| Acceleration Amplitude | 0.7g |
| EMC | DNVGL-CG-0339 - Class A |
| Enclosure | Salt-mist IP-53 |
| Dimensions | 3.4 x 4.5 x 1.7in (HxWxD) (86 x 114 x 43mm) |
| Weight | 10.5oz (0.30kg) |
| Certifications and Compliance | This device complies with part 15 of the FCC Rules. |
| This device complies with European Union CE Mark: | ¥ Electromagnetic Compatibility Directive 2014/30/EU ¥ Low Voltage Directive 2014/35/EU ¥ RoHS Directive 2011/65/EU ¥ Standards: EN 55032, EN 55024, EN 60950-1, EN 50581 |
| This device complies with Maritime Certification: | ¥ Conformity with DNVGL-CG-0339 Edition November 2016 ¥ Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2 ¥ Compass Safety Distance conformity per DNVGL-CG-0339 and IEC 60945 |
