Clear-Com TW-47 Two-Way Radio Interface for Clear-Com or RTS Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Clear-Com/RTS 2-Way Radio Interface, connects Clear-Com or RTS to any 2-way radio. Compatible with both Clear-Com and RTS®, TW-47 connects virtually any set of walkie-talkies to anyone on the wired partyline intercom; simply use one walkie-talkie as a basestation. The base station radio is keyed from the intercom call signal. Extensive RF and EMI isolation prevents interference from entering the intercom system. Separate transmit and receive level controls are provided, along with audio level and transmitter keying indicators. The stand-alone interface is powered by the intercom line.
Note: Two-way radio must have headset and microphone jacks.
Features
- Interfaces any 2-way radio to a Clear-Com, RTS, or compatible system
- Accepts any walkie-talkie
- Powered by the intercom line
- Easy to interconnect
- Individual transmit and receive level controls
- Bi-color LED audio level indicator
- Small footprint–will fit anywhere
| Line Characteristics | Radio to Partyline Frequency Response: 200-20KHz ± 3dB Partyline to Radio Frequency Response: 200-8KHz ± 3dB |
| Power Requirements | Input Voltage Range: 20-30VDC Quiescent Current: <=40mA Current with Audio: <=50mA Current with Call: <=60mA |

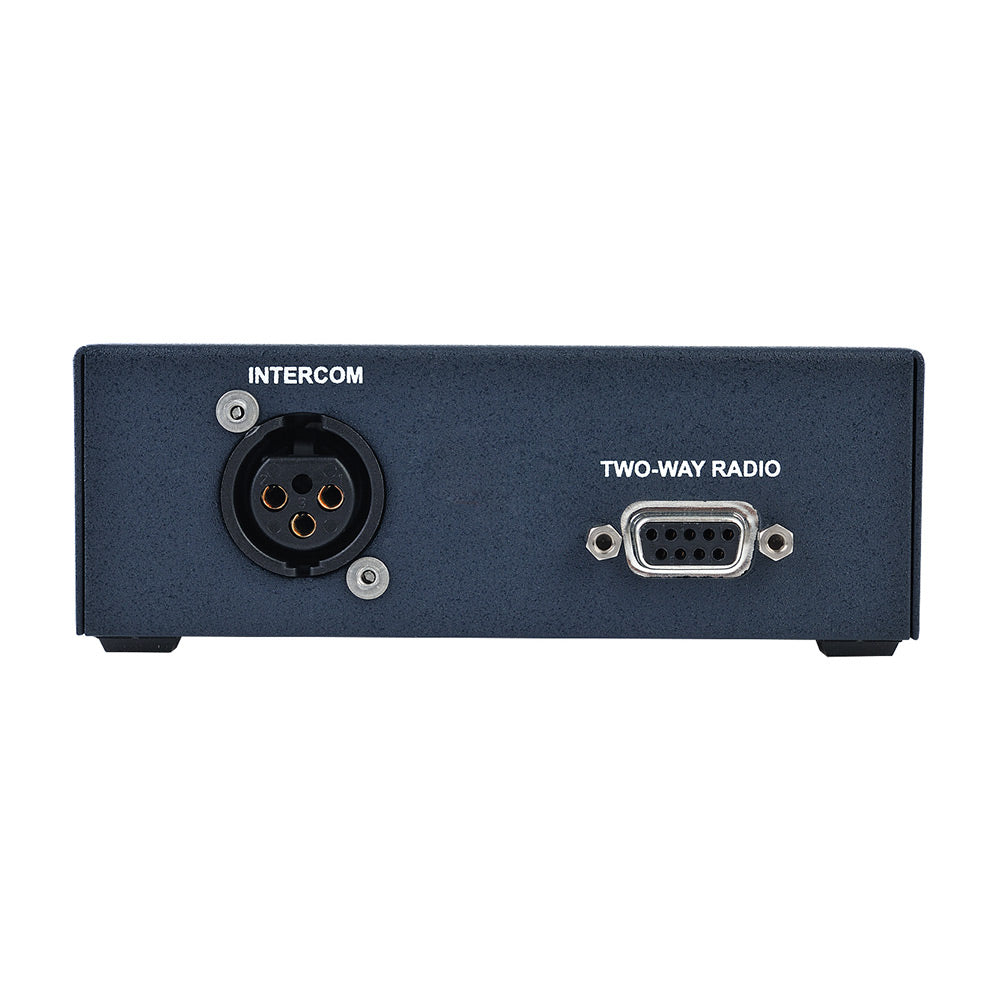

| Rear Panel Connectors | (1) XLR3F (1) DB-9F |

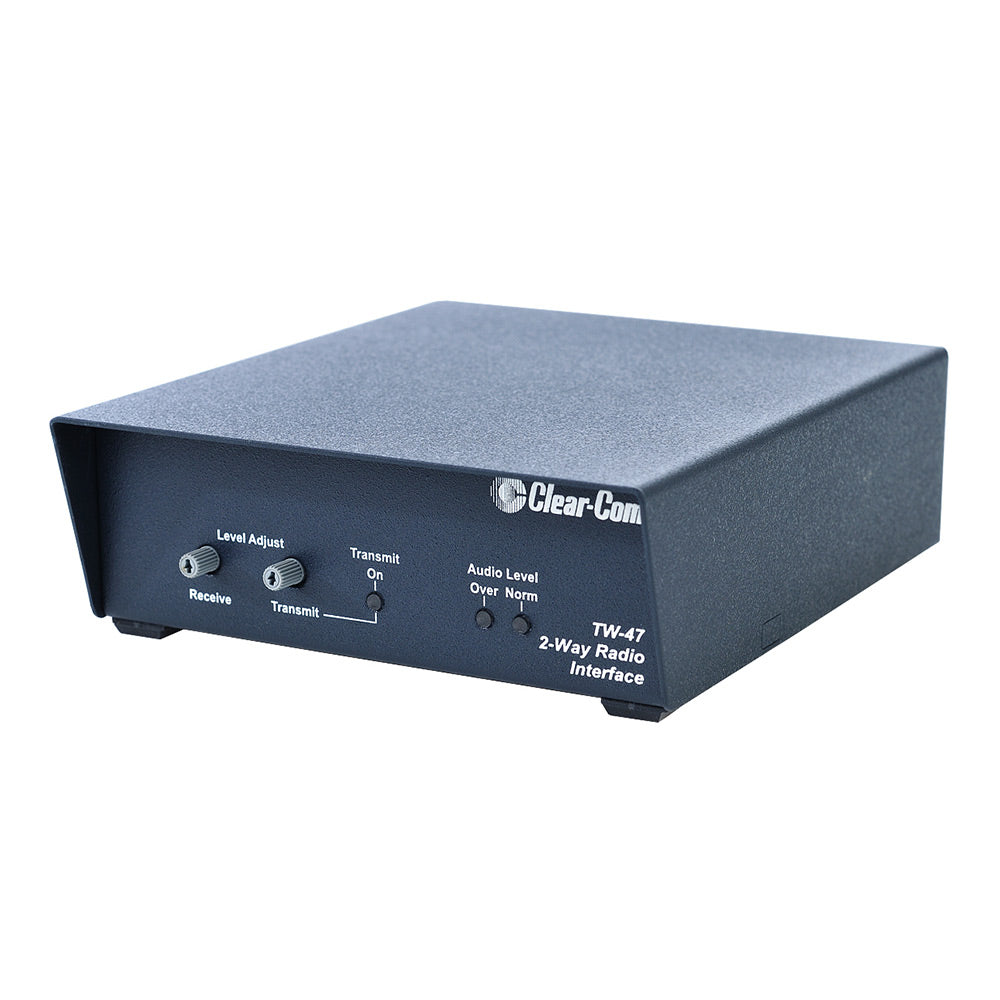

| Front Panel Controls and Indicators | Transmit: (1) Red LED Audio Level Hi: (1) Red LED Audio Level Norm: (1) Green LED Receive Level Adjust: (1) Control Transmit Level Adjust: (1) Control |
| Dimensions | 1.63 in. H x 4.75 in. W x 5.15 in. D (41.4 mm x 121 mm x 131mm) |
| Weight | 1 lb. 4 oz. (0.6 kg) |
Clear-Com/RTS 2-Way Radio Interface, connects Clear-Com or RTS to any 2-way radio. Compatible with both Clear-Com and RTS®, TW-47 connects virtually any set of walkie-talkies to anyone on the wired partyline intercom; simply use one walkie-talkie as a basestation. The base station radio is keyed from the intercom call signal. Extensive RF and EMI isolation prevents interference from entering the intercom system. Separate transmit and receive level controls are provided, along with audio level and transmitter keying indicators. The stand-alone interface is powered by the intercom line.
Note: Two-way radio must have headset and microphone jacks.
Features
- Interfaces any 2-way radio to a Clear-Com, RTS, or compatible system
- Accepts any walkie-talkie
- Powered by the intercom line
- Easy to interconnect
- Individual transmit and receive level controls
- Bi-color LED audio level indicator
- Small footprint–will fit anywhere
| Line Characteristics | Radio to Partyline Frequency Response: 200-20KHz ± 3dB Partyline to Radio Frequency Response: 200-8KHz ± 3dB |
| Power Requirements | Input Voltage Range: 20-30VDC Quiescent Current: <=40mA Current with Audio: <=50mA Current with Call: <=60mA |
| Rear Panel Connectors | (1) XLR3F (1) DB-9F |
| Front Panel Controls and Indicators | Transmit: (1) Red LED Audio Level Hi: (1) Red LED Audio Level Norm: (1) Green LED Receive Level Adjust: (1) Control Transmit Level Adjust: (1) Control |
| Dimensions | 1.63 in. H x 4.75 in. W x 5.15 in. D (41.4 mm x 121 mm x 131mm) |
| Weight | 1 lb. 4 oz. (0.6 kg) |
