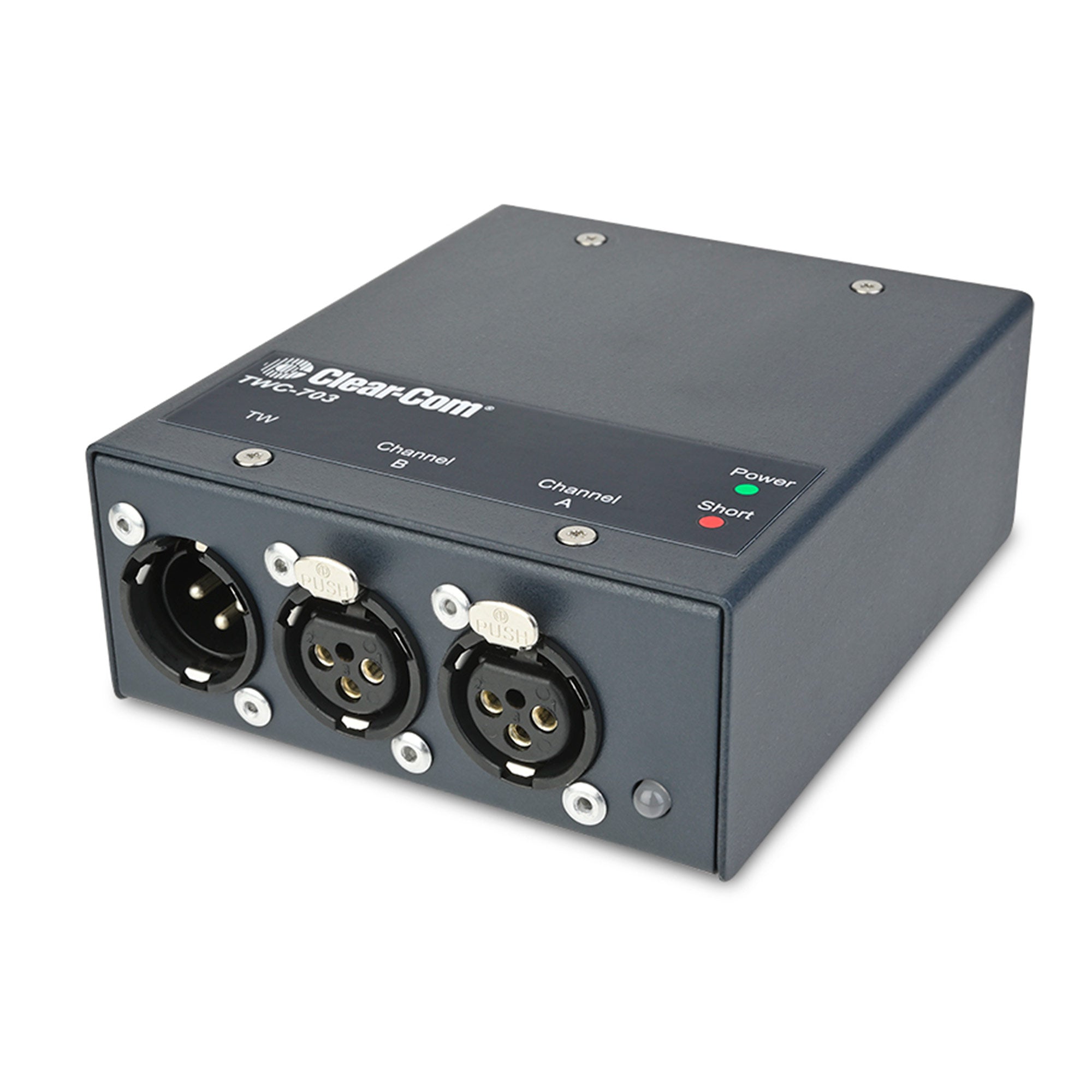

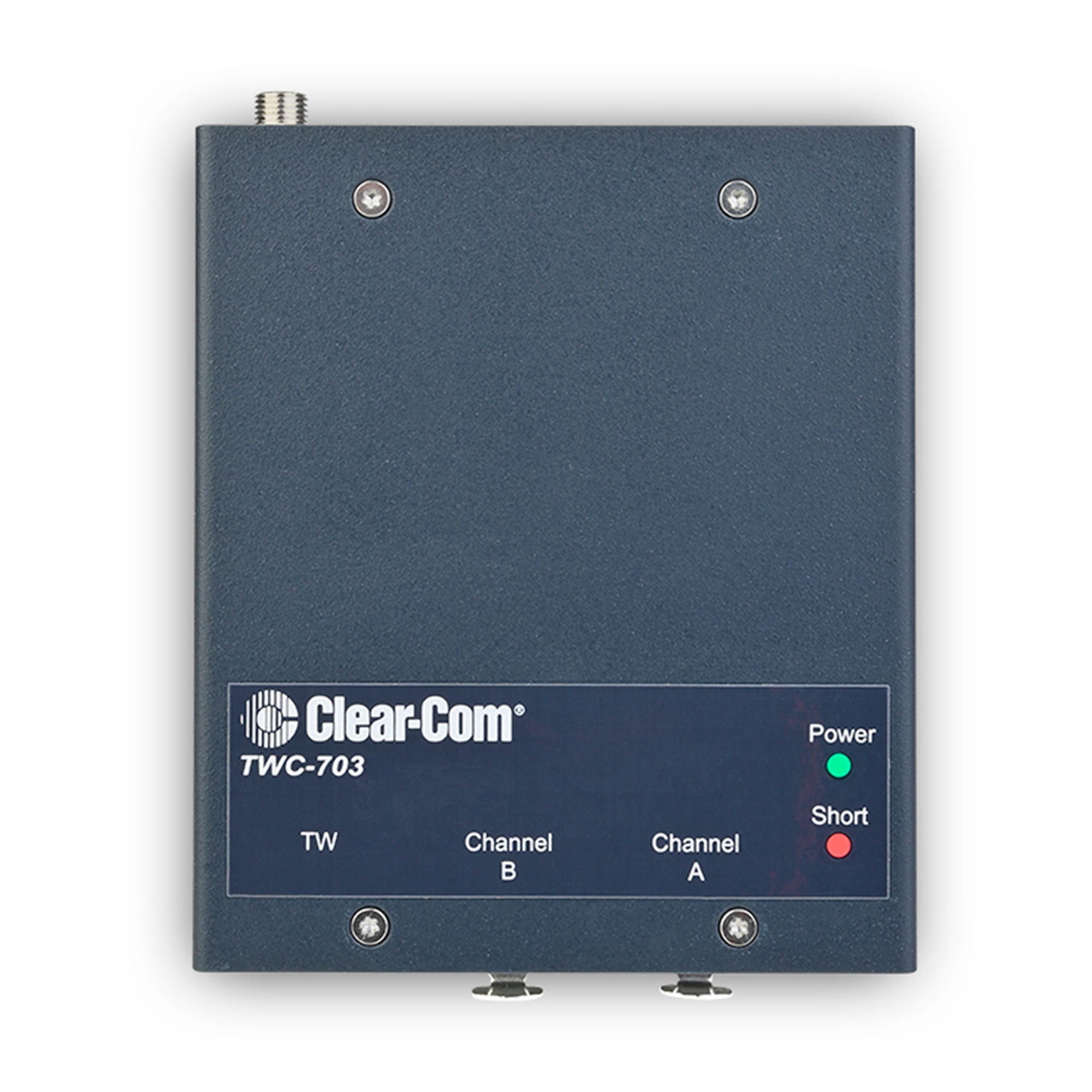

Clear-Com TWC-703 - 2-Channel Analog Partyline to 2-Wire Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
TWC-703 combines two single channels from a Clear-Com partyline system to a TW line, allowing dual channel TW segment to be added to any Clear-Com partyline system. TW connectivity provides the system with the simplicity of standard 3-pin XLR cabling when using TW compatible user stations, such as the RS-703 beltpack.
Features:
- Converts 2 Clear-Com Partyline channels to 1 dual Channel TW Partyline
- Translates Audio and Call signals
- Auto Termination Management
- Auto Power Protection

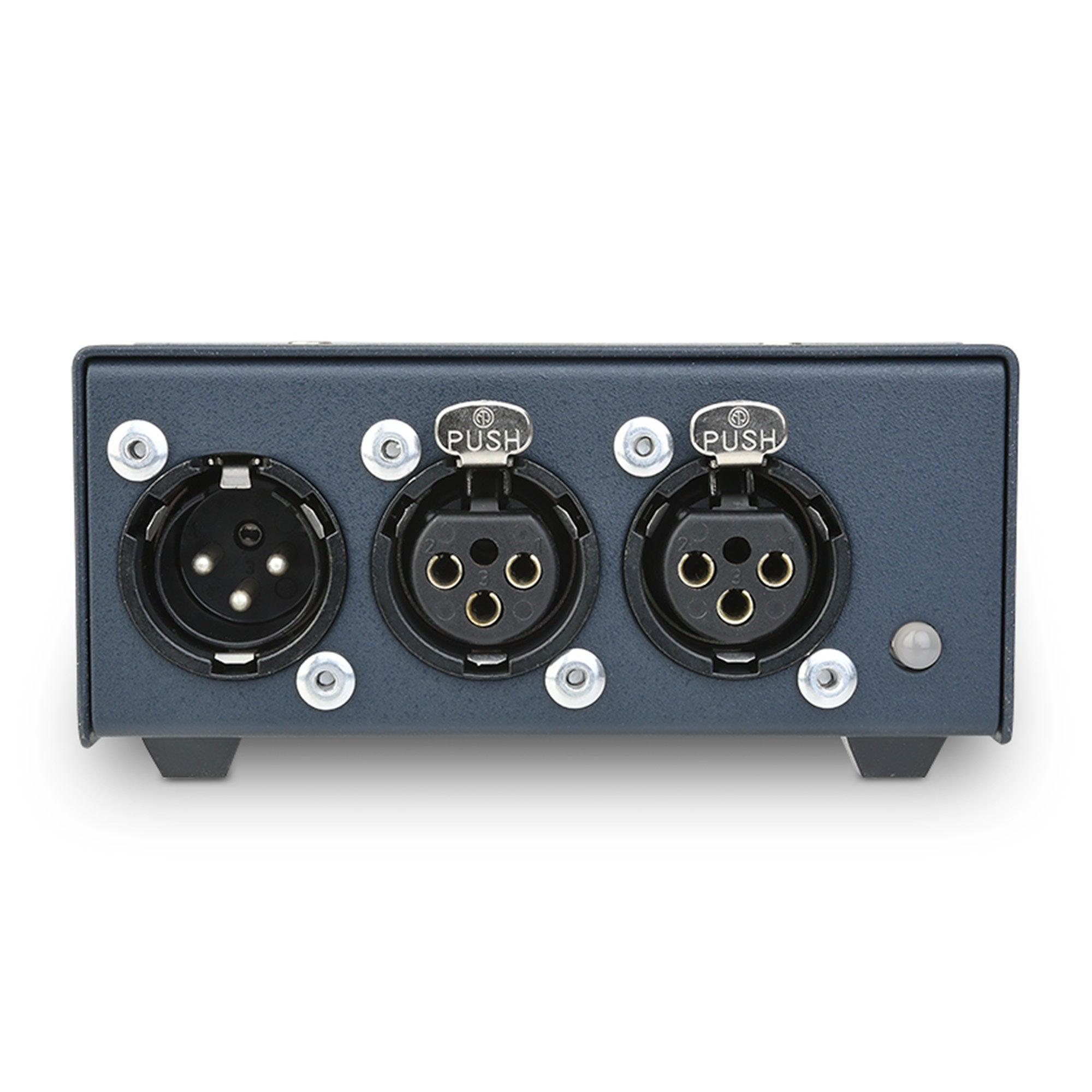

| Front Panel Connectors | (2) Intercom in XLR3F (1) TW out XLR3M (1) Power / Overload Indicator |
| Rear Panel Controls / Indicators | (1) DC Power Connector 2.1mm Co-axial |
| Power Requirements | Input Voltage: 20-30V DC Input Current (Idle): 65mA Input Current (Max): 550mA TW Output Current (Max): 550mA |
| Environmental | 32¡ to 122¡ F (0¡ to 50¡C) |
| Dimensions | 4 x 2 x 5in (WxHxD) (101 x 51 x 127mm) |
| Weight | 1.1lbs (0.503kg) |
TWC-703 combines two single channels from a Clear-Com partyline system to a TW line, allowing dual channel TW segment to be added to any Clear-Com partyline system. TW connectivity provides the system with the simplicity of standard 3-pin XLR cabling when using TW compatible user stations, such as the RS-703 beltpack.
Features:
- Converts 2 Clear-Com Partyline channels to 1 dual Channel TW Partyline
- Translates Audio and Call signals
- Auto Termination Management
- Auto Power Protection
| Front Panel Connectors | (2) Intercom in XLR3F (1) TW out XLR3M (1) Power / Overload Indicator |
| Rear Panel Controls / Indicators | (1) DC Power Connector 2.1mm Co-axial |
| Power Requirements | Input Voltage: 20-30V DC Input Current (Idle): 65mA Input Current (Max): 550mA TW Output Current (Max): 550mA |
| Environmental | 32¡ to 122¡ F (0¡ to 50¡C) |
| Dimensions | 4 x 2 x 5in (WxHxD) (101 x 51 x 127mm) |
| Weight | 1.1lbs (0.503kg) |
