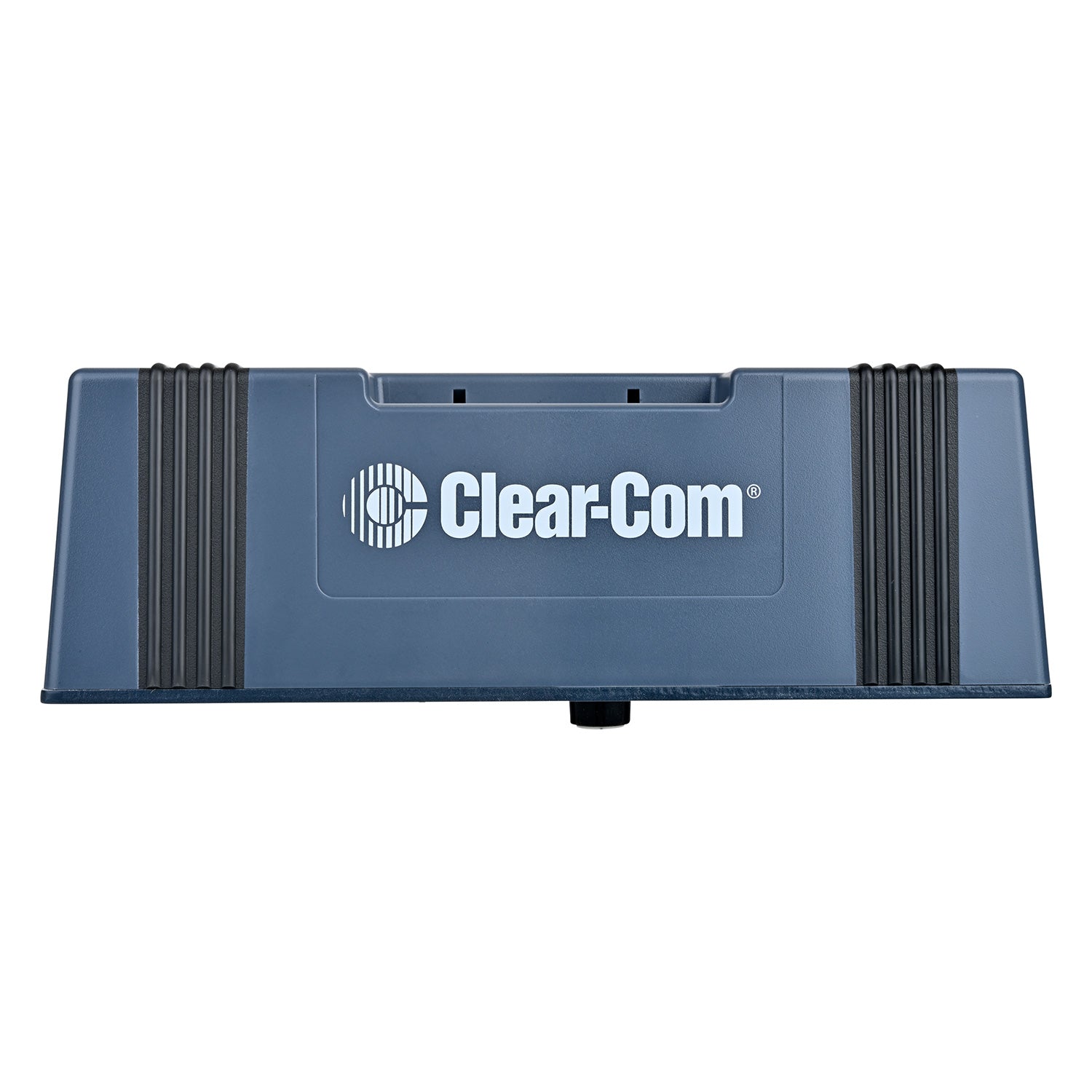

Clear-Com U-BOX-X6 - Mounting Box for KB Series Speaker Stations (Dual Channel)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.
Features:
- Enclosure for KB speaker station
- Permanently installed or portable
- Integrated handles
- Vertical or angled KB installation
- Desktop or wall mount
- VESA 75 mounting option
- Rugged enclosure
- Available wired for single or dual-channel partyline and 4-wire
Available Configurations:
U-BOX-X3:ÊSingle-Channel
U-BOX-X6:ÊDual-Channel
U-BOX-RJ45:ÊRJ45 Four-Wire
| Connectors | U-Box-X3 XLR Partyline: 3-pin XLR-M/F U-Box-X6 XLR Partyline: ÒSwitchcraft-styleÓ* 6-pin XLR-M/F U-Box-RJ45 Four-Wire: etherCON RJ45 Input Power Connector: DC 2.1mm Co-axial |
| Environmental | 32¡ - 158¡F (0 - 70¡C) |

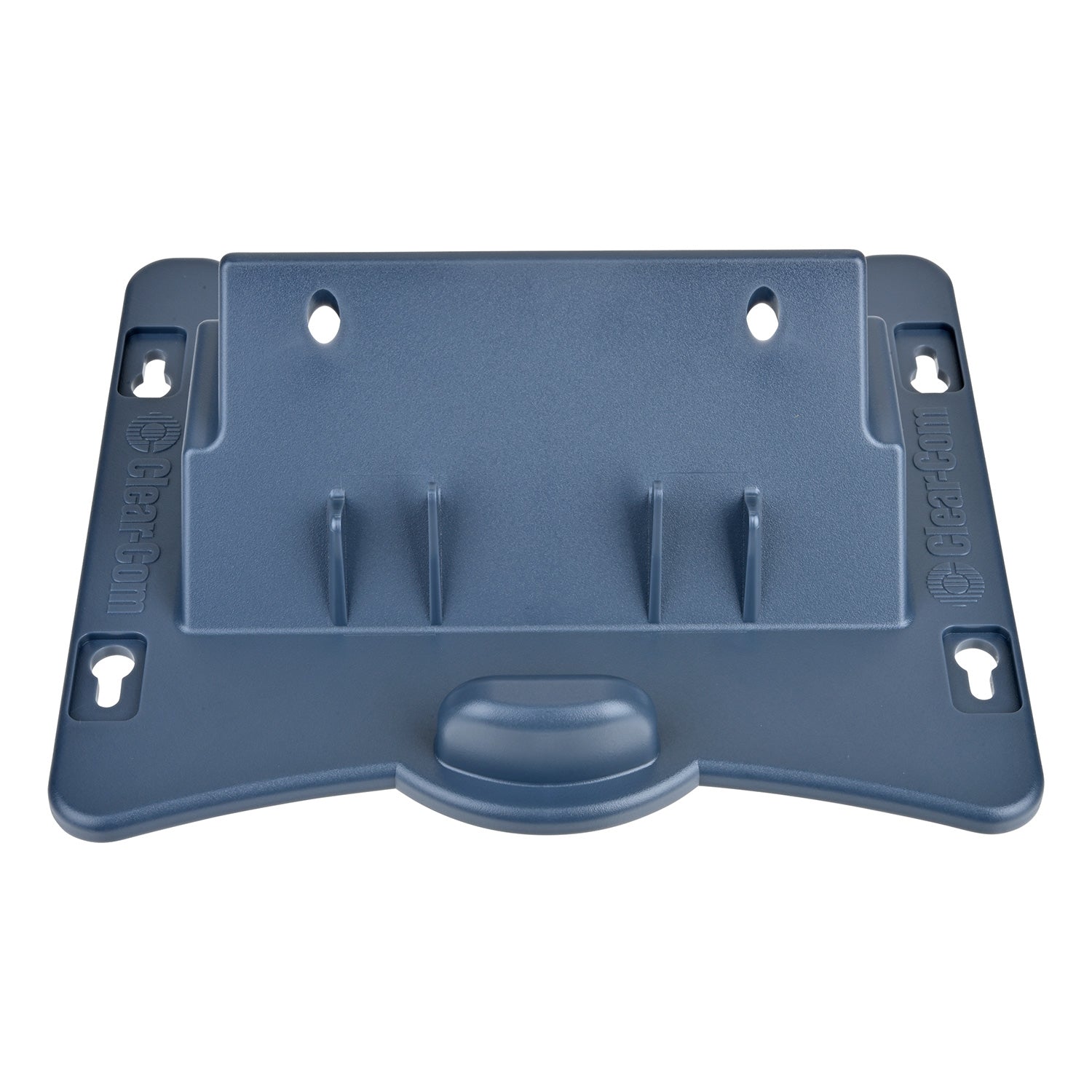

| Mounting | U-Box Keyholes Center-to-Center: 4.0in (101.6mm) Keyhole Diameter: 0.318-0.159in (8.08-4.04mm) VESA Sockets Center-to-Center: 2.95in (75mm) VESA Thread Type: M4x10 Mounting Bracket Keyholes Center-to-Center: 5.9in (149.9mm) |
| Dimensions | U-Box: 4.5 x 8.2 x 2.8in (HxWxD) (113.79 x 208.79 x 70.23mm) U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD) (136.19 x 209.55 x 154.37mm) |
| Weight | U-Box: 0.71lbs (0.32kg) U-Box with Mounting Bracket: 0.90lbs (0.41kg) U-Box with KB Speaker Station: 1.97lbs (0.89kg) |
| *IMPORTANT | XLR Connector Compatibility Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include ÒSÓ in the part number to ensure compatibility. |
The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.
Features:
- Enclosure for KB speaker station
- Permanently installed or portable
- Integrated handles
- Vertical or angled KB installation
- Desktop or wall mount
- VESA 75 mounting option
- Rugged enclosure
- Available wired for single or dual-channel partyline and 4-wire
Available Configurations:
U-BOX-X3:ÊSingle-Channel
U-BOX-X6:ÊDual-Channel
U-BOX-RJ45:ÊRJ45 Four-Wire
| Connectors | U-Box-X3 XLR Partyline: 3-pin XLR-M/F U-Box-X6 XLR Partyline: ÒSwitchcraft-styleÓ* 6-pin XLR-M/F U-Box-RJ45 Four-Wire: etherCON RJ45 Input Power Connector: DC 2.1mm Co-axial |
| Environmental | 32¡ - 158¡F (0 - 70¡C) |
| Mounting | U-Box Keyholes Center-to-Center: 4.0in (101.6mm) Keyhole Diameter: 0.318-0.159in (8.08-4.04mm) VESA Sockets Center-to-Center: 2.95in (75mm) VESA Thread Type: M4x10 Mounting Bracket Keyholes Center-to-Center: 5.9in (149.9mm) |
| Dimensions | U-Box: 4.5 x 8.2 x 2.8in (HxWxD) (113.79 x 208.79 x 70.23mm) U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD) (136.19 x 209.55 x 154.37mm) |
| Weight | U-Box: 0.71lbs (0.32kg) U-Box with Mounting Bracket: 0.90lbs (0.41kg) U-Box with KB Speaker Station: 1.97lbs (0.89kg) |
| *IMPORTANT | XLR Connector Compatibility Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include ÒSÓ in the part number to ensure compatibility. |
