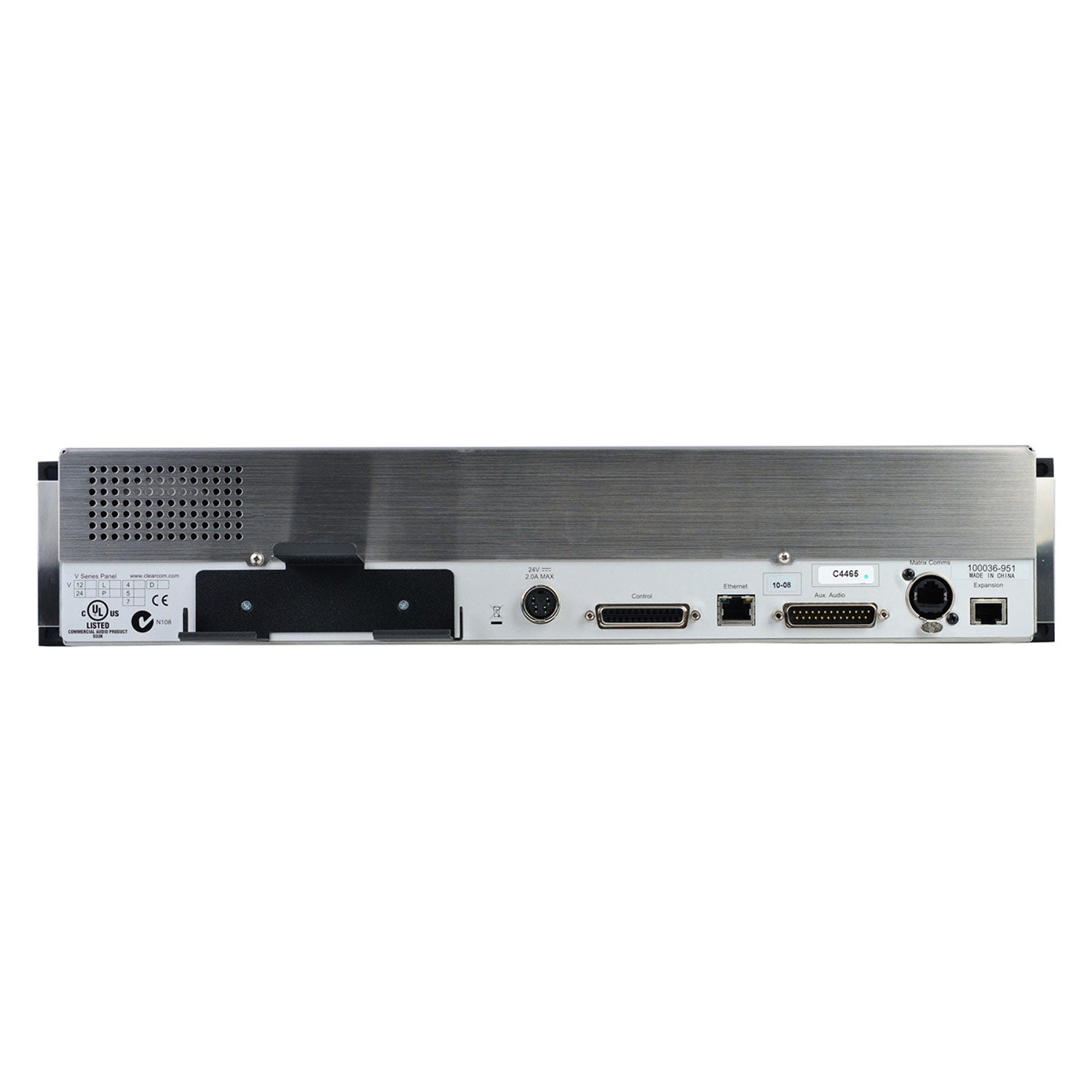

Clear-Com V12LDDX4Y-IP - Desktop 12-Lever Intercom Key Panel for Eclipse HX or Arcadia

The V-Series Lever Panels are user control key-panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Lever key-panels feature one display window per ÒkeyÓ and provide Listen (up) and Talk (down) operation for the displayed label. Latching and momentary operation is software configurable. The Listen (up) path does not have to be the same as the Talk (down) path. A Talk/Listen LED status indicator is provided below the display window. When a talk path is active (down) the status will indicate a red color, and when a listen path is active (up) the status will indicate a green color.

Features:

• 12 lever keys and 24 up/down level control buttons for use with Eclipse HX matrix frames
• Individual up/down audio level controls for personal mixes
• Yellow OLEDs for better contrast and visibility
• Listen Again function to replay calls
• Fast key assign from pre-defined scroll lists and/or keypad
• International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
• Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
• Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
• Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

Display
All V-Series panels have international alpha-numerical, 10-character, yellow OLED displays, providing high-contrast for dim environments, as well as greater visibility in bright sunlight. The yellow OLEDÕs provide extended lifetime and reduce the overall cost of ownership for each panel. All Eclipse HX compatible V-Series panels include a vertical font option for vertical mount applications.

Functionality
There are four types of Lever key-panels: 1RU (12-key), 2RU (32-key), Desktop (12-key) and Expansion (16-key). Each lever key has associated up/down audio level control buttons. A menu button gives the user access (if allowed) to make changes to the panel functions, system assignment and set up. A shift key gives access to up to 8 additional pages. Panels include rear audio connections for external audio with options, hot mic out and GPIOs for footswitches and push-to-talk keying.

Advance Digital Signal Processing (DSP) allows for centralized changes to audio routing and effects. The panelsÕ ÒListen AgainÓ feature allows recent incoming audio to be replayed.
