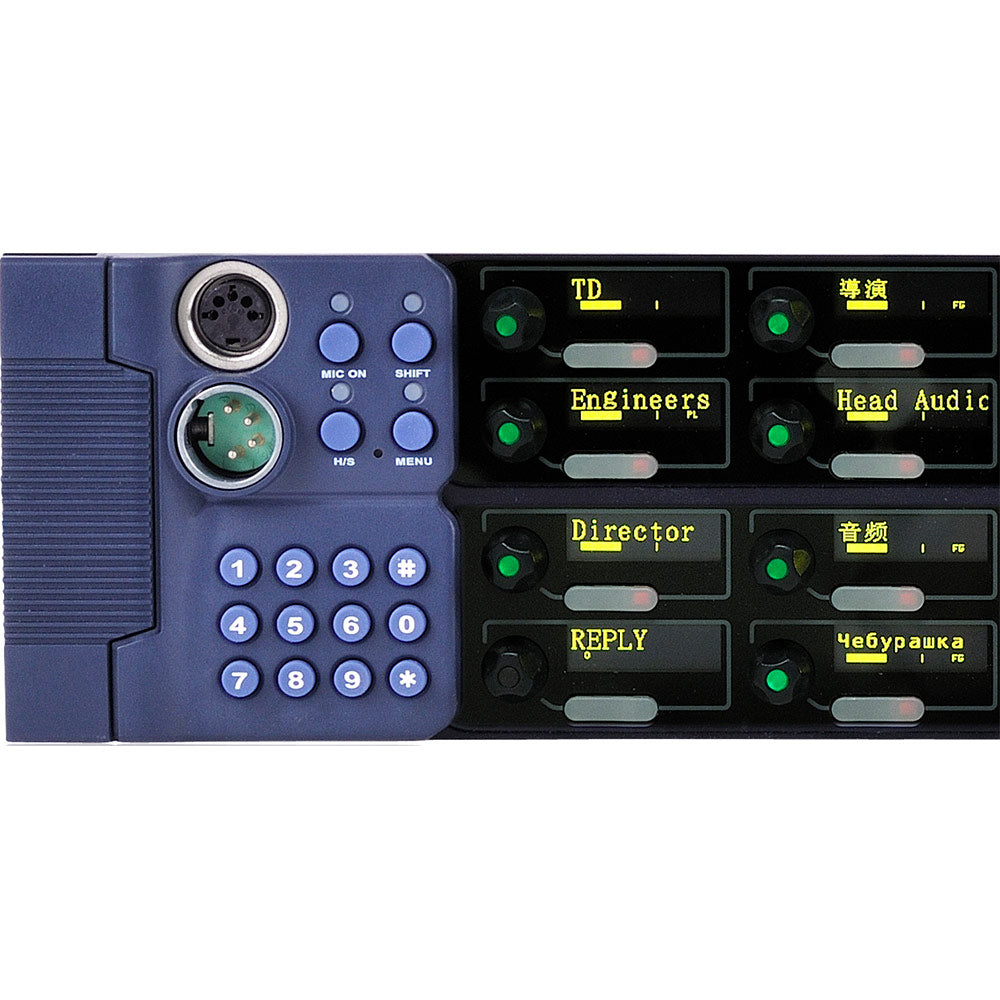

Clear-Com V12RDDX4 - Desktop 12-Rotary Control Intercom Panel for Eclipse HX or Arcadia

The V-Series Rotary Panels are user control key-panels that operate in conjunction with the Eclipse and Eclipse HX Digital Matrix Systems. Rotary key-panels feature one display window per ÒkeyÓ and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.

All Eclipse HX-compatible V-Series key-panels include a vertical font option for vertical mount application. Keys on the Rotary panels can be color-coded for easily-identifiable, color tallies: red keys for partyline, 4-wire or other panels; blue keys for phone lines; and purple keys for IFB.

Features:

• 12 Talk pushbuttons and 12 Listen rotary switches for use with Eclipse HX matrix frames
• Individual rotary audio level controls for personal mixes
• Yellow OLEDs for better contrast and visibility
• Color-coded keys for easily identifiable color tallies
• Listen Again function to replay calls
• Fast key assign from pre-defined scroll lists and/or keypad
• International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
• Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
• Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
• Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

Display
All V-Series key-panels have international alpha-numerical 10-character yellow OLED displays, providing high-contrast for dim environments, as well as greater visibility in bright sunlight. The yellow OLEDÕs provide extended lifetime and reduce the overall cost of ownership for each panel.

Functionality

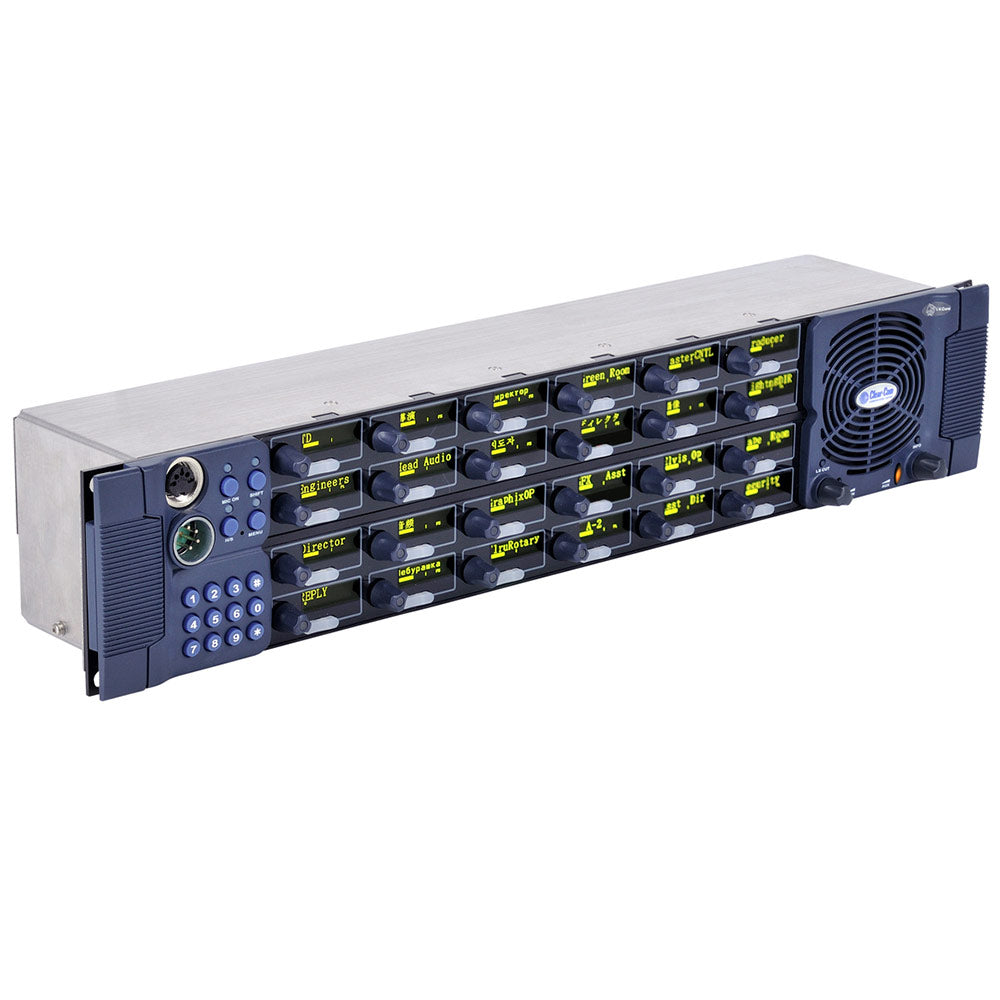

There are four basic types of Rotary key-panels: 1RU (12 key), 2RU (24 key), Desktop (12 key) and Extension (12 key). Each talk pushbutton has an associated audio level rotary switch control and can be configured for Talk and Listen. A menu button gives the user access (if allowed) to make changes to the panel functions, system assignment and set ups. A shift key gives access to up to 8 additional pages. The panel includes rear audio connections for external audio with options, hot mix out and GPIOÕs for footswitches and push-to-talk keying. Individual Rotary level controls let users adjust personal audio mixes for all calls.

Advance Digital Signal Processing (DSP) allows for centralized changes to audio routing and effects. The panelsÕ ÒListen AgainÓ feature allows recent incoming audio to be replayed.
