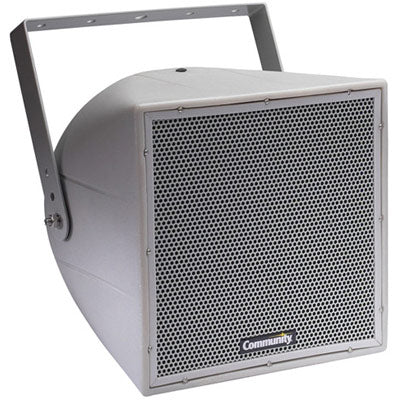

Community R.25-94Z R Series 2-Way 8" 200 Watt 70/100V Full Range All Weather Loudspeaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental. Conditions and to provide performance normally associated only with indoor loudspeakers. The R.25-94Z has an 8-inch (203mm) cone LF driver and a 3/4-inch (20 mm) exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity, all horn loaded
- High efficiency
- Integral mounting points
- High power passive crossover
- Optional 200W, 70V autoformer version available (model R.25-94TZ)
- Optional "all-black" version with black enclosure, black powder coated grille and black yoke (model R.25-94BZ)
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 2-way, horn loaded, coaxial, weather-resistant |
| Operating Range | 100 Hz to 16 kHz 160 Hz to 12.5 kHz (±3 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 97 dB SPL (160 Hz to 10 kHz 1/3 octave bands) 97 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 120 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 4.6 ohms @ 10.4 kHz |
| Nominal Ð6dB Beamwidth | 90¡H (+7¡ / -13¡, 2 kHz to 10 kHz) 40¡V (+35¡ / -10¡, 2 kHz to 10 kHz) |
| Axial Q / DI | 13.5 / 11.3, 2 kHz to 10 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 100 Hz high pass filter |
| Drivers | LF (1) 8Ó cast frame, Cool-Coilª HF (1) 3/4Ó exit, titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 16-2 SJOW (12 ft /4 m) |
| Controls | None |
| Enclosure | Rotomolded LLDPE, light grey |
| Enclosure Hardware | None |
| Mounting/Rigging Provisions | Mounting/Rigging (5) rigging points (M8 hardware) 1-3/8Ó pole mount socket |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 11.3 inches / 287 mm |
| Width | 11.3 inches / 287 mm |
| Depth | 13.3 inches / 338 mm |
| Weight | 20 lbs / 9.1 kg |
| Shipping Weight | 23.5 lbs / 10.7 kg |
The R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental. Conditions and to provide performance normally associated only with indoor loudspeakers. The R.25-94Z has an 8-inch (203mm) cone LF driver and a 3/4-inch (20 mm) exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity, all horn loaded
- High efficiency
- Integral mounting points
- High power passive crossover
- Optional 200W, 70V autoformer version available (model R.25-94TZ)
- Optional "all-black" version with black enclosure, black powder coated grille and black yoke (model R.25-94BZ)
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 2-way, horn loaded, coaxial, weather-resistant |
| Operating Range | 100 Hz to 16 kHz 160 Hz to 12.5 kHz (±3 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 97 dB SPL (160 Hz to 10 kHz 1/3 octave bands) 97 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 120 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 4.6 ohms @ 10.4 kHz |
| Nominal Ð6dB Beamwidth | 90¡H (+7¡ / -13¡, 2 kHz to 10 kHz) 40¡V (+35¡ / -10¡, 2 kHz to 10 kHz) |
| Axial Q / DI | 13.5 / 11.3, 2 kHz to 10 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 100 Hz high pass filter |
| Drivers | LF (1) 8Ó cast frame, Cool-Coilª HF (1) 3/4Ó exit, titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 16-2 SJOW (12 ft /4 m) |
| Controls | None |
| Enclosure | Rotomolded LLDPE, light grey |
| Enclosure Hardware | None |
| Mounting/Rigging Provisions | Mounting/Rigging (5) rigging points (M8 hardware) 1-3/8Ó pole mount socket |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 11.3 inches / 287 mm |
| Width | 11.3 inches / 287 mm |
| Depth | 13.3 inches / 338 mm |
| Weight | 20 lbs / 9.1 kg |
| Shipping Weight | 23.5 lbs / 10.7 kg |
