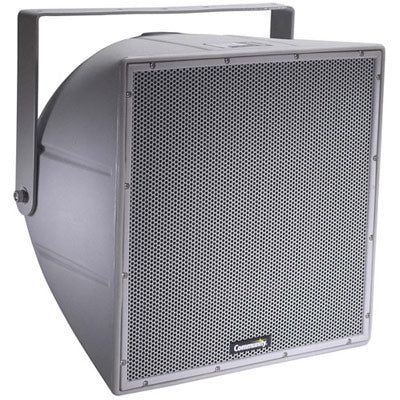

Community R.5-66TZ R Series 2-Way 12" 400 Watt 70/100V Narrow Dispersion All Weather Speaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R.5-66TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five-year limited product warranty fifteen-year enclosure warranty.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- DYNA-TECH protection circuitry
- Multi-tap 200W autoformer for 70V and 100V inputs
| Loudspeaker Type | 2-way, horn loaded coaxial, weather-resistant |
| Operating Range | 85 Hz to 16 kHz 125 Hz to 10 kHz (±4 dB) |
| Max Input Ratings | 200W, 70V/100V |
| Recommended Power Amplifier | 25W to 200W @ 70 Volts 50W to 200W @ 100 Volts |
| Sensitivity (1W/1m) | 102 dB SPL (125 Hz to 10 kHz 1/3 octave bands) 102 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output on 200W Tap | 125 dB SPL |
| 200W Nominal Impedance | 25 ohms |
| 200W Minimum Impedance | 16.4 ohms @ 9.3 kHz |
| Nominal Ð6dB Beamwidth | 60¡ H (+3¡ / -8¡, 1.6 kHz to 12.5 kHz) 60¡ V (+20¡ / -16¡, 1.6 kHz to 12.5 kHz) |
| Axial Q / DI | 21.4 / 13.3, 1.6 kHz to 12.5 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 90 Hz high pass filter |
| Drivers | LF (1) 12Ó Ferrofluid-cooled HF (1) 1Ó exit, titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | 4 position autoformer TAP select switch 70V switchable taps @ 200W, 100W, 50W, 25W 100V switchable taps @ 200W, 100W, 50W |
| Enclosure | Rotomolded LLDPE, light grey |
| Mounting/Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 16 inches (406.4 mm) |
| Width | 16 inches (406.4 mm) |
| Depth | 15.94 inches (404.88 mm) |
| Weight | 37 lbs (16.8 kg) |
| Shipping Weight | 42 lbs (19.1 kg) |
