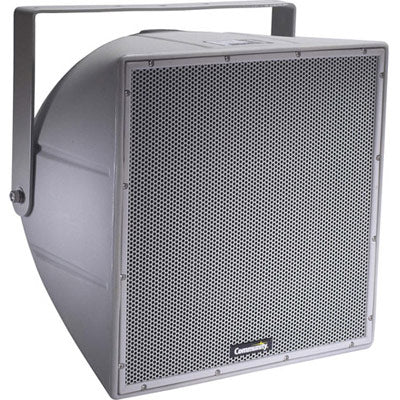

Community R.5-94Z R Series 2-Way 12" 400 Watt Medium Dispersion All Weather Loudspeaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R.5-94Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. Five-year limited product warranty fifteen-year enclosure warranty.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- DYNA-TECH protection circuitry
| Loudspeaker Type | 2-way, horn loaded coaxial, weather-resistant |
| Operating Range | 85 Hz to 16 kHz 125 Hz to 10 kHz (±4 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands) 102 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 124 dB SPL / 131 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 4.2 ohms @ 9.7 kHz |
| Nominal Ð6dB Beamwidth | 90¡ H (+1¡ / -46¡, 1.6 kHz to 12.5 kHz) 40¡ V (+16¡ / +1¡, 1.6 kHz to 12.5 kHz) |
| Axial Q / DI | 18.1 / 12.6, 1.6 kHz to 10 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 90 Hz high pass filter |
| Drivers | LF (1) 12Ó Ferrofluid-cooled HF (1) 1Ó exit, titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Rotomolded LLDPE, light grey |
| Mounting/Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 16 inches (406.4 mm) |
| Width | 16 inches (406.4 mm)Depth |
| Depth | 15.94 inches (404.88 mm) |
| Weight | 35 lbs (15.9 kg) |
| Shipping Weight | 40 lbs ( 18.14 kg) |
