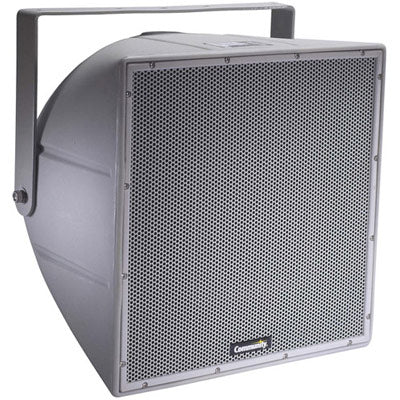

Community R.5-99Z R Series 2-Way 12" 400 Watt Wide Dispersion All Weather Loudspeaker - Grey



  • Dale #:

    COMM-R599Z

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The R.5-99Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clea... Read More

Retail Price: $1,486.00 Our Price: $1,053.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The R.5-99Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.

Features
  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH protection circuitry

More +

Product Specs

Loudspeaker Type 2-way, horn loaded coaxial, weather-resistant
Operating Range 85 Hz to 16 kHz 125 Hz to 10 kHz (±5 dB)
Max Input Ratings 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak
Recommended Power Amplifier 420W to 600W @ 8 ohms
Sensitivity (1W/1m) 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands) 101 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output 124 dB SPL / 131 dB SPL (peak)
Nominal Impedance 8 ohms
Minimum Impedance 4.2 ohms @ 9.5 kHz
Nominal –6dB Beamwidth 90° H (+2° / -43°, 1.6 kHz to 12.5 kHz) 90° V (+6° / -46°, 1.6 kHz to 12.5 kHz)
Axial Q / DI 13.6 / 11.3, 1.6 kHz to 10 kHz
Crossover Frequency 2 kHz
Recommended Signal Processing 90 Hz high pass filter
Drivers LF (1) 12” Ferrofluid-cooled HF (1) 1” exit, titanium free, Ferrofluid-cooled
Driver Protection DYNA-TECH
Input Connection 12 foot (4 m) SJOW #16 gauge
Controls None
Enclosure Rotomolded LLDPE, light grey
Mounting/Rigging Provisions (5) 3/8-16 rigging points
Grille 3-layer WeatherStop™, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
Environmental Performanc IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Required Accessories 24 dB/Oct high pass filter
Supplied Accessories (1) Yoke bracket, light grey (1) Aiming strap
Optional Accessories PMB Series pole mount brackets
Dimensions
Height 16 inches (406.4 mm)
Width 16 inches (406.4 mm)
Depth 15.94 inches (404.88 mm)
weight 35 lbs (15.9 kg)
Shipping Weight 40 lbs ( 18.14 kg)
