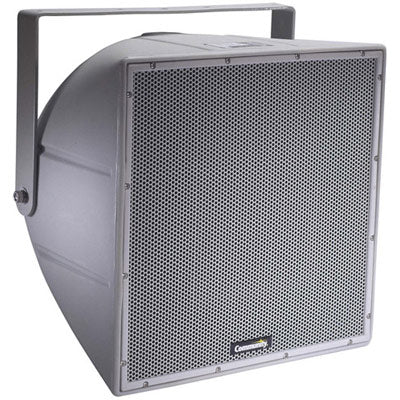

Community R.5COAX99T R Series 2-Way 12" 200 Watt 70/100V Coaxial Wide All Weather Loudspeaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R.5COAX99T high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R.5COAX99T comes with a factory-installed 200W, 70V/100V autoformer. Five-year limited product warranty fifteen-year enclosure warranty.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity
- High efficiency
- Integral mounting points
- High power passive crossover
- Factory-installed 200W, 70V autoformer
| Loudspeaker Type | 2-way, coaxial, weather-resistant, full-range |
| Operating Range | 80 Hz to 18 kHz 90 Hz to 13 kHz (±3.5 dB) 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V |
| Sensitivity (1W/1m) | 95 dB SPL (100 Hz to 13 kHz 1/3 octave bands) 95 dB SPL (250 Hz to 4 kHz speech range) |
| 200w Nominal Impedance | 25 ohms |
| Minimum Impedance | 15.3 Ohms @ 9.4 kHz |
| Nominal Ð6dB Beamwidth | 90¡H (+10¡ / -23¡, 1.6 kHz to 12.5 kHz) 90¡V (+4¡ / -30¡, 1.6 kHz to 12.5 kHz) |
| Axial Q / DI | 10.7 / 10.3, 1.6 kHz to 12.5 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 80 Hz high pass filter |
| Drivers | LF 1 x 12Ó HF 1 x 1Ó exit titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 12 foot (4m) 5 conductor #18 gauge cable |
| Enclosure | Rotomolded LLDPE, light grey |
| Mounting/Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP54W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 16 inches (406.4 mm) |
| Width | 16 inches (406.4 mm) |
| Depth | 15.94 inches (404.88 mm) |
| Weight | 38.5 lbs (17.46 kg) |
| Shipping Weight | 47 lbs ( 21.3 kg) |
The R.5COAX99T high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R.5COAX99T comes with a factory-installed 200W, 70V/100V autoformer. Five-year limited product warranty fifteen-year enclosure warranty.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity
- High efficiency
- Integral mounting points
- High power passive crossover
- Factory-installed 200W, 70V autoformer
| Loudspeaker Type | 2-way, coaxial, weather-resistant, full-range |
| Operating Range | 80 Hz to 18 kHz 90 Hz to 13 kHz (±3.5 dB) 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V |
| Sensitivity (1W/1m) | 95 dB SPL (100 Hz to 13 kHz 1/3 octave bands) 95 dB SPL (250 Hz to 4 kHz speech range) |
| 200w Nominal Impedance | 25 ohms |
| Minimum Impedance | 15.3 Ohms @ 9.4 kHz |
| Nominal Ð6dB Beamwidth | 90¡H (+10¡ / -23¡, 1.6 kHz to 12.5 kHz) 90¡V (+4¡ / -30¡, 1.6 kHz to 12.5 kHz) |
| Axial Q / DI | 10.7 / 10.3, 1.6 kHz to 12.5 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 80 Hz high pass filter |
| Drivers | LF 1 x 12Ó HF 1 x 1Ó exit titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 12 foot (4m) 5 conductor #18 gauge cable |
| Enclosure | Rotomolded LLDPE, light grey |
| Mounting/Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP54W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | PMB Series pole mount brackets |
| Dimensions | |
| Height | 16 inches (406.4 mm) |
| Width | 16 inches (406.4 mm) |
| Depth | 15.94 inches (404.88 mm) |
| Weight | 38.5 lbs (17.46 kg) |
| Shipping Weight | 47 lbs ( 21.3 kg) |
