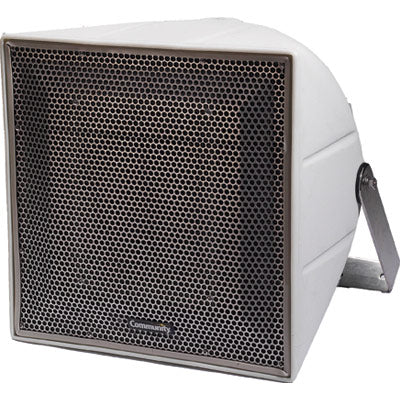

Community R.5HP R Series 3-Way 12" 200 Watt Full Range All Weather Loudspeaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R.5HP is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12 LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1 exit HF driver. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated.
Features- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
| Loudspeaker Type | 3-way, horn loaded coaxial, weather-resistant |
| Operating Range | 80 Hz to 18 kHz 90 Hz to 13 kHz (±3.5 dB) 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V |
| Max Input Ratings | 200W continuous, 500W program 35 volts RMS, 77 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 6 ohms |
| Sensitivity (1W/1m) | 106 dB SPL (125 Hz to 10 kHz 1/3 octave bands) 107 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 129 dB SPL / 136 dB SPL (peak) |
| Nominal Impedance | 6 ohms |
| Minimum Impedance | 3.2 Ohms @ 11220 Hz |
| Nominal Ð6dB Beamwidth | 60¡ H (+32¡ / -17¡, 2 kHz to 10 kHz) 40¡ V (+33¡ / -1¡, 2 kHz to 10 kHz) |
| Axial Q / DI | 20.5 / 13.1, 1.2 kHz to 12.5 kHz |
| Crossover Frequency | 600 Hz/ 4 kHz |
| Recommended Signal Processing | 70 Hz high pass filter |
| Drivers | LF (1) 12Ó weather treated, Ferrofluid-cooled MF (1) M200, Ferrofluid-cooled HF (1) 1Ó exit, titanium free, Ferrofluid-cooled |
| Driver Protection | None |
| Input Connection | 12 foot (4m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Rotomolded LLDPE, light grey |
| Mounting/Rigging Provisions | (5) 3/8-16 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP54W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | None |
| Supplied Accessories | (1) Yoke bracket, light grey (1) Aiming strap |
| Optional Accessories | TRC400 transformer (400W 70/100/140V) PMB Series pole mount brackets |
| Dimensions | |
| Height | 16 inches (406.4 mm) |
| Width | 16 inches (406.4 mm) |
| Depth | 16.187 inches (411.15 mm) |
| Weight | 42.3 lbs (19.2 kg) |
| Shipping Weight | 49 lbs ( 22.2 kg) |
