Description
The R1-64Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear... Read MoreRetail Price: $2,862.00 Our Price: $2,027.00
Shipping Charges Apply
Suggested Accessories
Description

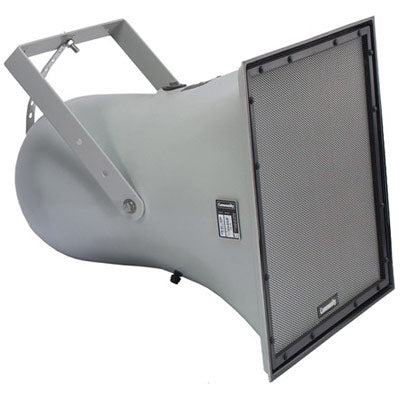

The R1-64Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop™ grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.
FeaturesMore +
Product Specs
Loudspeaker Type | 2-way horn loaded coaxial, weather-resistant |
Operating Range | 90 Hz to 16 kHz |
Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
Recommended Power Amplifier | 420W to 600W @ 8 ohms |
Sensitivity (1W/1m) | 105 dB SPL (100 Hz to 16 kHz 1/3 octave bands) 106 dB SPL (250 Hz to 4 kHz speech range) |
Maximum Output | 128 dB SPL / 135 dB SPL (peak) |
Nominal Impedance | 8 ohms |
Minimum Impedance | 5.5 ohms @ 230 Hz |
Nominal –6dB Beamwidth | 50° H (+4° / -19°, 1 kHz to 16 kHz) 35° V (+7° / -5°, 1 kHz to 16 kHz) 100° H x 100° V (400 Hz) |
Axial Q / DI | 31.5 / 15, 1 kHz to 16 kHz |
Crossover Frequency | 1.2 kHz |
Recommended Signal Processing | 90 Hz high pass filter |
Drivers | LF 1 x 12” weather-treated, Ferrofluid-cooled HF 1 x 1” exit, titanium diaphragm |
Driver Protection | PowerSense™ DDP |
Input Connection | 12 foot (4 m) SJOW #16 gauge |
Controls | None |
Enclosure | Hand-laminated fiberglass, light grey gelcoat |
Mounting/Rigging Provisions | (5) 1/2-13 rigging points |
Grille | 3-layer WeatherStop™, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
Required Accessories | 90 Hz high pass filter |
Supplied Accessories | SSYR1 yoke bracket, light grey |
Optional Accessories | TRC400 400-watt 70/100/140-volt transformer |
Dimensions—Height | 24.75 inches (629 mm) |
Width | 24.75 inches (629 mm) |
Depth | 29.75 inches (756 mm) |
Weight (without yoke) | 47.5 lbs (21.5 kg) |
Weight (with yoke) | 55.5 lbs (25.2 kg) |
Shipping Weight | 75 lbs (34 kg) |
