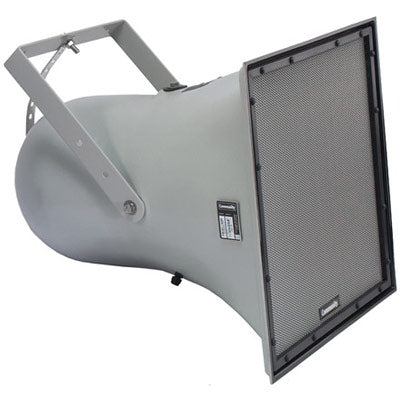

Community R1-66Z R Series 2-Way 12" 200 Watt Full Range Even Dispersion All Weather Speaker - Grey


  • Dale #:

    COMM-R166Z
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The R1-66Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The R1-66Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop™ grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.

Features
  • Weather-resistant, all-fiberglass enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Pattern control to below 500 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • High-fidelity, full-range reproduction of music and speech
  • Application-specific coverage pattern
  • Optional “indoor” version available with a black enclosure and no grille (model R1-64BNG)
  • Five-year product warranty / Fifteen-year enclosure warranty

More +

Product Specs

Loudspeaker Type 2-way horn loaded coaxial, weather-resistant
Operating Range 90 Hz to 16 kHz 110 Hz to 10 kHz (±4 dB)
Max Input Ratings 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak
Recommended Power Amplifier 420W to 600W @ 8 ohms
Sensitivity (1W/1m) 105 dB SPL (100 Hz to 16 kHz 1/3 octave bands) 106 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output 128 dB SPL / 135 dB SPL (peak)
Nominal Impedance 8 ohms
Minimum Impedance 5.7 ohms @ 230 Hz
Nominal –6dB Beamwidth 60° H (+18° / -20°, 1 kHz to 16 kHz) 60° V (+13° / -16°, 1 kHz to 16 kHz) 100° H x 100° V (400 Hz)
Axial Q / DI 20.3 / 13.1, 1 kHz to 16 kHz
Crossover Frequency 1.2 kHz
Recommended Signal Processing 90 Hz high pass filter
Drivers LF 1 x 12” weather-treated, Ferrofluid-cooled HF 1 x 1” exit, titanium diaphragm
Driver Protection PowerSense™ DDP
Input Connection 12 foot (4 m) SJOW #16 gauge
Controls None
Enclosure Hand-laminated fiberglass, light grey gelcoat
Mounting/Rigging Provisions (5) 1/2-13 rigging points 3-layer WeatherStop™, light grey
Grille 3-layer WeatherStop™, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
Environmental Performance IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Required Accessories 90 Hz high pass filter
Supplied Accessories SSYR1 yoke bracket, light grey
Optional Accessories TRC400 400-watt 70/100/140-volt transformer
Dimensions—Height 24.75 inches (629 mm)
Width 24.75 inches (629 mm)
Depth 29.75 inches (756 mm)
Weight (without yoke) 47.5 lbs (21.5 kg)
Weight (with yoke) 55.5 lbs (25.2 kg)
Shipping Weight 75 lbs (34 kg)
