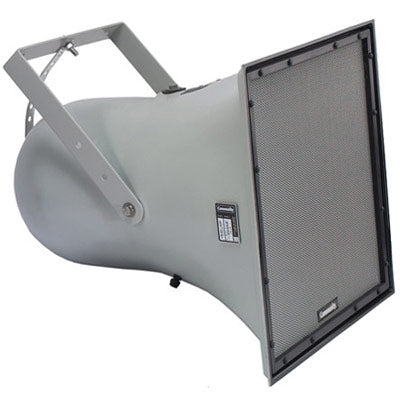

Community R1-94Z R Series 2-Way 12" 200 Watt Full Range Wide Dispersion All Weather Speaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R1-94Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop™ grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.
Features- Weather-resistant, all-fiberglass enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control to below 500 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- High-fidelity, full-range reproduction of music and speech
- Application-specific coverage pattern
- Optional "indoor" version available with a black enclosure and no grille (model R1-64BNG)
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 2-way horn loaded coaxial, weather-resistant |
| Operating Range | 90 Hz to 16 kHz 110 Hz to 10 kHz (±4 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 104 dB SPL (100 Hz to 16 kHz 1/3 octave bands) 105 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 127 dB SPL / 134 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | Minimum Impedance- 5.7 ohms @ 230 Hz 80¡ H (+0¡ / -49¡, 1 kHz to 16 kHz) |
| Nominal Ð6dB Beamwidth | 35¡ V (+4¡ / -10¡, 1 kHz to 16 kHz) 100¡ H x 100¡ V (400 Hz) |
| Axial Q / DI | 29.7 / 14.7, 1 kHz to 16 kHz |
| Crossover Frequency | 1.2 kHz |
| Recommended Signal Processing | 90 Hz high pass filter |
| Drivers | LF 1 x 12Ó weather-treated, Ferrofluid-cooled HF 1 x 1Ó exit, titanium diaphragm |
| Driver Protection | PowerSenseª DDP |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Hand-laminated fiberglass, light grey gelcoat |
| Mounting/Rigging Provisions | (5) 1/2-13 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 90 Hz high pass filter |
| Supplied Accessories | SSYR1 yoke bracket, light grey |
| Optional Accessories | TRC400 400-watt 70/100/140-volt transformer |
| Dimensions | |
| Height | 24.75 inches (629 mm) |
| Width | 24.75 inches (629 mm) |
| Depth | 29.75 inches (756 mm) |
| Weight (without yoke) | 47.5 lbs (21.5 kg) |
| Weight (with yoke) | 55.5 lbs (25.2 kg) |
| Shipping Weight | 75 lbs (34 kg) |
The R1-94Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop™ grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.
Features- Weather-resistant, all-fiberglass enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control to below 500 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- High-fidelity, full-range reproduction of music and speech
- Application-specific coverage pattern
- Optional "indoor" version available with a black enclosure and no grille (model R1-64BNG)
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 2-way horn loaded coaxial, weather-resistant |
| Operating Range | 90 Hz to 16 kHz 110 Hz to 10 kHz (±4 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 104 dB SPL (100 Hz to 16 kHz 1/3 octave bands) 105 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 127 dB SPL / 134 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | Minimum Impedance- 5.7 ohms @ 230 Hz 80¡ H (+0¡ / -49¡, 1 kHz to 16 kHz) |
| Nominal Ð6dB Beamwidth | 35¡ V (+4¡ / -10¡, 1 kHz to 16 kHz) 100¡ H x 100¡ V (400 Hz) |
| Axial Q / DI | 29.7 / 14.7, 1 kHz to 16 kHz |
| Crossover Frequency | 1.2 kHz |
| Recommended Signal Processing | 90 Hz high pass filter |
| Drivers | LF 1 x 12Ó weather-treated, Ferrofluid-cooled HF 1 x 1Ó exit, titanium diaphragm |
| Driver Protection | PowerSenseª DDP |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Hand-laminated fiberglass, light grey gelcoat |
| Mounting/Rigging Provisions | (5) 1/2-13 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 90 Hz high pass filter |
| Supplied Accessories | SSYR1 yoke bracket, light grey |
| Optional Accessories | TRC400 400-watt 70/100/140-volt transformer |
| Dimensions | |
| Height | 24.75 inches (629 mm) |
| Width | 24.75 inches (629 mm) |
| Depth | 29.75 inches (756 mm) |
| Weight (without yoke) | 47.5 lbs (21.5 kg) |
| Weight (with yoke) | 55.5 lbs (25.2 kg) |
| Shipping Weight | 75 lbs (34 kg) |
