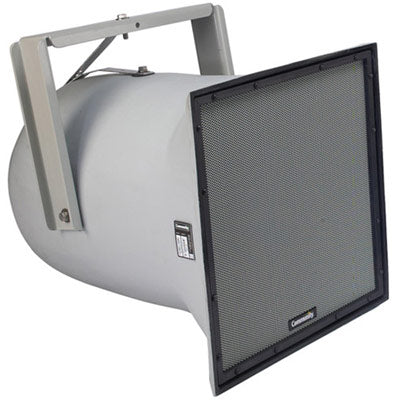

Community R2-52Z R Series 3-Way Dual 12" 400 Watt Full Range Long Throw All Weather Speaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R2-52Z ful -range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The R2-52Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass.
Features- Weather resistant construction
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Application-specific coverage pattern
- High-efficiency horn loading
- High-fidelity, full-range reproduction of music and speech
- Included weather-resistant mounting yoke for easy mounting and aiming
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 3-way horn loaded triaxial, weather-resistant | ||||||||||||||||||||||||||||||||||||||
| Operating Range | 70 Hz to 16 kHz 80 Hz to 10 kHz (±6 dB) | ||||||||||||||||||||||||||||||||||||||
| Max Input Ratings | 400W continuous, 1000W program 49 volts RMS, 89 volts momentary peak | ||||||||||||||||||||||||||||||||||||||
| Recommended Power Amplifier | 830W to 1200W @ 4 ohms | ||||||||||||||||||||||||||||||||||||||
| Sensitivity (1W/1m) | 107 dB SPL (80 Hz to 16 kHz 1/3 octave bands) 109 dB SPL (250 Hz to 4 kHz speech range) | ||||||||||||||||||||||||||||||||||||||
| Maximum Output | 133 dB SPL / 140 dB SPL (peak) | ||||||||||||||||||||||||||||||||||||||
| Nominal Impedance | 4 ohms | ||||||||||||||||||||||||||||||||||||||
| Minimum Impedance | 2.7 ohms @ 660 Hz | ||||||||||||||||||||||||||||||||||||||
| Nominal Ð6dB Beamwidth | 50¡ H (+36¡ / -15¡, 1.25 kHz to 10 kHz) 20¡ V (+13¡ / -5¡, 1.25 kHz to 10 kHz) 100¡ H x 100¡ V (400 Hz) | ||||||||||||||||||||||||||||||||||||||
| Axial Q / DI | 37.9 / 15.8, 1.25 kHz to 10 kHz | ||||||||||||||||||||||||||||||||||||||
| Crossover Frequency | 600 Hz / 3.5 kHz | ||||||||||||||||||||||||||||||||||||||
| Recommended Signal Processing | 70 Hz high pass filter | ||||||||||||||||||||||||||||||||||||||
| Drivers | LF 2 x 12Ó weather-treated, Ferrofluid-cooled MF 2 x M200 2Ó exit, non-metallic diaphragm, Ferrofluid-cooled HF 1 x 1Ó exit, titanium diaphragm | ||||||||||||||||||||||||||||||||||||||
| Driver Protection | DYNA-TECH protection circuitry | ||||||||||||||||||||||||||||||||||||||
| Input Connection | 12 foot (4 m) SJOW #16 gauge | ||||||||||||||||||||||||||||||||||||||
| Controls | None | ||||||||||||||||||||||||||||||||||||||
| Enclosure | Hand-laminated fiberglass, light grey gelcoat | ||||||||||||||||||||||||||||||||||||||
| Mounting/Rigging Provisions | (5) 1/2-13 rigging points | ||||||||||||||||||||||||||||||||||||||
| Grille |
