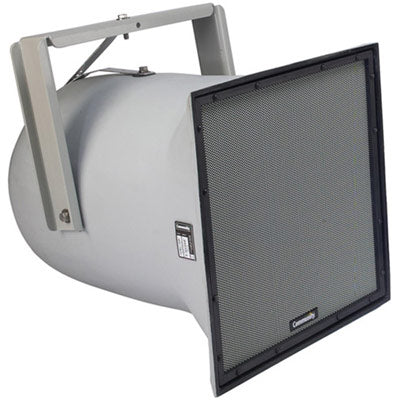

Community R2-77Z R Series 3-Way Dual 12" 400 Watt Full Range Short Throw All Weather Speaker - Grey
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The R2-77Z ful -range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The R2-77Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass.
Features- Weather resistant construction
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Application-specific coverage pattern
- High-efficiency horn loading
- High-fidelity, full-range reproduction of music and speech
- Included weather-resistant mounting yoke for easy mounting and aiming
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 3-way horn loaded triaxial, weather-resistant |
| Operating Range | 70 Hz to 16 kHz 70 Hz to 10 kHz (±6 dB) |
| Max Input Ratings | 400W continuous, 1000W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 830W to 1200W @ 4 ohms |
| Sensitivity (1W/1m) | 104 dB SPL (80 Hz to 16 kHz 1/3 octave bands) 105 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 130 dB SPL / 137 dB SPL (peak) |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 2.9 ohms @ 270 Hz |
| Nominal Ð6dB Beamwidth | 60¡ H (+7¡ / -9¡, 1.25 kHz to 10 kHz) 60¡ V (+3¡ / -12¡, 1.25 kHz to 10 kHz) 100¡ H x 100¡ V (400 Hz) |
| Axial Q / DI | 23.4 / 13.7, 1.25 kHz to 10 kHz |
| Crossover Frequency | 600 Hz / 3.5 kHz |
| Recommended Signal Processing | 70 Hz high pass filter |
| Drivers | LF 2 x 12Ó weather-treated, Ferrofluid-cooled MF 1 x M200 2Ó exit, non-metallic diaphragm, Ferrofluid-cooled HF 1 x 1Ó exit, titanium diaphragm |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Hand-laminated fiberglass, light grey gelcoat |
| Mounting/Rigging Provisions | (5) 1/2-13 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 70 Hz high pass filter |
| Supplied Accessories | Weather-resistant mounting yoke, light grey |
| Optional Accessories | TRC400 400-watt 70/100/140-volt transformer |
| Dimensions | |
| Height | 24.75 inches (629 mm) |
| Width | 24.75 inches (629 mm) |
| Depth | 30.75 inches (781 mm) |
| Weight | 96 lbs (43.5 kg) |
| Shipping Weight | 124 lbs (56.2 kg) |
The R2-77Z ful -range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The R2-77Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass.
Features- Weather resistant construction
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Application-specific coverage pattern
- High-efficiency horn loading
- High-fidelity, full-range reproduction of music and speech
- Included weather-resistant mounting yoke for easy mounting and aiming
- Five-year product warranty / Fifteen-year enclosure warranty
| Loudspeaker Type | 3-way horn loaded triaxial, weather-resistant |
| Operating Range | 70 Hz to 16 kHz 70 Hz to 10 kHz (±6 dB) |
| Max Input Ratings | 400W continuous, 1000W program 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 830W to 1200W @ 4 ohms |
| Sensitivity (1W/1m) | 104 dB SPL (80 Hz to 16 kHz 1/3 octave bands) 105 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 130 dB SPL / 137 dB SPL (peak) |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 2.9 ohms @ 270 Hz |
| Nominal Ð6dB Beamwidth | 60¡ H (+7¡ / -9¡, 1.25 kHz to 10 kHz) 60¡ V (+3¡ / -12¡, 1.25 kHz to 10 kHz) 100¡ H x 100¡ V (400 Hz) |
| Axial Q / DI | 23.4 / 13.7, 1.25 kHz to 10 kHz |
| Crossover Frequency | 600 Hz / 3.5 kHz |
| Recommended Signal Processing | 70 Hz high pass filter |
| Drivers | LF 2 x 12Ó weather-treated, Ferrofluid-cooled MF 1 x M200 2Ó exit, non-metallic diaphragm, Ferrofluid-cooled HF 1 x 1Ó exit, titanium diaphragm |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 12 foot (4 m) SJOW #16 gauge |
| Controls | None |
| Enclosure | Hand-laminated fiberglass, light grey gelcoat |
| Mounting/Rigging Provisions | (5) 1/2-13 rigging points |
| Grille | 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh) |
| Environmental Performance | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
| Required Accessories | 70 Hz high pass filter |
| Supplied Accessories | Weather-resistant mounting yoke, light grey |
| Optional Accessories | TRC400 400-watt 70/100/140-volt transformer |
| Dimensions | |
| Height | 24.75 inches (629 mm) |
| Width | 24.75 inches (629 mm) |
| Depth | 30.75 inches (781 mm) |
| Weight | 96 lbs (43.5 kg) |
| Shipping Weight | 124 lbs (56.2 kg) |
