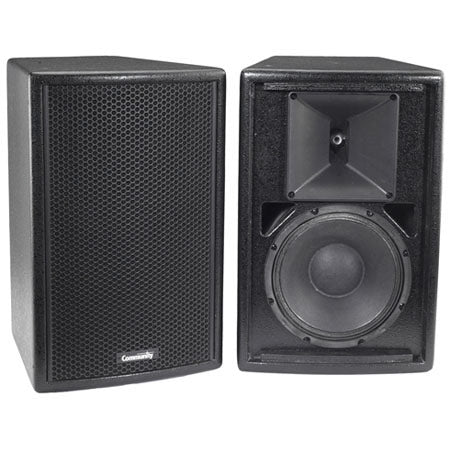

Community V2-8B Two-Way Full-Range Compact Loudspeaker System - Black

  • Dale #:

    COMM-V28B
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The V2-8 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the V2-210S, a V... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The V2-8 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the V2-210S, a V2-8 system will produce high-fidelity, broad spectrum sound that belies its modest size. The V2-8 is also an excellent choice for ancillary delay applications. When used to augment a front-of-house system in such venues as auditoria, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-8 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation. The V2-8 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or
horizontal mounting positions. An optional model with a built-in 100W autoformer with taps at 100W, 50W, 25W and 12.5W (model V2-8T) is also available
from the factory.

Features

  • DYNA-TECH™ driver protection circuitry
  • Ferrofluid-treated HF driver for improved heat dissipation
  • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
  • Constant-directivity rotatable square horn
  • Terminal strip and NL4-compatible connectors
  • Available in standard black or white finishes
  • Mounting yoke included with 10° and 20° vertical standoffs
  • Optional V2-8T autoformer model for 70V/100V applications

More +

Product Specs

Loudspeaker TypeCompact two-way, full-range, trapezoidal, vented bass, user rotatable horn
Operating Range70 Hz to 18 kHz (-10 dB)
Frequency Response100 Hz to 16 kHz (±3 dB)
Max Input Ratings150W continuous, 375W program
34.6 volts RMS, 69.2 volts momentary peak
Sensitivity (1W/1m)92 dB (100 Hz to 12.5 kHz) free space
Maximum Output114 dB SPL / 120 dB SPL (peak)
Nominal Impedance8 ohms
Minimum Impedance6.1 ohms @ 180 Hz
Nominal –6dB Beamwidth90° H x 70° V (in vertical position)
Crossover Frequency1.3 kHz
Recommended Signal Processing90 Hz, 24 dB/octave Butterworth high pass filter
DriversLF 1 x 8-inch cone
HF 1 x 1-inch
Driver ProtectionDYNA-TECH protection circuitry
Input ConnectionNL4-compatible locking connector with terminal strip in parallel
ControlsNone
EnclosureTrapezoidal (22.5° included angle)
18mm, 11-ply cross-laminated birch
Mounting/Rigging Provisions9 x M6 threaded rigging fittings
4 x M6 threaded fittings for V-HSS and third-party suspension products
FinishCatalyzed polyester two-part paint, black or white
GrillePowder coated steel, black or white finish
Required AccessoriesNone
Supplied AccessoriesYoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
Optional AccessoriesCMKIT ceiling mount kit
V-HSS handle and stand socket
VB-TILT tilting bracket
VB-VY8 vertical yoke bracket
M6EYBLTKIT 6mm eyebolt kit
Dimensions—Height
Width
Depth
17 inches (433 mm)
11.3 inches (287 mm)
11.7 inches (298 mm)
Weight (incl. bracket)25.3 lbs (11.5 kg)
27.3 lbs (12.5 kg) with autoformer
Model OptionsV2-8B (low impedance, black finish)
V2-8BT (built-in autofomer for 70V100V applications, black finish)

More +
