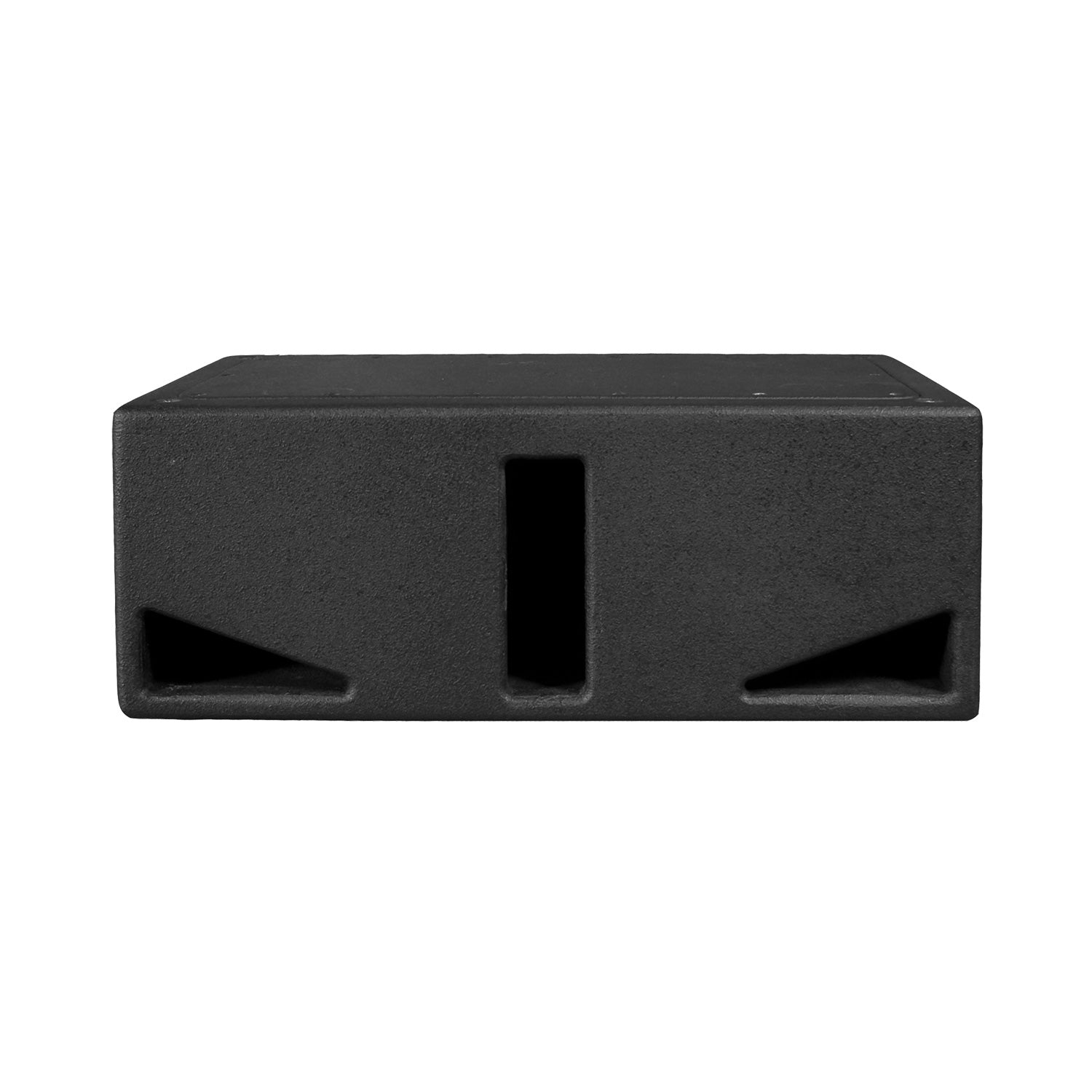

Community VLF208B - Dual 8-Inch Passive Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ultra-compact VLF208 is a dual 8-inch, no-grille design that can be installed under stages, in walls or ceilings, or in other low profile locations in either the vertical or horizontal mounting position. Its extremely low profile enclosure is narrow enough to fit comfortably between wall studs, providing “hidden” LF extension. With a response down to 70 Hz in passive mode or 60 Hz using digital signal processing, the VLF208 can function in pairs as a steered bass array, and is equipped with fly points and four rubber feet with recessed foot mounting locations on two sides. The VLF208 can also be wall-mounted using its specially designed low-profile yoke bracket, the VLF-Y208.
The VLF subwoofers feature a low-profile design that is ideal for theaters, restaurants, auditoria, houses of worship, schools and other venues, with the compact VLF208 and VLF208LV fitting into areas where larger subwoofers are impractical.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Low profile design, small footprint
- Designed to work as a traditional subwoofer or in steered bass arrays
- DYNA-TECH protection circuitry
- Suitable for in-wall, under-seating, under-stage and other “hidden” LF applications
- Optional wall/ceiling mounting brackets and array brackets for multiple cluster configurations
- Available in black or white finishes
- Five-year warranty
| Loudspeaker Type | Compact subwoofer |
| Operating Range | 55Hz to 400Hz 60 Hz to 160 Hz (±1 dB) processed |
| Max Input Ratings | 300W continuous, 750W program, 4 ohms 35 volts RMS, 77 volts momentary peak |
| Recommended Power Amplifier | 630W to 900W @ 4 ohms |
| Sensitivity (1W/1m) | 95 dB SPL (63 Hz to 160 Hz 1/3 octave bands) |
| Maximum Output | 120 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 4.8 ohms @ 130 Hz |
| NominalÐ6dB Beamwidth | 360¡Hx180¡V |
| AxialQ/DI | 1/0,60Hzto160Hz |
| Recommended Signal Processing | 55 Hz high pass filter, 48 dB/Oct |
| Drivers | LF (2) 8" |
| Driver Protection | DYNA-TECH |
| Input Connection | (1) NL4-compatible locking connector (1) 2 conductor barrier strip |
| Enclosure | 11-ply cross-laminated birch |
| Finish | Black or white paint finish |
| Mounting/Rigging Provisions | (8) M10 hang points |
| Required Accessories | Digital signal processor |
| Supplied Accessories | (4) Rubber feet |
| Optional Accessories | VLF-SAB steered array bracket VLF-Y208 yoke mounting bracket |
| Dimensions | Height: 8.25 inches (210 mm) Width: 21.75 inches (552 mm) Depth: 13 inches (330 mm) |
| Weight | 42 lbs (19.1 kg) |
The ultra-compact VLF208 is a dual 8-inch, no-grille design that can be installed under stages, in walls or ceilings, or in other low profile locations in either the vertical or horizontal mounting position. Its extremely low profile enclosure is narrow enough to fit comfortably between wall studs, providing “hidden” LF extension. With a response down to 70 Hz in passive mode or 60 Hz using digital signal processing, the VLF208 can function in pairs as a steered bass array, and is equipped with fly points and four rubber feet with recessed foot mounting locations on two sides. The VLF208 can also be wall-mounted using its specially designed low-profile yoke bracket, the VLF-Y208.
The VLF subwoofers feature a low-profile design that is ideal for theaters, restaurants, auditoria, houses of worship, schools and other venues, with the compact VLF208 and VLF208LV fitting into areas where larger subwoofers are impractical.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Low profile design, small footprint
- Designed to work as a traditional subwoofer or in steered bass arrays
- DYNA-TECH protection circuitry
- Suitable for in-wall, under-seating, under-stage and other “hidden” LF applications
- Optional wall/ceiling mounting brackets and array brackets for multiple cluster configurations
- Available in black or white finishes
- Five-year warranty
| Loudspeaker Type | Compact subwoofer |
| Operating Range | 55Hz to 400Hz 60 Hz to 160 Hz (±1 dB) processed |
| Max Input Ratings | 300W continuous, 750W program, 4 ohms 35 volts RMS, 77 volts momentary peak |
| Recommended Power Amplifier | 630W to 900W @ 4 ohms |
| Sensitivity (1W/1m) | 95 dB SPL (63 Hz to 160 Hz 1/3 octave bands) |
| Maximum Output | 120 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 4.8 ohms @ 130 Hz |
| NominalÐ6dB Beamwidth | 360¡Hx180¡V |
| AxialQ/DI | 1/0,60Hzto160Hz |
| Recommended Signal Processing | 55 Hz high pass filter, 48 dB/Oct |
| Drivers | LF (2) 8" |
| Driver Protection | DYNA-TECH |
| Input Connection | (1) NL4-compatible locking connector (1) 2 conductor barrier strip |
| Enclosure | 11-ply cross-laminated birch |
| Finish | Black or white paint finish |
| Mounting/Rigging Provisions | (8) M10 hang points |
| Required Accessories | Digital signal processor |
| Supplied Accessories | (4) Rubber feet |
| Optional Accessories | VLF-SAB steered array bracket VLF-Y208 yoke mounting bracket |
| Dimensions | Height: 8.25 inches (210 mm) Width: 21.75 inches (552 mm) Depth: 13 inches (330 mm) |
| Weight | 42 lbs (19.1 kg) |
