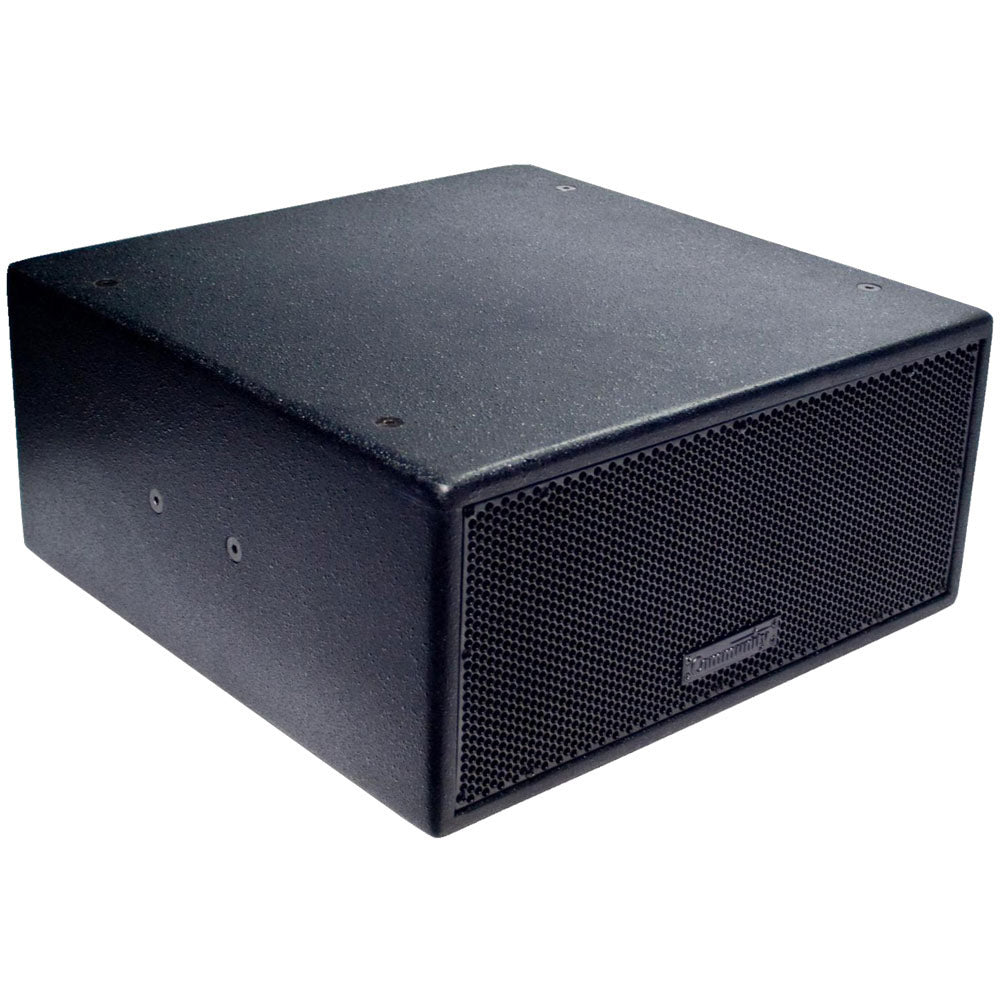

Community VLF208LV-BI Dual 8-inch Large Volume Compact Subwoofer


  • Dale #:

    COMM-VLF208LVBI
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The VLF208LV is a dual 8-inch subwoofer in a “large volume” enclosure. It is designed for applications that require the lowest frequencies from a slim profile design, measuring just 10.2 inches high (10 inches without feet) by 21.75 inches wide and 21.75 inches deep. With a frequency response dow... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The VLF208LV is a dual 8-inch subwoofer in a “large volume” enclosure. It is designed for applications that require the lowest frequencies from a slim profile design, measuring just 10.2 inches high (10 inches without feet) by 21.75 inches wide and 21.75 inches deep. With a frequency response down to 40 Hz (-3dB) and an operating range to 30 Hz (-10dB), the 1000W program VLF208LV stunningly delivers low end power. Its low velocity port design extends the response while eliminating air noise through the heavy duty 16-gauge steel perforated grille. The VLF208LV is available in both portable and installation versions. The portable version includes built-in handles and a pole mount socket, while the black and white installation models incorporate multiple M10 hang points.

Features

  • Low profile design, small footprint
  • Designed to work as a traditional subwoofer or in steered bass arrays
  • Suitable for in-wall, under-seating, under-stage and other “hidden” LF applications
  • Available in black or white finishes
  • Five-year warranty

More +

Product Specs

Loudspeaker TypeCompact, direct-radiating subwoofer
Operating Range30 Hz to 1000 Hz
40 Hz to 200 Hz (±3 dB)
Max Input Ratings400W continuous, 1000W program, 4 ohms
40 volts RMS, 89 volts momentary peak
Recommended Power Amplifier630W to 900W @ 4 ohms
Sensitivity (1W/1m)93 dB SPL (40 Hz to 200 Hz 1/3 octave bands)
Maximum Output119 dB SPL / 126 dB SPL (peak)
Nominal Impedance4 ohms
Minimum Impedance3.9 ohms @ 160 Hz
Nominal –6dB Beamwidth360° H x 180° V
Axial Q / DI1/0, 40 Hz to 200 Hz
Recommended Signal Processing40 Hz, 24 dB high pass filter
DriversLF (2) 8"
Driver ProtectionNone
Input ConnectionNL4-compatible locking connector
2 conductor barrier strip
Enclosure11-ply cross-laminated birch
FinishBlack or white paint finish
Mounting/Rigging Provisions(12) M10 hang points (install models only)
Required AccessoriesNone
Supplied Accessories(4) Rubber feet
Optional AccessoriesVLF-SAB steered array bracket
M10EYBLTKIT 10mm eyebolt kit
STKIT seat track kit
SB5 steel mounting pole (for –BP model)
Dimensions—Height
Width
Depth
10.2 inches (260 mm)
21.75 inches (552 mm)
21.75 inches (552 mm)
Weight48 lbs (21.8 kg)
