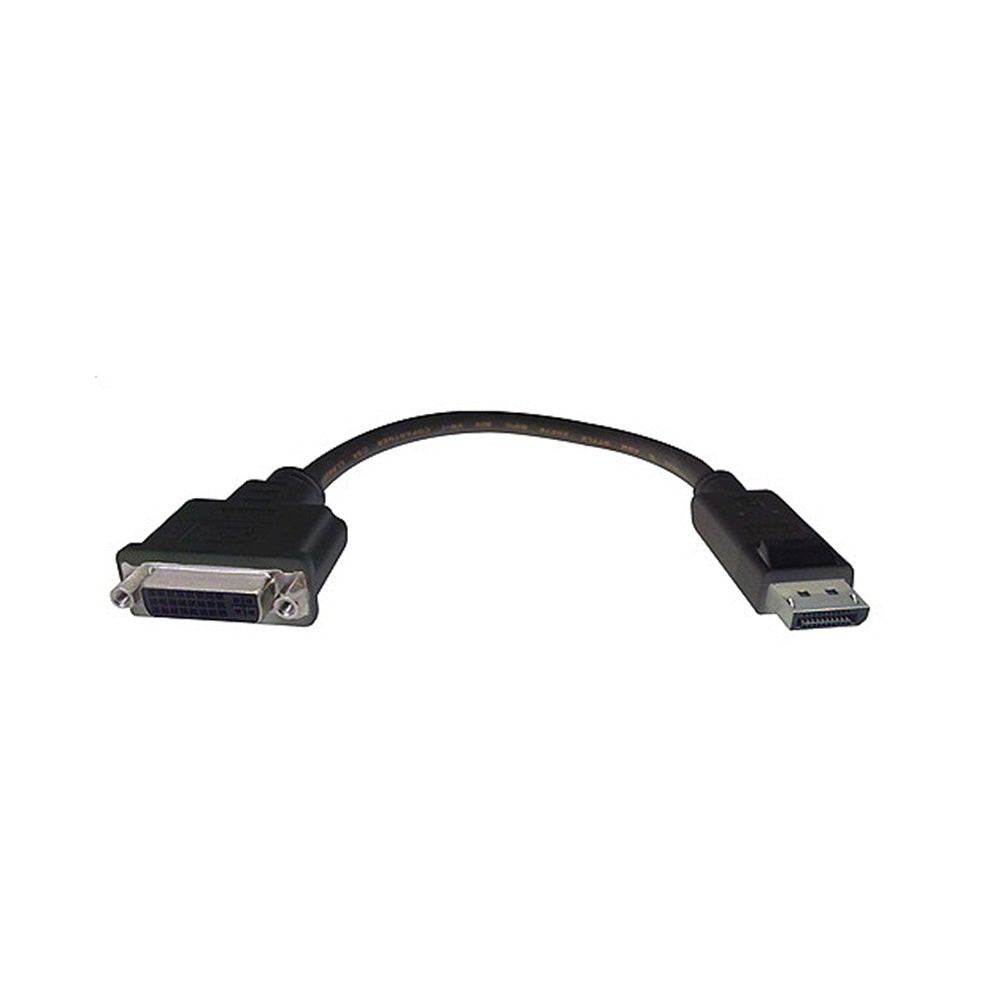

Comprehensive DP2DVIF - DisplayPort Male to DVI Female Adaptor Cable
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Keep your existing displays while using DisplayPort sources. With the DP2DVIF (DisplayPort to DVI) adapter you can connect a DisplayPort source to a DVI-D display. This adapter supports resolutions up to 1920x1200 allowing you to take full advantage of a dual-link DVI capability.
Features:
- Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
- Supports DisplayPort 1.1a input and DVI output
- Supports DVI highest video resolution 1080p
- Supports DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- Supports DVI 12bit per channel (36bit all channel) deep color
- Power supply: +3.3V (From DisplayPort)
- RoHS Compliant
- Lifetime Warranty
| Performance Grade | Good |
| Connector Type 1 | DisplayPort Male Input |
| Connector Type 2 | DVI-D Female Output |
| Resolution | Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p |
| Versions Supported | Mini DisplayPort 1.1a input and DVI 1.1v output |
| Bandwidth Supported | DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth. |
| Deep Color Supported | DVI 12bit per channel (36bit all channel) deep color |
| Weight Lbs | 0.2 |
| RoHS Compliant | Yes |
| Prop 65 Compliant | Yes |
| Warranty | Lifetime |
Keep your existing displays while using DisplayPort sources. With the DP2DVIF (DisplayPort to DVI) adapter you can connect a DisplayPort source to a DVI-D display. This adapter supports resolutions up to 1920x1200 allowing you to take full advantage of a dual-link DVI capability.
Features:
- Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
- Supports DisplayPort 1.1a input and DVI output
- Supports DVI highest video resolution 1080p
- Supports DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- Supports DVI 12bit per channel (36bit all channel) deep color
- Power supply: +3.3V (From DisplayPort)
- RoHS Compliant
- Lifetime Warranty
| Performance Grade | Good |
| Connector Type 1 | DisplayPort Male Input |
| Connector Type 2 | DVI-D Female Output |
| Resolution | Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p |
| Versions Supported | Mini DisplayPort 1.1a input and DVI 1.1v output |
| Bandwidth Supported | DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth. |
| Deep Color Supported | DVI 12bit per channel (36bit all channel) deep color |
| Weight Lbs | 0.2 |
| RoHS Compliant | Yes |
| Prop 65 Compliant | Yes |
| Warranty | Lifetime |
