Comrex ACCESS NX - Portable IP Audio Codec


  • Dale #:

    COMR-95003000
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Since ACCESS was introduced over a decade ago, it has become the world's leading IP audio codec. And in that time, IP transmission technology has developed significantly. Comrex has taken this world-class platform, along with the last decade of technical growth, and built a brand new platform for... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Since ACCESS was introduced over a decade ago, it has become the world's leading IP audio codec. And in that time, IP transmission technology has developed significantly. Comrex has taken this world-class platform, along with the last decade of technical growth, and built a brand new platform for the future - ACCESS NX. ACCESS NX is the ultimate tool to take advantage of these advances. Designed from the ground up as a platform for CrossLock, Comrex's sophisticated custom reliability layer, ACCESS NX is the next step in innovative portable broadcasting.

Features:

  • Two USB ports
  • 5-inch capacitive touch screen
  • Built-in Ethernet port
  • Built-in battery - up to 6.5 hours of talk time (5 hours with mixer)
  • AAC family and Opus encoders
  • CrossLock Technology
  • Optional mixer


IP Networks
IP infrastructure is growing rapidly, and networks are available virtually everywhere. ACCESS NX offers several ways to get connected.

ACCESS NX comes with a Wi-Fi modem, along with an integrated Ethernet port for connecting to wired DSL or broadband cable. ACCESS NX can also accommodate connections to 3G/4G cellular data networks using Comrex supported USB devices.

For those who need to use public Wi-Fi, ACCESS NX can log in to IP networks through the integrated web browser. This allows users to type credentials into login screens and agree to usage terms, which expands networking options.

Still need to use POTS? ACCESS NX is compatible with a USB POTS/PSTN modem for use on legacy analog phone lines (sold separately).

CrossLock Technology
ACCESS NX has been designed from the ground up to support CrossLock technology. The most advanced network management tool on the market today, CrossLock gives users the ability to use multiple IP networks together simultaneously. When a new network is introduced, Crosslock will immediately evaluate how much bandwidth is available, while factoring in latency and jitter information, and combine the two connections to take advantage of all available bandwidth.

More than just combining networks, CrossLock can also monitor and dynamically adjust how much of your stream is being placed on each network, in real time. When necessary, CrossLock can apply appropriate error correction, recovery, or concealment techniques. And when a network becomes unusable, CrossLock can isolate it, without any user intervention.

User Experience

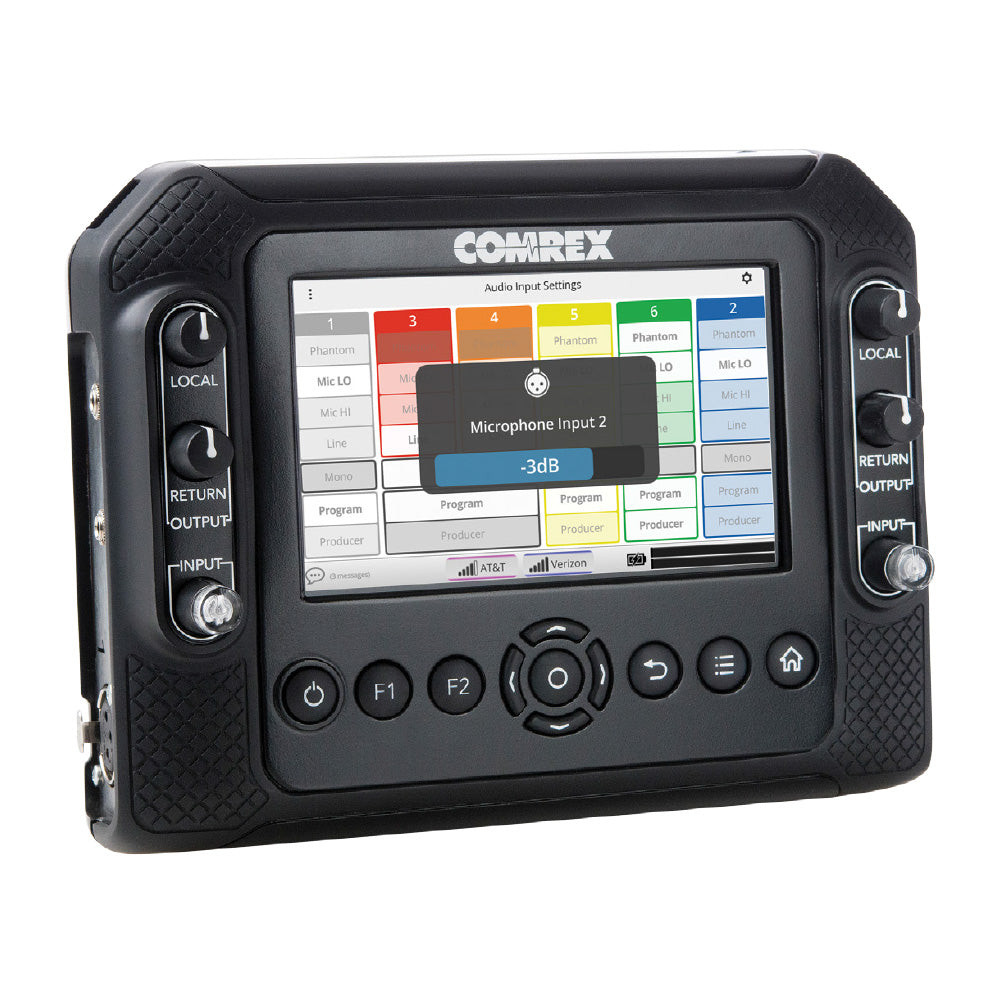

Equipped with a 5-inch capacitive touch screen, it's simple to operate ACCESS NX in the field. Plus, with an improved user interface, ACCESS NX is designed to be even more user friendly than its predecessor.

Rackmount
While the ACCESS NX has been optimized to provide complete mobility and solid reliability, the ACCESS Rack has been designed as its perfect studio counterpart. The 1U 19" rack mount ACCESS features balanced stereo XLR inputs and outputs, AES I/O on XLR, Ethernet port, POTS modem, multiple USB ports, and serial and contact closure ports. ACCESS Rack can be directly controlled with a keyboard or mouse, a USB touch screen monitor, or driven with a standard web browser.

Codec Commander
Codec Commander is a free Microsoft Windowsapplication you can use to control your audio codec. You can manage your connections, check statistics, view audio metering, adjust audio profiles or change system settings. Click here to learn more.

Fleet Commander
Fleet Commander is a software application for controlling multiple Comrex IP audio codecs simultaneously. Rather than logging into each codec individually and juggling a desktop full of tabs, Fleet Commander puts you in control of your codec fleet through one unified interface. With the ability to manage all codecs from one simple window, this easy-to-use tool can save time and increase productivity for busy engineers. (Sold separately.)

More +

Product Specs

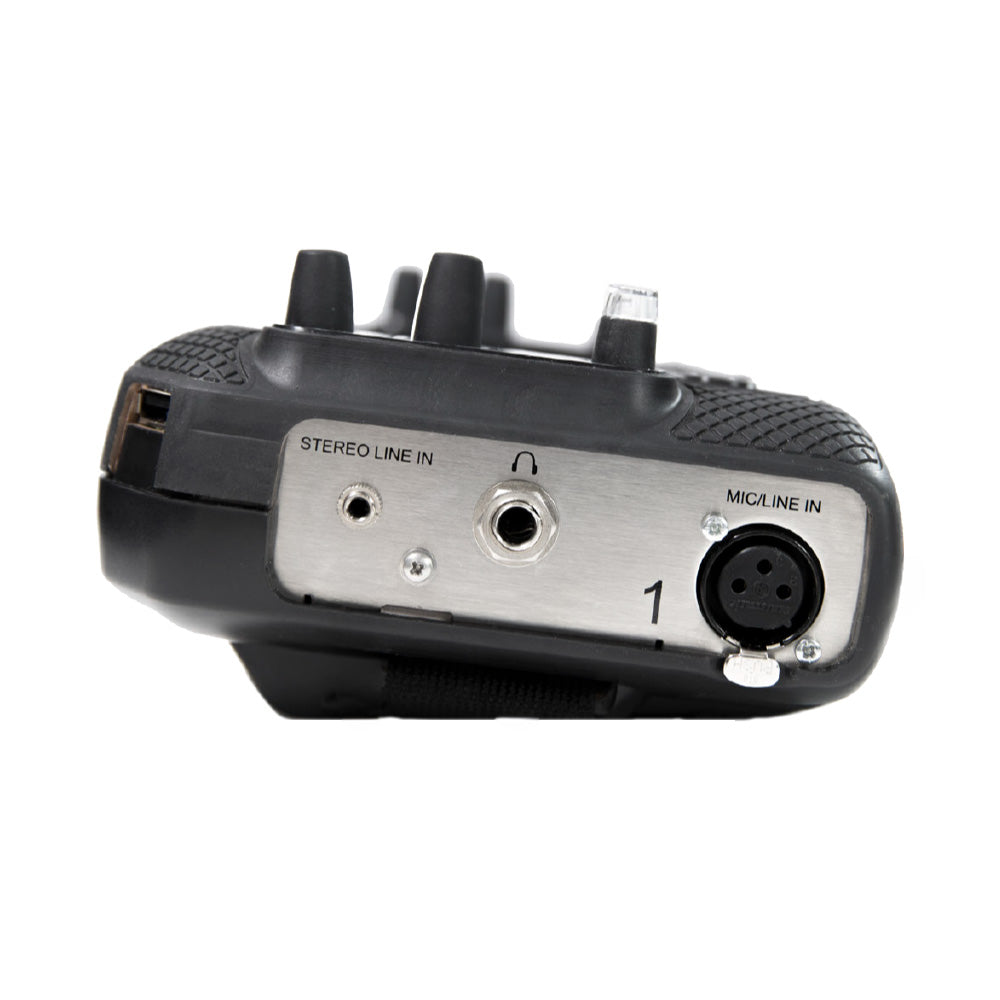

Inputs Two mic/line switchable XLR inputs
Dedicated stereo line input
Outputs Two ¼” stereo headphone outputs
Fixed stereo line output (source selectable)
Processing Digital mixing and headphone busses
Digital peak limiting
Selectable producer feed – mic channels can be routed directly into local headphones only
Battery Internal lithium ion battery – up to 6.5 hours of talk time (5 hours when using mixer)
Field changeable Optional external battery charger

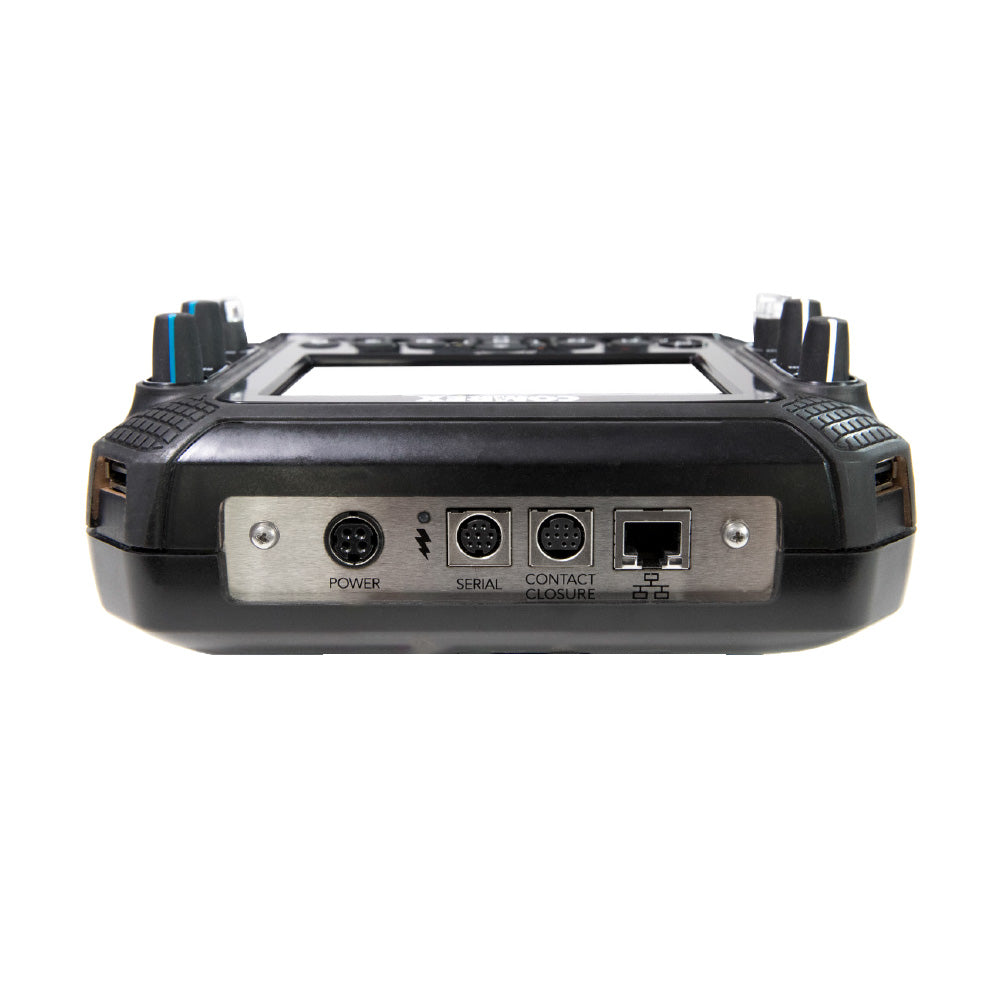

Communications Serial data with 4 I/O contact closures
Network Built-in Ethernet port
Two USB jacks
Operates on 3G/4G networks, Wi-Fi, Ethernet, and POTS (with optional POTS modem)
Operation 5 inch capacitive touchscreen
Can also be controlled with web browser, Codec Commander, or Fleet Commander
