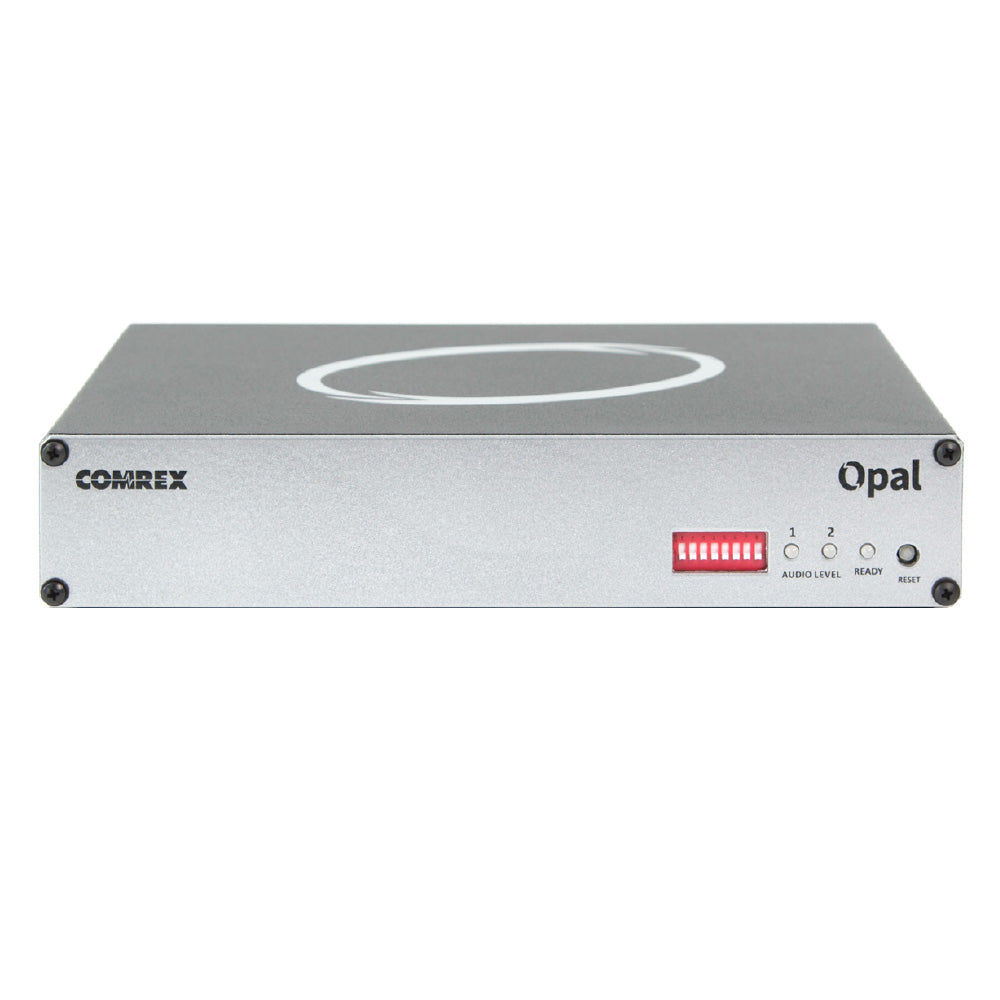

Comrex Opal - IP Audio Gateway for Remote Interviews/Conferencing



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:COMR-95004000

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Call for Price

Shipping Charges Apply
  • Guest interviews don’t have to be complicated.

    Expert guests (like entertainers, political pundits, athletes, and others) don’t always have access to engineers. They need something as simple to use and familiar as a phone call. But that doesn’t mean a radio program should settle for phone quality audio.

    Opal is an IP audio gateway that enables guests to connect to the studio by simply clicking a link. It provides HD quality audio from consumer-grade equipment, like a cellphone or a computer with a microphone. It’s easy enough to use without a technical background, and most importantly, it sounds great.

    Features:

    • Interoperable with Chrome, Firefox, and Opera
    • Supports two discrete connections at once
    • Occupies ½U rackspace
    • Opus encoder


    Simplicity
    Opal enables guests to connect to the studio by simply clicking a link. Unlike Skype and other apps, the remote guest doesn’t install a thing – they just click a button, and go live. This simplicity means that guests with no technical background can connect and transmit HD audio.

    Compatibility
    Opal works by activating the Opus encoder built into commonly used browsers, including Chrome, Firefox, and Opera. As a result, Opal can connect to any computer or Android device with one of those browsers installed. All a remote guest needs to transmit audio is a browser and a microphone.

    Opus Encoder
    Opus is a ubiquitous encoder that is built into browsers like Chrome, Firefox, and Opera. Opus transmits high-fidelity, low delay audio in both directions. It uses very little network bandwidth, so it’s highly reliable.

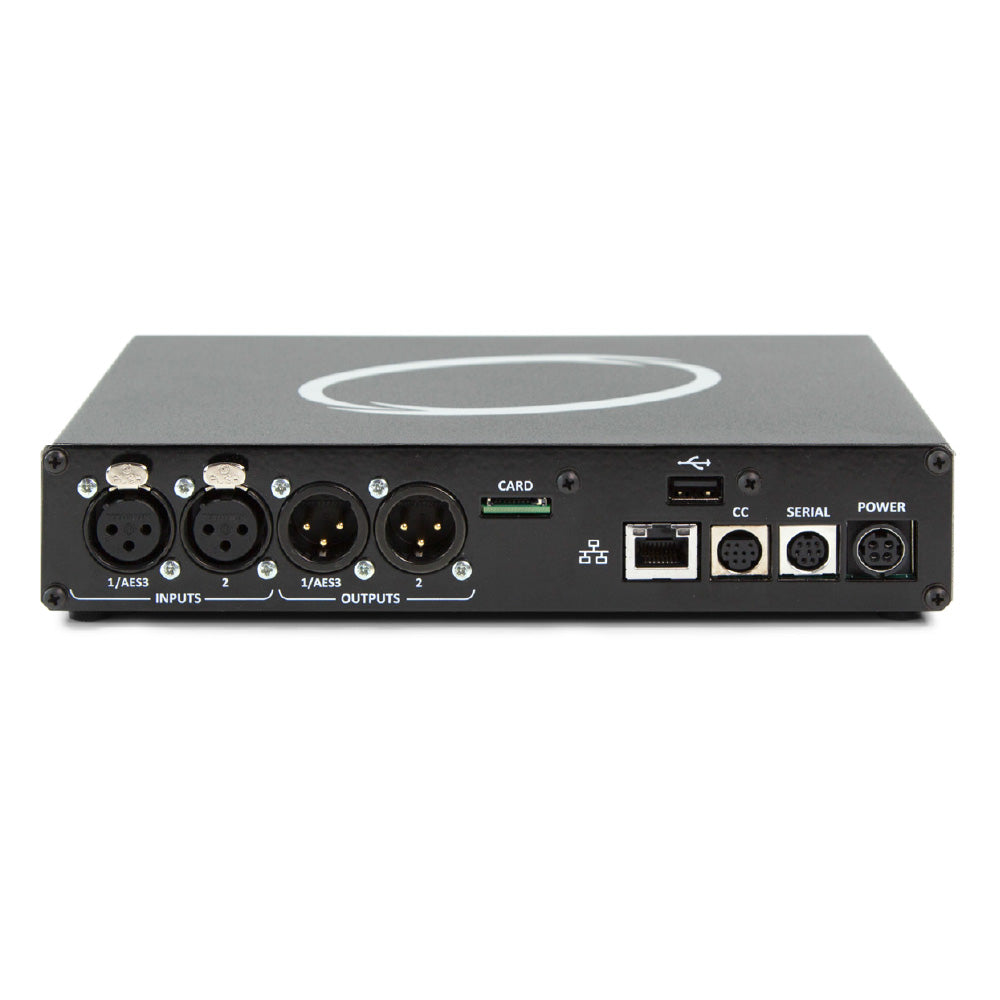

  • Audio Connections Balanced Ch 1/2 XLR line-level audio input (0dBu)
    Balanced Ch 1/2 XLR line-level audio output (0dBu)
    AES3 XLR Digital audio input (through Ch 1 XLR input when switched)
    AES3 XLR Digital audio output (through Ch 1 XLR output when switched)
    Other Connections Ethernet port (1000Base-T)
    Contact closures (9-pin mini DIN)
    Serial port (8-pin mini DIN) (for future use)
    Power (4 pin connector for external 24VDC supply)
    Audio Levels Balanced audio input level: 0 dBu
    Balanced audio output level: 0 dBu
    Full scale is 20 dB above nominal
    Power External supply (24VDC 20 Watts)
    Size (8.5” W x 6.25” D x 1.75” H; 21.59 cm W x 15.88 cm D x 4.45 cm H)
    Weight 2.16 lbs; 0.98 kg
    Monitoring L & R tri color LEDs display channel status/audio level
