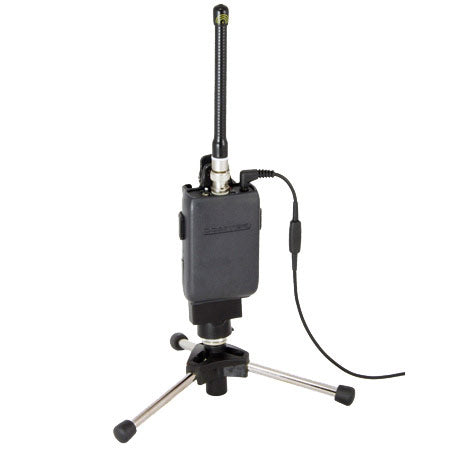

Comtek M216-P7 Digital Wireless Microphone Transmitter (BNC/Aux/Bass)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The M-216 wireless microphone transmitter offers the ultimate performance and versatility for assistive listening, language interpretation, tour guide presentations, personal cueing, and for other personal remote transmission situations. For use with the PR-216 and PR-216 Option 7 synthesized receivers.
Features:
- High Fidelity Performance
- Adaptive Channel Selection
- Low Power Consumption
- Dual Function Versatility
| Audio Input | Microphone input impedance for electret type microphone - 3000 ohm Aux/Line input impedance - 10 k ohm at 0 dB nominal |
| Connectors | |
| Microphone | Micro-mini mono 2.5 mm |
| Auxiliary | Mini stereo 3.5 mm |
| Audio | Tip and sleeve |
| Battery Charging | + Tip, _ sleeve |
| 9 volt DC input | + Ring, _ sleeve(with current limiting) |
| Controls and Indicators | Synthesized channel selection switches Power On/Off switch Optional microphone muting switch Audio input gain control Power/Battery status indicator Audio (voice level) modulation indicator Companded auto/off switch (optional) |
| Frequency Response | 80 Hz to 10 kHz |
| Audio Distortion | Less than 1% at 80% modulation |
| Modulation Limiter | Soft compressor with 30 dB linear overload protection, attack time - less than 1 ms, recovery time - 10 ms |
| Frequency Modulation | 10 kHz deviation |
| Operating Radio Frequency | 57 synthesized frequencies in the 216-217 MHz LPRS band under FCC part 95 |
| Out-of-Band Emissions | Better than 45 dB below carrier |
| R.F. Stability | 20 ppm XTL controlled Digitally synthesized |
| RF Power Output | 10 mW to antenna system |
| Antenna System | Body-worn microphone cord,or whip plugged directly into microphone connector when auxiliary input is used |
| Current Drain | 18 mA constant current |
| Battery | 9 volt alkaline Eveready 522 or equivalent for up to 30 hours of operation 9 volt Nickel-Metal Hydride rechargeable battery for up to 10 hours of operation |
| Dimensions | 1 1/16" x 2 1/4" x 3 1/2"(27 mm x 57 mm x 89 mm) |
| Weight | 5 ounces (140 grams) |
| FCC Compliance | Certification under Part 95 |
The M-216 wireless microphone transmitter offers the ultimate performance and versatility for assistive listening, language interpretation, tour guide presentations, personal cueing, and for other personal remote transmission situations. For use with the PR-216 and PR-216 Option 7 synthesized receivers.
Features:
- High Fidelity Performance
- Adaptive Channel Selection
- Low Power Consumption
- Dual Function Versatility
| Audio Input | Microphone input impedance for electret type microphone - 3000 ohm Aux/Line input impedance - 10 k ohm at 0 dB nominal |
| Connectors | |
| Microphone | Micro-mini mono 2.5 mm |
| Auxiliary | Mini stereo 3.5 mm |
| Audio | Tip and sleeve |
| Battery Charging | + Tip, _ sleeve |
| 9 volt DC input | + Ring, _ sleeve(with current limiting) |
| Controls and Indicators | Synthesized channel selection switches Power On/Off switch Optional microphone muting switch Audio input gain control Power/Battery status indicator Audio (voice level) modulation indicator Companded auto/off switch (optional) |
| Frequency Response | 80 Hz to 10 kHz |
| Audio Distortion | Less than 1% at 80% modulation |
| Modulation Limiter | Soft compressor with 30 dB linear overload protection, attack time - less than 1 ms, recovery time - 10 ms |
| Frequency Modulation | 10 kHz deviation |
| Operating Radio Frequency | 57 synthesized frequencies in the 216-217 MHz LPRS band under FCC part 95 |
| Out-of-Band Emissions | Better than 45 dB below carrier |
| R.F. Stability | 20 ppm XTL controlled Digitally synthesized |
| RF Power Output | 10 mW to antenna system |
| Antenna System | Body-worn microphone cord,or whip plugged directly into microphone connector when auxiliary input is used |
| Current Drain | 18 mA constant current |
| Battery | 9 volt alkaline Eveready 522 or equivalent for up to 30 hours of operation 9 volt Nickel-Metal Hydride rechargeable battery for up to 10 hours of operation |
| Dimensions | 1 1/16" x 2 1/4" x 3 1/2"(27 mm x 57 mm x 89 mm) |
| Weight | 5 ounces (140 grams) |
| FCC Compliance | Certification under Part 95 |
