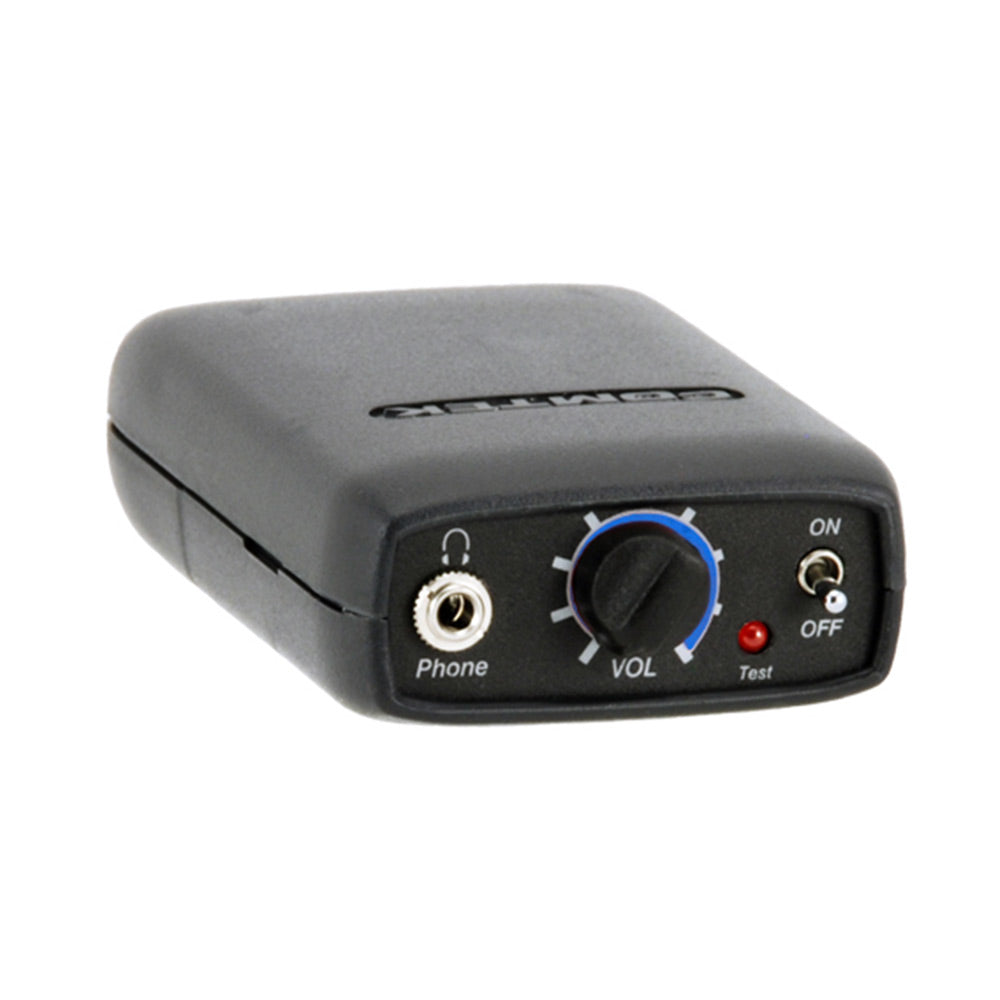

Comtek PR-216 76-88 Frequency Synthesized IFB Personal Receiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PR-216 76-88 is a professional quality, personal monitor receiver designed to meet the high demands of the TV, motion picture production, and entertainment industries. In the motion picture industry, this receiver is used by directors and dignitaries for remote program monitoring, as well as for talent cueing and monitoring for boom-operators and crew members. It is used in TV production studios and ENG trucks for director IFB, talent cueing and camera crews.
The PR-216 76-88 is our most advanced, high fidelity, personal monitor receiver incorporating both advanced digital and analog technologies. This receiver offers superior audio performance with the convenience of synthesized frequency agility and is compatible with the BST-25 Base Station Transmitter.
Features:
- 199 User-Selectable Channels
- High Audio Output Power
- Rugged and Durable Case
| Audio Output | Headset output +16 dBu (low impedance) |
| Connector | Stereo/mono 3.5 mm audio output connector |
| Indicators | LED Power/Battery indicator |
| Controls | ¥ Power On/Off switch ¥ Volume control (50 dB range) ¥ Rotary channel selector switches |
| Audio Frequency Response | 100 Hz to 10 kHz |
| Harmonic Distortion | Less than 1% (80% modulation) |
| Operating Radio Frequency | 76-88 MHz |
| Frequency Stability | 0.002% frequency synthesized crystal controlled |
| RF Sensitivity | 0.3 uV for 12 dB SINAD |
| Adjacent Channel Rejection | 65 dB 50 kHz off-channel |
| Spurious Rejection | 60 dB (image excluded) |
| Ultimate Quieting | Better than 95 dB (companded) |
| Deviation Acceptance | Up to 10 kHz |
| Antenna | Integral with headphone cable (no external antenna) |
| Current Drain | 15 mA nominal (Idle) |
| Power Requirements | 9 volt alkaline battery |
| Dimensions | 1 1/6Ó x 2 1/2Ó x 3 1/4Ó (27 mm x 57 mm x 83 mm) |
