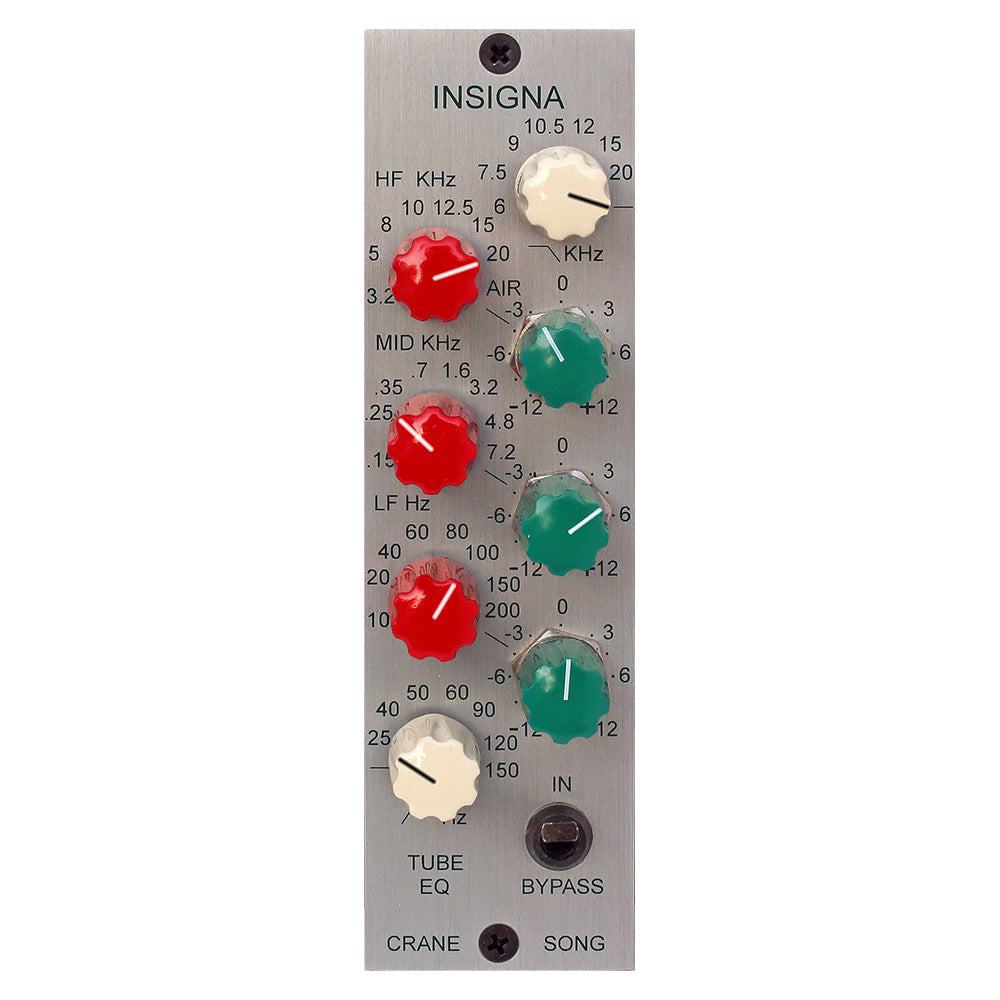

Crane Song INSIGNA - 500 Series Tube Equalizer Module
DALE SKU # CRAN-INSIGNA

Crane Song INSIGNA - 500 Series Tube Equalizer Module

Sale price$1,449.00

  • Availability:

    Special Order Item

  • Crane Song products are made to order in the USA - please contact us for lead time.

    • LET OUR TEAM OF EXPERTS ASSIST YOU

    Call Us Chat With Us

    Description

    INSIGNA is a tube equalizer in a 500 series package, using a dual triode circuit with a 12AX7 tube. The eq has 24 db/oct high pass and low pass filters each with 7 frequencies. The top and bottom band are shelving each with 8 frequencies. The mid band is peaking with 8 frequencies. The three bands work by using buffered RC circuits in the negative feedback path around the tube amplifiers.  The result is a fat sounding eq rich in second harmonic triode tube color.

    Maximum input +24dbu
    Maximum Output +25dbu
    Frequency Response 1Hz to 100KHz
    Noise Floor -84 dbu 20Hz to 20KHz
    Input Impedance 32K ohms
    Output Impedance 160 ohms
    Current Consumption 120mA
    Weight 1.7 lbs
    Number of Channels 1
    Number of EQ Sections 37
    Switch Ranges High Pass: 7 + Flat
    Low Pass: 7 + Flat
    Low Shelf: 8 (10 Hz - 200 Hz)
    Mid Bell: 8 (150 Hz - 7.2 kHz)
    High Shelf: 8 (3.2 kHz - AIR)
    Bypass Switch True Bypass - Hard Bypass

    INSIGNA is a tube equalizer in a 500 series package, using a dual triode circuit with a 12AX7 tube. The eq has 24 db/oct high pass and low pass filters each with 7 frequencies. The top and bottom band are shelving each with 8 frequencies. The mid band is peaking with 8 frequencies. The three bands work by using buffered RC circuits in the negative feedback path around the tube amplifiers.  The result is a fat sounding eq rich in second harmonic triode tube color.

    Maximum input +24dbu
    Maximum Output +25dbu
    Frequency Response 1Hz to 100KHz
    Noise Floor -84 dbu 20Hz to 20KHz
    Input Impedance 32K ohms
    Output Impedance 160 ohms
    Current Consumption 120mA
    Weight 1.7 lbs
    Number of Channels 1
    Number of EQ Sections 37
    Switch Ranges High Pass: 7 + Flat
    Low Pass: 7 + Flat
    Low Shelf: 8 (10 Hz - 200 Hz)
    Mid Bell: 8 (150 Hz - 7.2 kHz)
    High Shelf: 8 (3.2 kHz - AIR)
    Bypass Switch True Bypass - Hard Bypass
