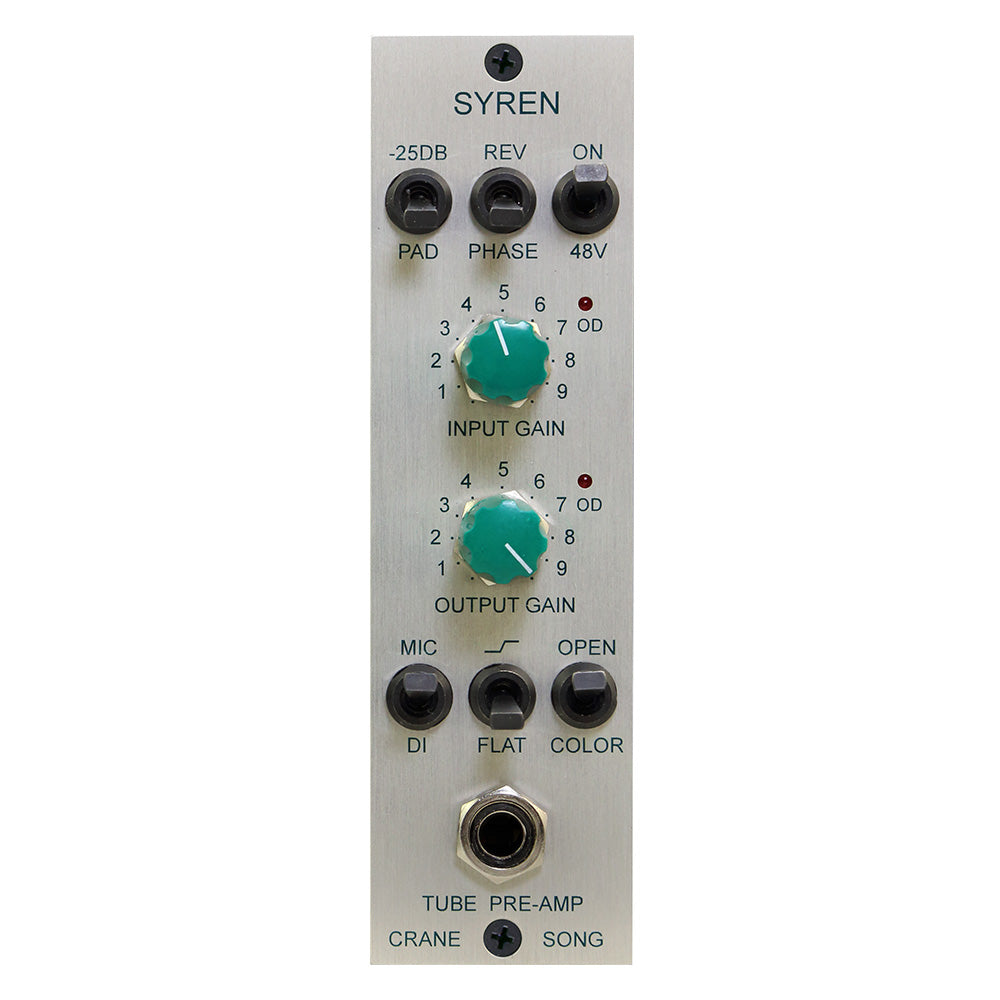

Crane Song Syren 500 Series Tube Mic Preamp Module


  • Dale #:

    CRAN-SYREN
  • Availability:

    Special Order Item
  • Crane Song products are made to order in the USA - please contact us for lead times.

Description

SYREN is a classic sounding tube preamp in a 500 series package, using a dual triode circuit with a 12AX7 tube. SYREN features a dual gain stage circuit and allows overdrive effects. A switch selectable HI-z input is included.  The low cut filter is at 90 Hz and is 24 db/ octave.  The pad has -15... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

SYREN is a classic sounding tube preamp in a 500 series package, using a dual triode circuit with a 12AX7 tube. SYREN features a dual gain stage circuit and allows overdrive effects. A switch selectable HI-z input is included.  The low cut filter is at 90 Hz and is 24 db/ octave.  The pad has -15 db and -25 db settings to allow a wide input range of signals. The audio path color is changed by modifying the second stage tube circuit so it has negative feedback or does not have negative feedback. This changes the interaction between the tube stages and thus the sound of the pre-amp. With negative feedback it is a more accurate audio path with wider frequency response and without negative feedback it has a more open warmer sound.

More +

Product Specs

Pad 0, -15, -25 db steps
Max Gain 65db
Filter 90Hz 24 db/oct
Power 100mA with self resetting fuses
Output At 40db of gain, 0dbu output and a 150 ohm source
Harmonic Distortion 0.5% second harmonic
Noise -84dbu
Frequency Response 6Hz to 80Khz
Tube 12AX7B, selected for low microphonics
Transformers Lundahl Mu metal shielded transformers for both input and output

More +
