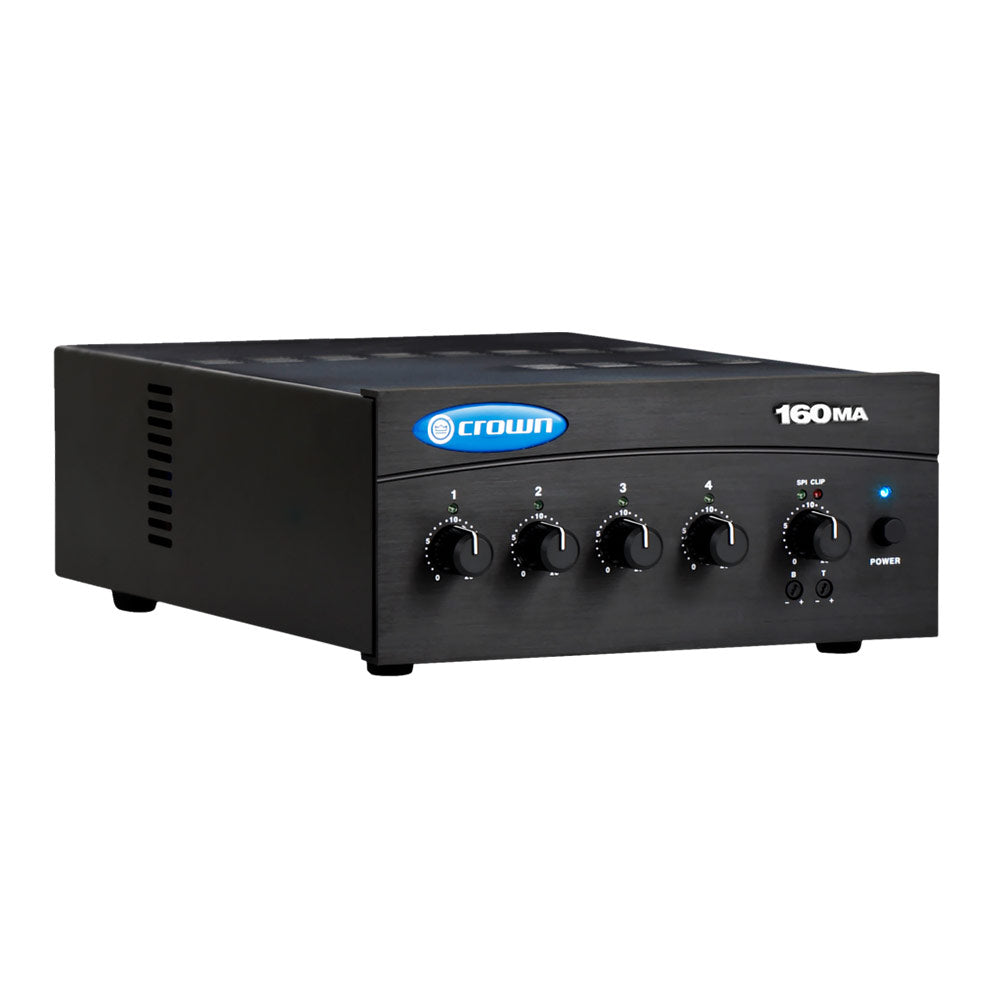

Crown 160MA 4-Channel 60-Watt Commercial Mixer/Amplifier
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Crown 160MA is a high value mixer-amplifiers for commercial audio. It provides 8 ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and Bass and Treble controls.
Features:- 4 inputs (each with a volume control), and one 60Wamplifier output channel
- Ideal for paging, background music, and music-on-hold
- Balanced Phoenix-type mic/line input, telephoneoutput, dual RCA stereo music inputs, screw-terminal speaker outputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Three-Year, No-Fault, Fully Transferable Warranty completely protects yourinvestment and guarantees its specifications
| Frequency Response | (at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB |
| Signal to Noise Ratio | (ref. to rated power, master volume at minimum): Mic:> 58 dB, Line:> 60 dB, Telephone:> 60dB, Inputs 2 or 3:> 78 dB |
| THD+Noise | < 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz |
| Input Sensitivity | (for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV |
| Input Impedance (nominal) | Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms |
| Crosstalk | -82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum) |
| Line Output Level (nominal) | 1V into 10 kilohms |
| Phantom Power | 15 VDC |
| AC Line Voltages Available | Universal Power Supply. Line voltage tolerance +15%, -20% |
| Operating Temperature/Humidity | 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing) |
| Storage Temperature | -20 degrees C to 85 degrees C |
| IEC Power Connector | 15A |
The Crown 160MA is a high value mixer-amplifiers for commercial audio. It provides 8 ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and Bass and Treble controls.
Features:- 4 inputs (each with a volume control), and one 60Wamplifier output channel
- Ideal for paging, background music, and music-on-hold
- Balanced Phoenix-type mic/line input, telephoneoutput, dual RCA stereo music inputs, screw-terminal speaker outputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Three-Year, No-Fault, Fully Transferable Warranty completely protects yourinvestment and guarantees its specifications
| Frequency Response | (at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB |
| Signal to Noise Ratio | (ref. to rated power, master volume at minimum): Mic:> 58 dB, Line:> 60 dB, Telephone:> 60dB, Inputs 2 or 3:> 78 dB |
| THD+Noise | < 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz |
| Input Sensitivity | (for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV |
| Input Impedance (nominal) | Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms |
| Crosstalk | -82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum) |
| Line Output Level (nominal) | 1V into 10 kilohms |
| Phantom Power | 15 VDC |
| AC Line Voltages Available | Universal Power Supply. Line voltage tolerance +15%, -20% |
| Operating Temperature/Humidity | 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing) |
| Storage Temperature | -20 degrees C to 85 degrees C |
| IEC Power Connector | 15A |
