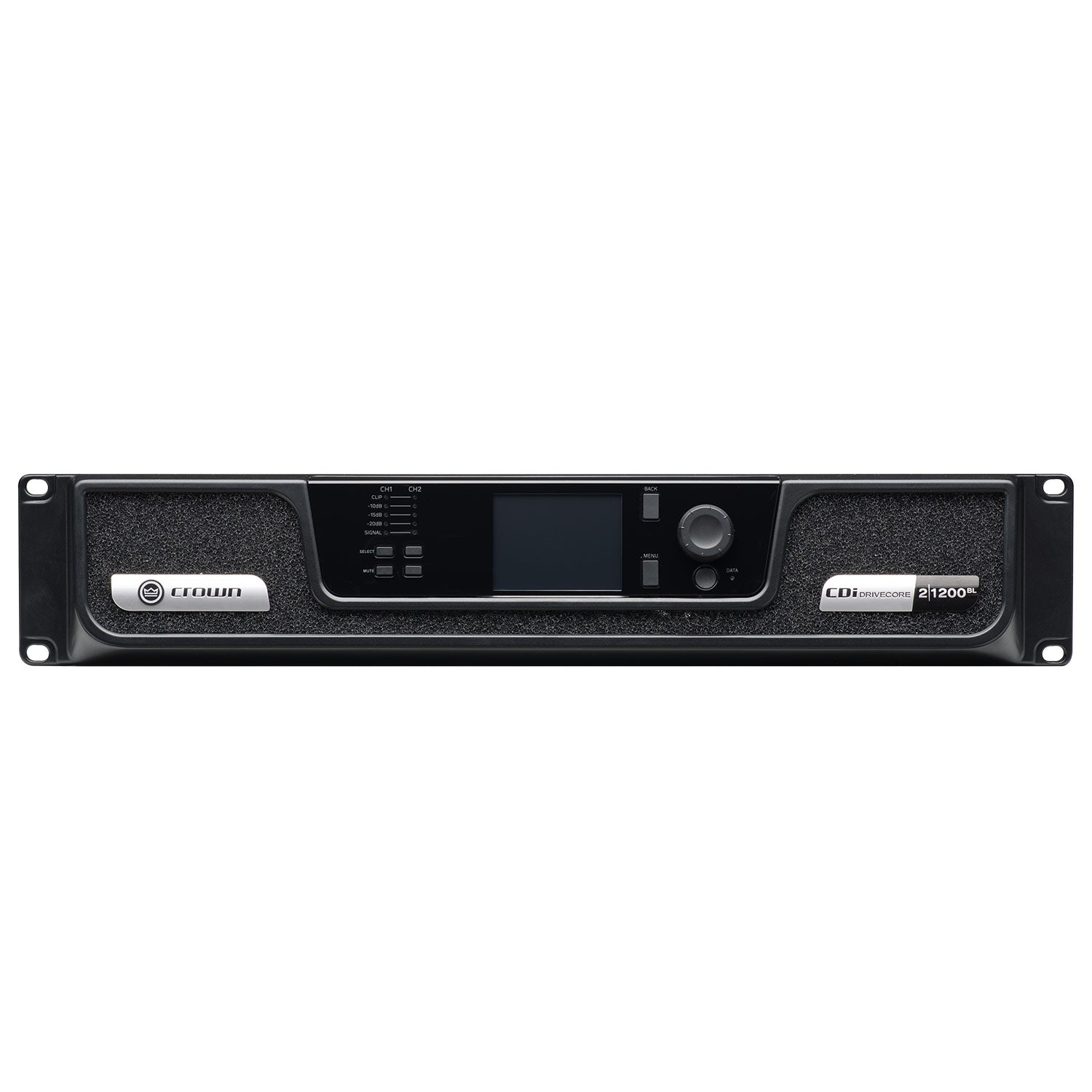

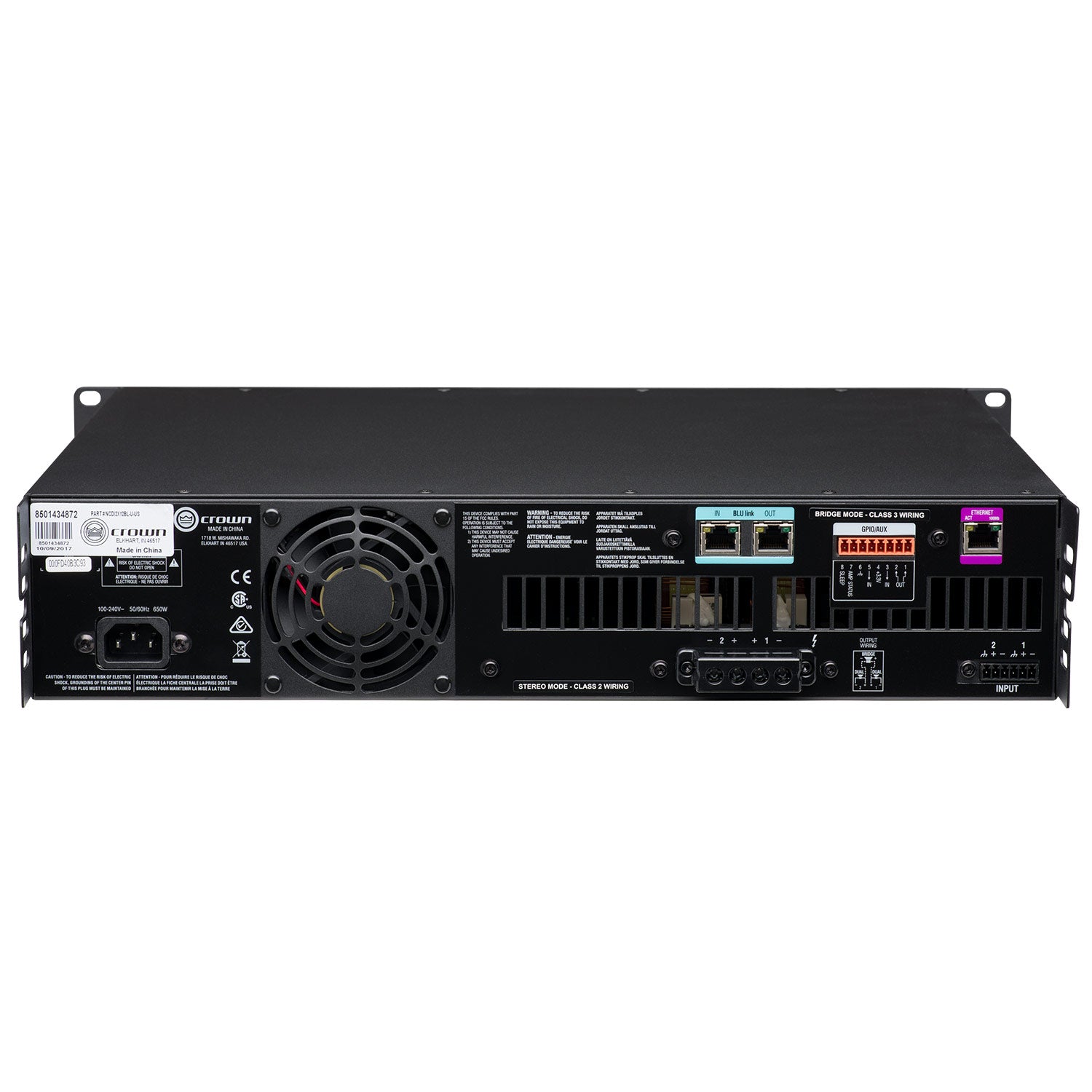

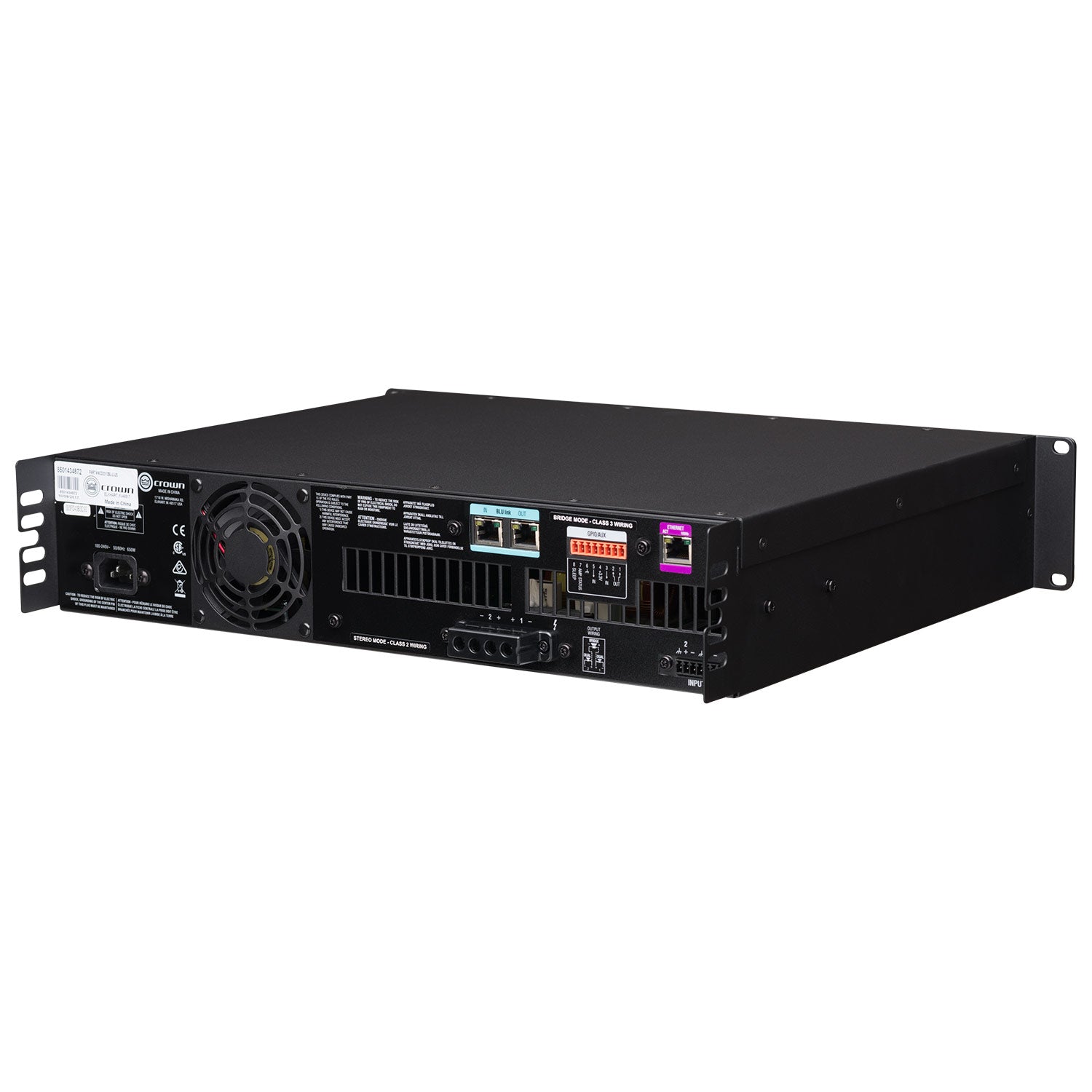

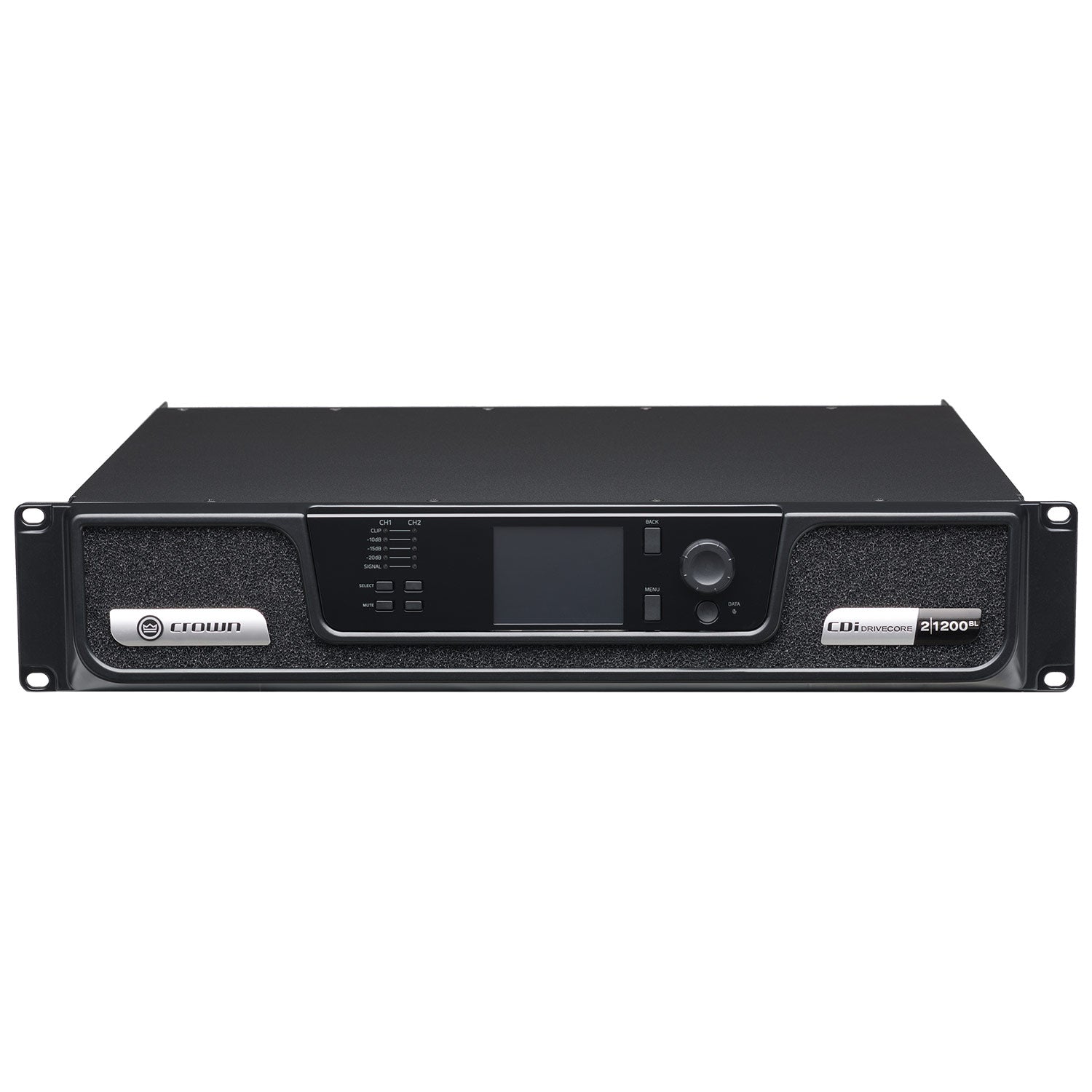

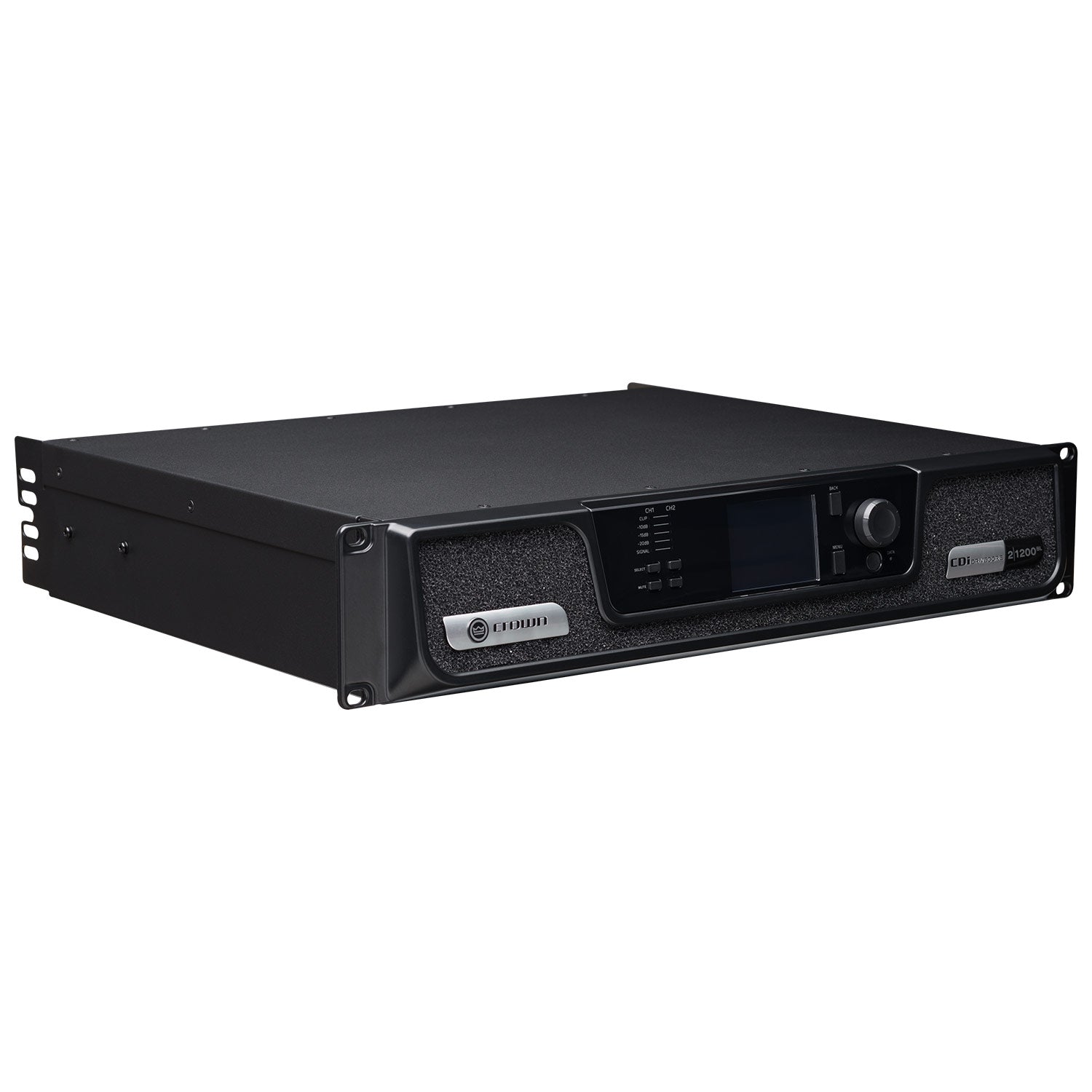

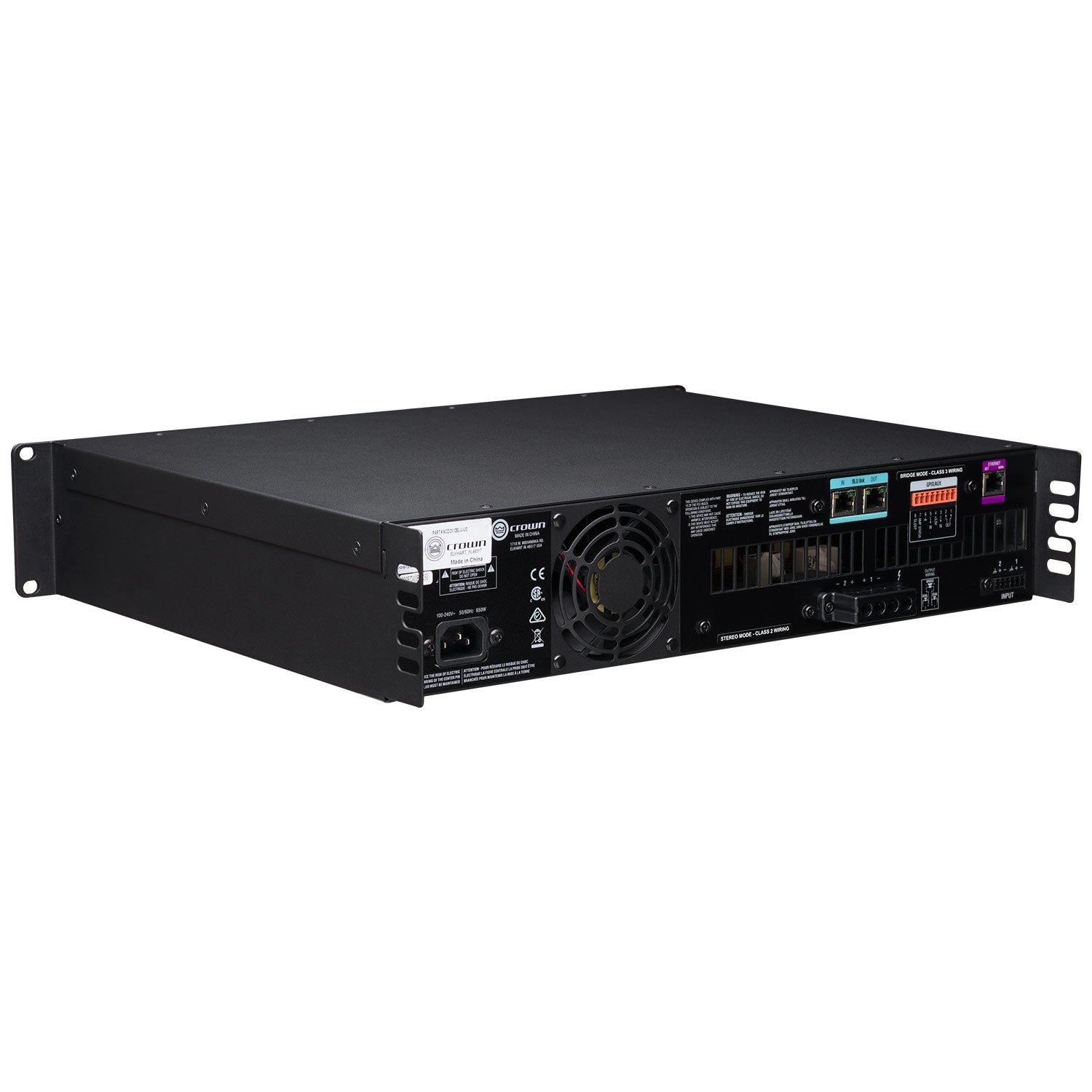

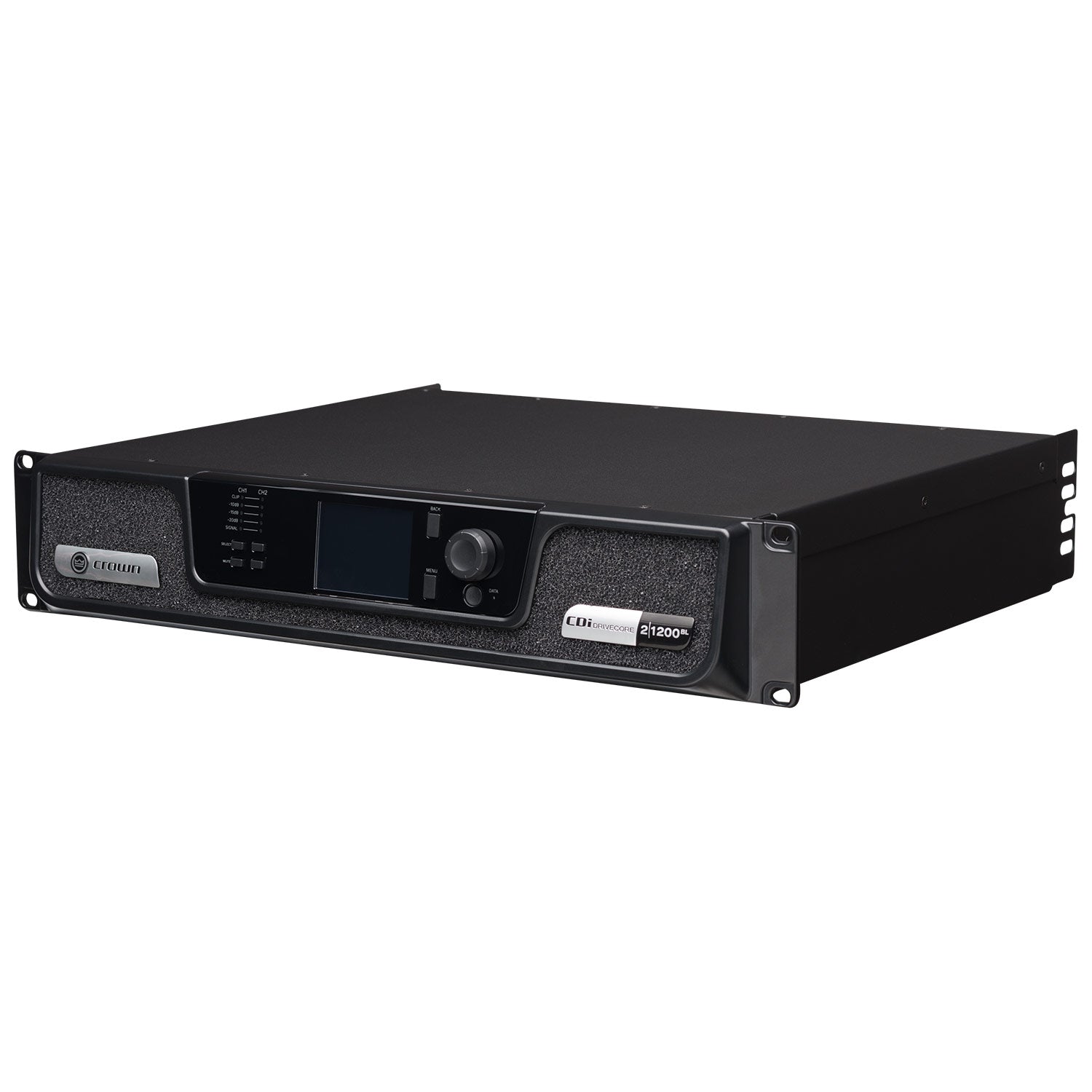

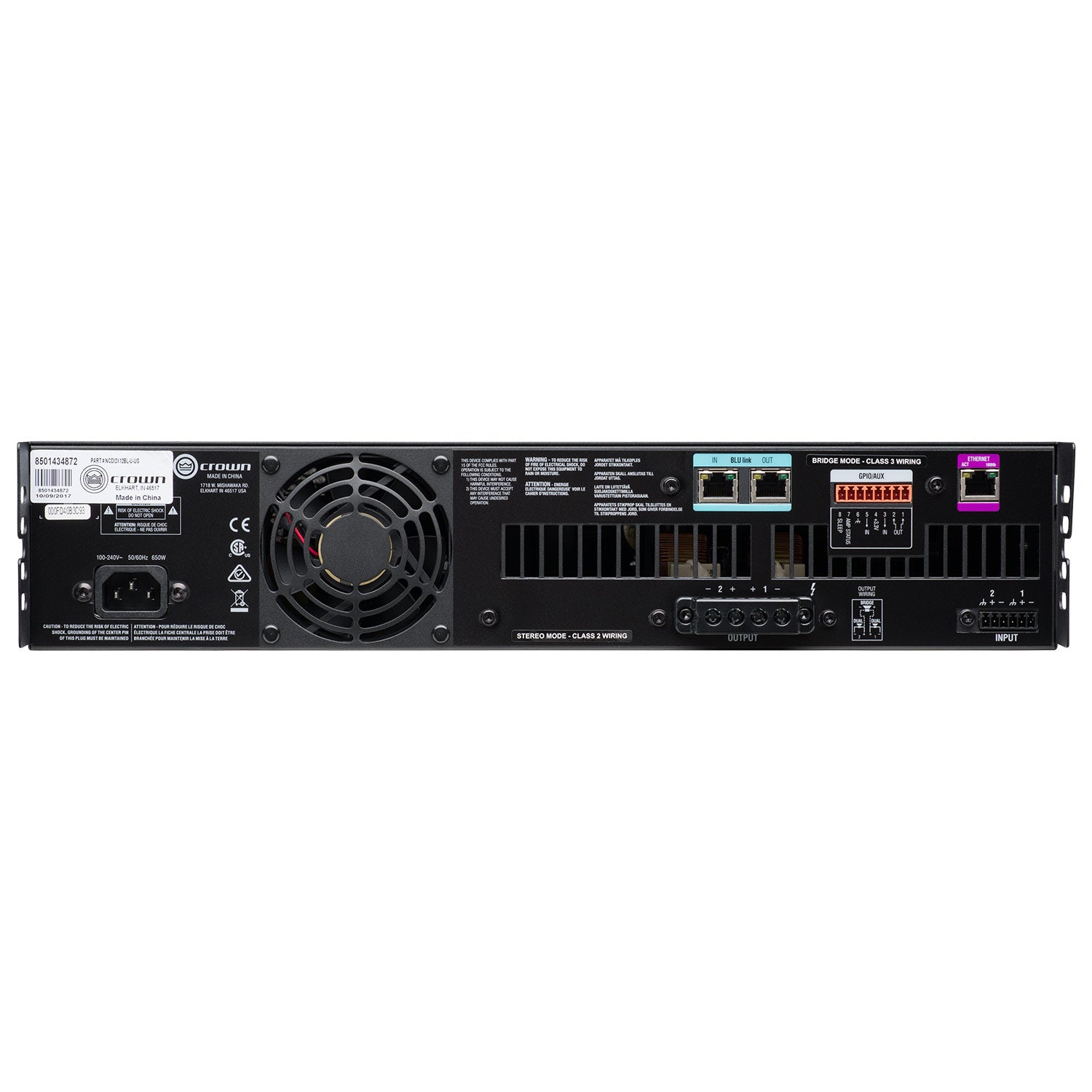

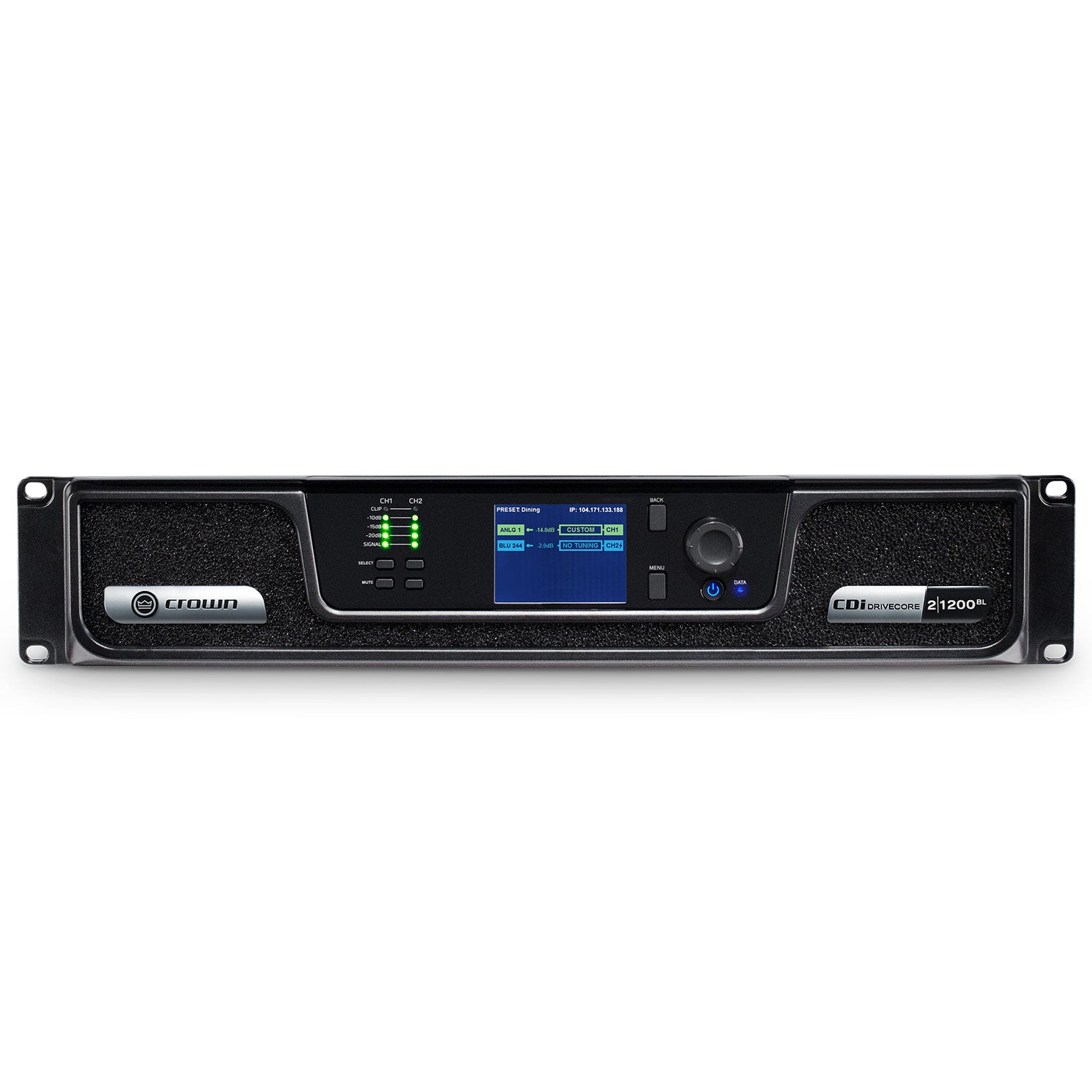

Crown CDi 2|1200BL DriveCore Install 2-Channel Power Amplifier with BLU Link
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200BL offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200BL is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The 2|1200BL also comes with BLU link, adding the ability to send and receive channels over HARMAN's digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Features:
- DriveCore™ Technology – Crown's proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
- Network Control and Monitoring – Through HARMAN's HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
- DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration
- BLU link (BL models only) – Both receive and send channels over HARMAN's 256 channel, fault-tolerant audio BUS, BLU link.
- Direct Drive 70/100Vrms Output – Each output channel is capable of providing either 70V or 100V for high impedance applications.
- Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
- GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
- Pre-loaded Speaker Tunings – For quicker and easier setup and installation.
| Output Power: Dual Mode, All Channels Driven | 2 ohms: 850W 4 ohms: 1200W 8 ohms: 1200W 16 ohms: 600W 70Vrms: 1200W 100Vrms: 1200W |
| Output Power: Bridge Mono Mode, All Channels Driven | 4 ohms: 1200W 8 ohms: 2400W 16 ohms: 2400W 140Vrms: 2400W 200Vrms: 2400W |
| Channels | 2 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated Power Output (per channel @ 4 ohms) | 1200W |
| Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) | > 104dB |
| THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
| Damping Factor (20 Hz to 100 Hz) | > 1000 |
| Frequency Response (8½, 20 Hz - 20 kHz) | +/-0.25dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | > 80dB |
| Input Impedance (nominally balanced, nominally unbalanced) | 20 k½ balanced, 10 k½ unblanced |
| Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) | 19 x 3.5 x 14.71 |
| Weight | 17.2 lbs (7.8 kg) |
| Power Supply Connector | "15A IEC connector, 100 Ð 240V " |
