Availability: Usually ships in 5 - 10 Days

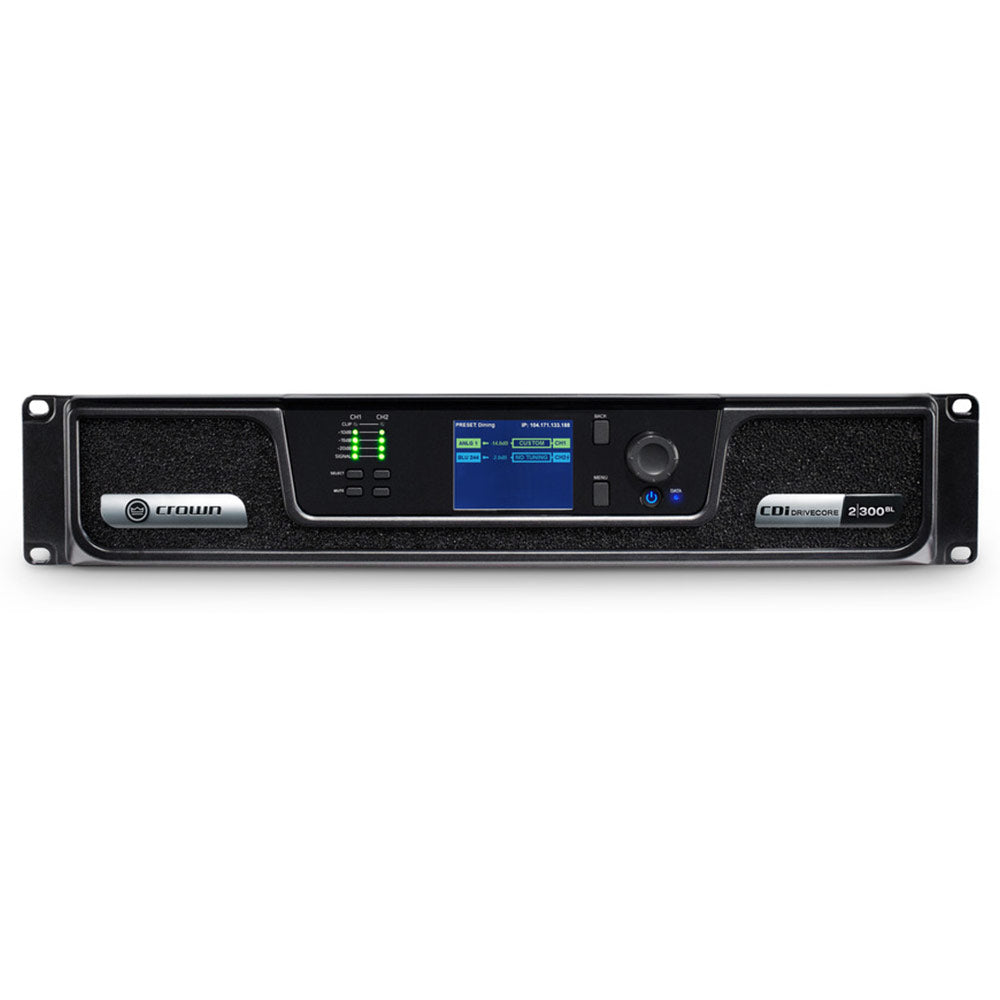

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance, rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore offers streamlined functionality to work in almost any small/medium installation, cinema, retail store, and more. Designed for ease-of-use in a variety of applications, the CDi DriveCore series is available in 2 or 4-channels and includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. Each variation of channel-count/output-power is also available with BLU link (BL models), adding the ability to send and receive channels over HARMAN’s digital audio BUS.
DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration
BLU link (BL models only) – Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link
Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications.
Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
|Dual Mode - All Channels Driven||2 ohms: 150W
4 ohms: 300W
8 ohms: 300W
16 ohms: 150W
70V RMS: 300W
100V RMS: 300W
|Bridge Mono Mode - All Channels Driven||4 ohms: 300W
8 ohms: 600W
16 ohms: 600W
140V RMS: 600W
200V RMS: 600W
|Digital Signal Processing||96kHz, 32-bit floating point|
|Voltage Gain (at maximum level setting) 4/8Ω, 70Vrms and 100Vrms Operation||34dB|
|Frequency Response (8Ω, 20Hz - 20kHz)||±0.5dB|
|BLU link Signal-to-Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) (BL Models only)||>108dB|
|Total Harmonic Distortion (at full rated power, from 20Hz - 20kHz)||0.35%|
|Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz)||>104dB|
|Intermodulation Distortion (60Hz and 7kHz at 4:1, from - 30dB to full rated power)||≤0.35%|
|Damping Factor (20Hz to 100Hz)||>1000|
|Crosstalk (below rated power, 20Hz to 1kHz)||>80dB|
|Common Mode Rejection (20Hz to 1kHz, typical)||>70dB|
|DC Output Offset (with inputs shorted)||±10mV|
|Input Impedance (Nominally balanced, nominally unbalanced)||20 kΩ balanced, 10 kΩ unblanced|
|Maximum Input Level (Low Amp Gain Mode)||+20dBU|
|Required AC Mains (±10%)||100V – 240V~ 50/60Hz|
|Cooling||Continuously variable speed forced air, front-to-back airflow|
|Power Supply Connector||Standard IEC type 320 inlet for detachable connector 100 – 240 V~|
|Load Impedance, Stereo/Dual Mode||2Ω - 16Ω; 70Vrms and 100Vrms|
|Load Impedance, Bridge Mono||4Ω - 16Ω; 140Vrms and 200Vrms|
|Maximum Fan Noise (re dB SPL @ 1M)||51dBA|
|Weight||14.56 lbs (6.6 kg)|
