Crown CDi 2000 Solid State Two-channel Power Amplifier with EQ & Delay (800W per channel @ 4 Ohms)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This power amplifier is a professional tool designed and built for installed sound applications. Rugged and lightweight, it offers incredible value in its class. It features an intuitive front-panel LCD screen to guide installers through configurations, and also offers onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more. Your investment in a CDi-Series power amplifier is backed by Crown's Three-Year, No-Fault, Fully Transferable Warranty.
Features
- Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
- Extremely versatile; rated for 2, 4, 8 ohm loads and 70V and 140V outputs
- Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults

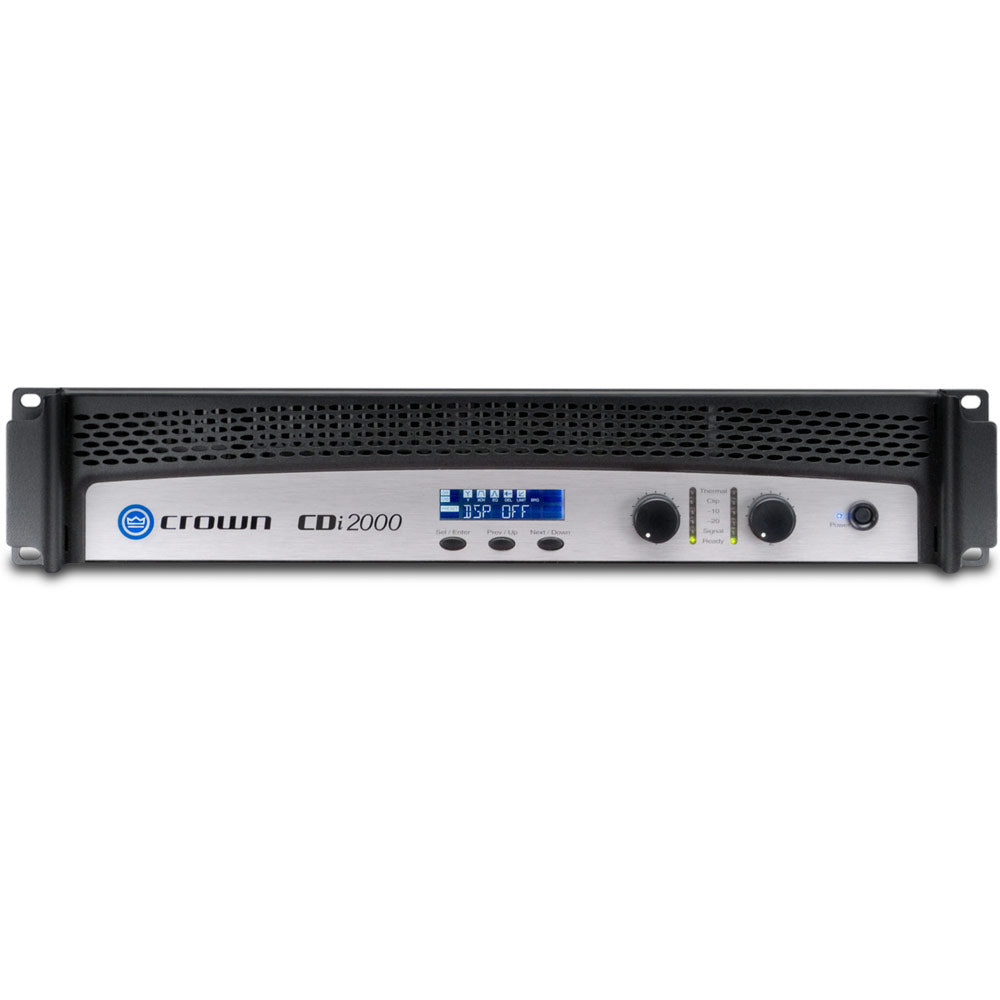

- Intuitive front-panel LCD screen for quick, easy configuration
- Switch-mode universal power supply
- Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
- Fills 2U rack spaces and weighs under 19 pounds

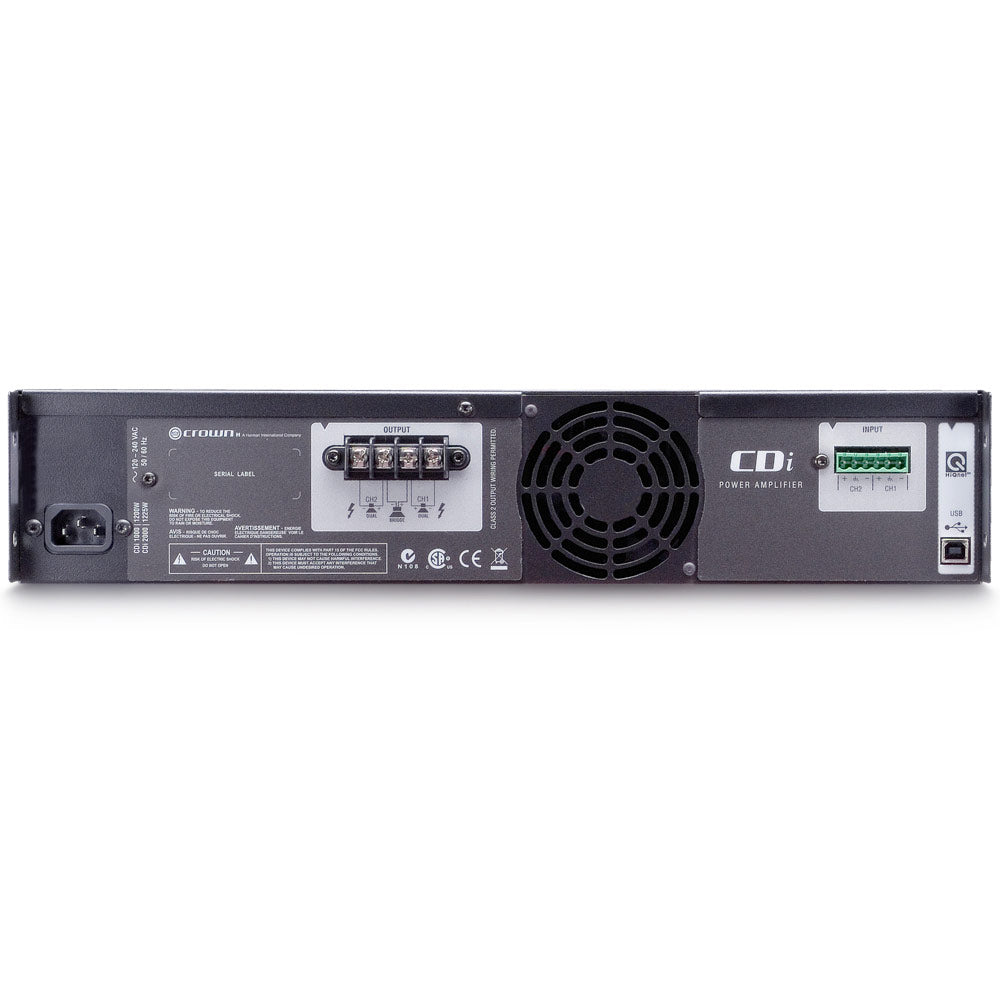

- Barrier strip outputs for low-Z or 70V/140V loads, removable Phoenix-style inputs
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
| Frequency Response | +0/Ð1 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms |
| Voltage Gain at 1kHz, 8 ohm rated output | 32.9 dB |
| Sensitivity | 1.4V |
| Signal to Noise Ratio (below rated 8-ohm power at 1 kHz) | 100 dB (A weighted) |
| Damping Factor | Better than 500 from 20 Hz to 400 Hz. |
| Crosstalk | > 70 dB below rated power, 20 Hz to 1 kHz. |
| Input Impedance (nominal) | 20 k ohms, balanced; 10 k ohms, unbalanced. |
| Dimensions | 3.5 in. (8.9 cm) high and 12.25 in. (31.11 cm) deep |
| Shipping Weight | 22 lb (10.0 kg). |
| Minimum Guaranteed Power | |
| 2 ohm Dual (per ch) | 1,000W |
| 4 ohm Dual (per ch) | 800W |
| 8 ohm Dual (per ch) | 475W |
| 4 ohm Bridge-Mono | 2,000W |
| 70V Dual (per ch) | 800W |
| 140V Bridge-Mono | 1,600W |
This power amplifier is a professional tool designed and built for installed sound applications. Rugged and lightweight, it offers incredible value in its class. It features an intuitive front-panel LCD screen to guide installers through configurations, and also offers onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more. Your investment in a CDi-Series power amplifier is backed by Crown's Three-Year, No-Fault, Fully Transferable Warranty.
Features
- Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
- Extremely versatile; rated for 2, 4, 8 ohm loads and 70V and 140V outputs
- Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
- Intuitive front-panel LCD screen for quick, easy configuration
- Switch-mode universal power supply
- Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
- Fills 2U rack spaces and weighs under 19 pounds
- Barrier strip outputs for low-Z or 70V/140V loads, removable Phoenix-style inputs
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
| Frequency Response | +0/Ð1 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms |
| Voltage Gain at 1kHz, 8 ohm rated output | 32.9 dB |
| Sensitivity | 1.4V |
| Signal to Noise Ratio (below rated 8-ohm power at 1 kHz) | 100 dB (A weighted) |
| Damping Factor | Better than 500 from 20 Hz to 400 Hz. |
| Crosstalk | > 70 dB below rated power, 20 Hz to 1 kHz. |
| Input Impedance (nominal) | 20 k ohms, balanced; 10 k ohms, unbalanced. |
| Dimensions | 3.5 in. (8.9 cm) high and 12.25 in. (31.11 cm) deep |
| Shipping Weight | 22 lb (10.0 kg). |
| Minimum Guaranteed Power | |
| 2 ohm Dual (per ch) | 1,000W |
| 4 ohm Dual (per ch) | 800W |
| 8 ohm Dual (per ch) | 475W |
| 4 ohm Bridge-Mono | 2,000W |
| 70V Dual (per ch) | 800W |
| 140V Bridge-Mono | 1,600W |
