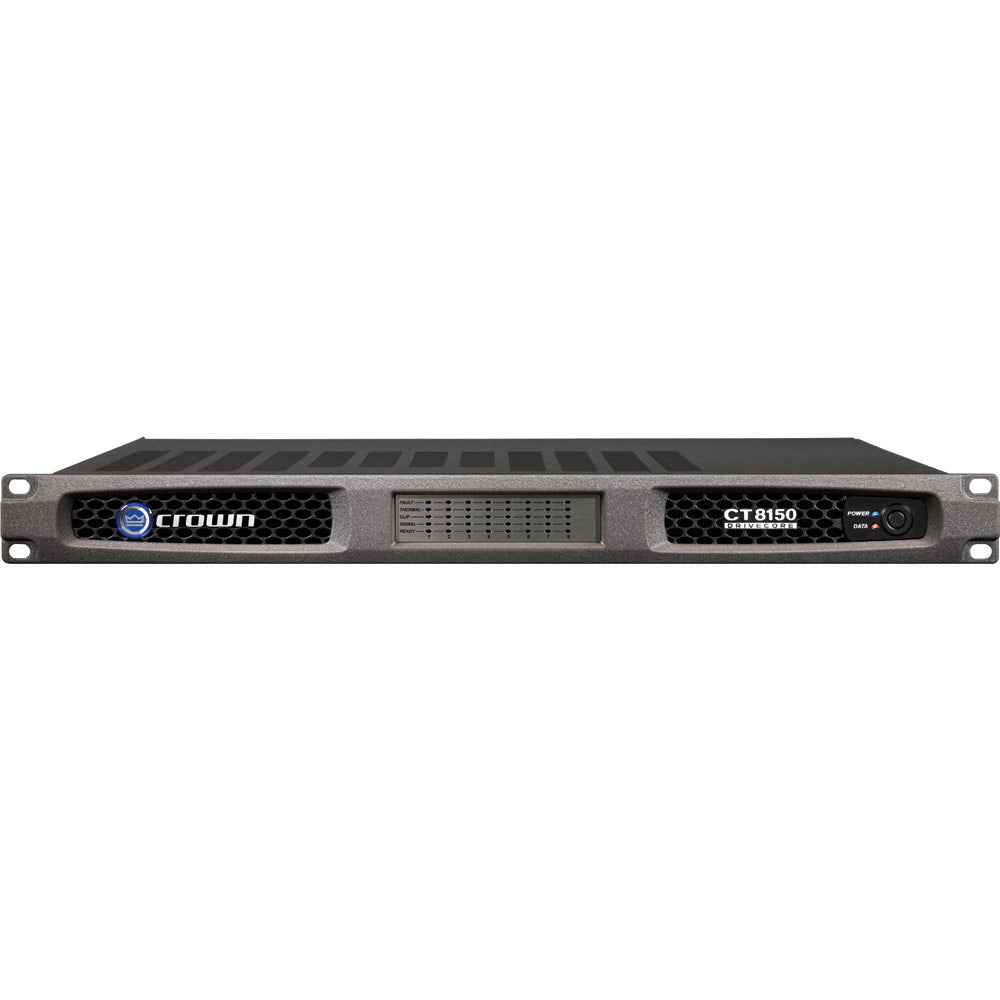

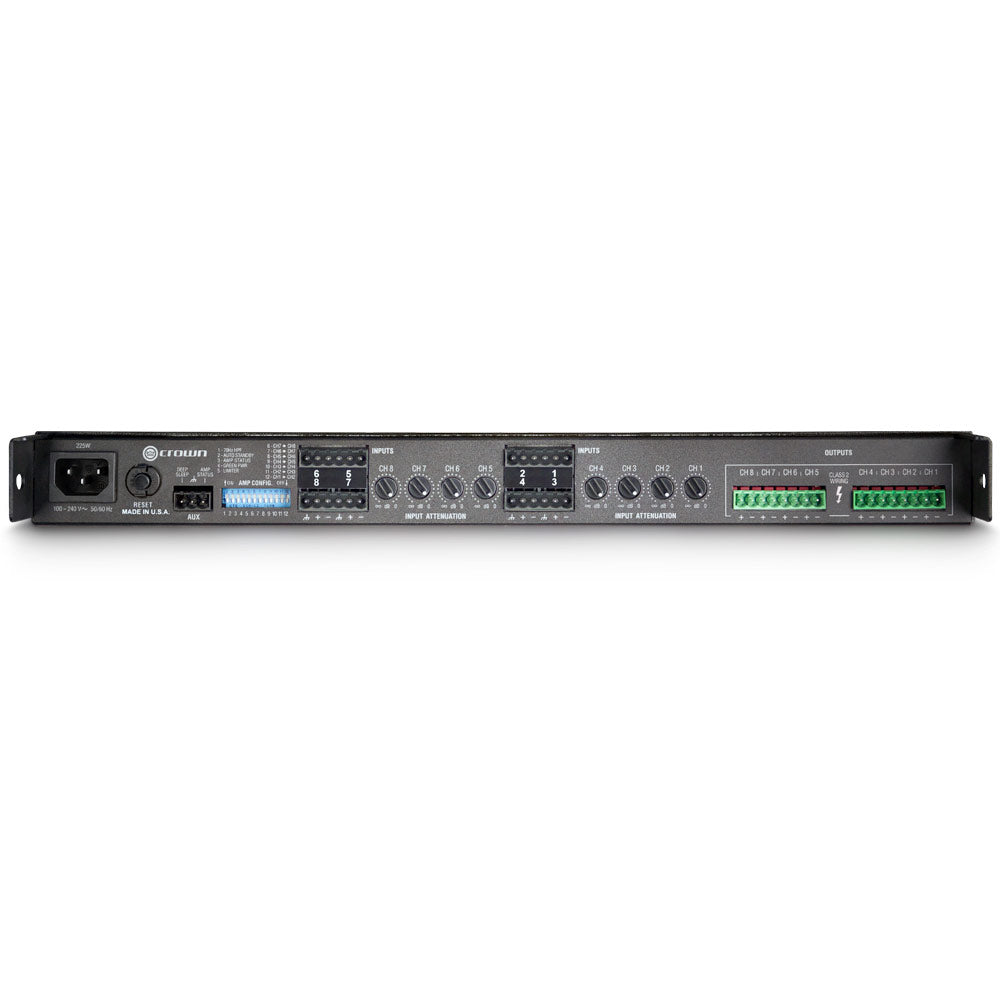

Crown CT 8150 ComTech DriveCore 8-Channel Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
Features:
- Flexible Input Routing
- Convection Cooled
- Universal Power Supply
- Integrated Life-Safety Features
- Up to 8X125W in 1U chassis with no fan
- DriveCore™ technology provides >90% efficiency with no compromise in performance
- Patented Feedback and Protection Circuits
- Amplifier is stable for 2 – 16 Ohm Loads
- XFMR 4/8 needed for 70V/100V Applications
| Channels | 8 |
| Power Rating | 4 Ohms: 125W 8 Ohms: 125W |
| Sensitivity | 1.4 V |
| Rated Power Output (all channels driven) | 125W per CH @ 4 ohms, 125W per CH @ 8 ohms |
| Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) | 110 dB |
| THD (full rated power, 20 Hz - 20 kHz) | < 0.05% |
| Intermodulation Distortion (from 0 dB down to -30 dB) | < 0.05% |
| Frequency Response (at 1W, 4/8 ohms) | +/- 0.5 dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | > 70 dB |
| Common Mode Rejection (20 Hz to 1 kHz) | > 55 dB, typically> 70 dB |
| Voltage Gain | 27 dB |
| DC Offset | +/- 20mV |
| Idle Power Consumption (Standard Mode) | 17.5W |
| Dimensions | 1.75" x 19" x 15.19" |
| Weight | 10lbs/4.54kg |
| Shipping Weight | 15 lbs/6.8 kg |
| IEC Power Connector | 15A |
Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
Features:
- Flexible Input Routing
- Convection Cooled
- Universal Power Supply
- Integrated Life-Safety Features
- Up to 8X125W in 1U chassis with no fan
- DriveCore™ technology provides >90% efficiency with no compromise in performance
- Patented Feedback and Protection Circuits
- Amplifier is stable for 2 – 16 Ohm Loads
- XFMR 4/8 needed for 70V/100V Applications
| Channels | 8 |
| Power Rating | 4 Ohms: 125W 8 Ohms: 125W |
| Sensitivity | 1.4 V |
| Rated Power Output (all channels driven) | 125W per CH @ 4 ohms, 125W per CH @ 8 ohms |
| Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) | 110 dB |
| THD (full rated power, 20 Hz - 20 kHz) | < 0.05% |
| Intermodulation Distortion (from 0 dB down to -30 dB) | < 0.05% |
| Frequency Response (at 1W, 4/8 ohms) | +/- 0.5 dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | > 70 dB |
| Common Mode Rejection (20 Hz to 1 kHz) | > 55 dB, typically> 70 dB |
| Voltage Gain | 27 dB |
| DC Offset | +/- 20mV |
| Idle Power Consumption (Standard Mode) | 17.5W |
| Dimensions | 1.75" x 19" x 15.19" |
| Weight | 10lbs/4.54kg |
| Shipping Weight | 15 lbs/6.8 kg |
| IEC Power Connector | 15A |
