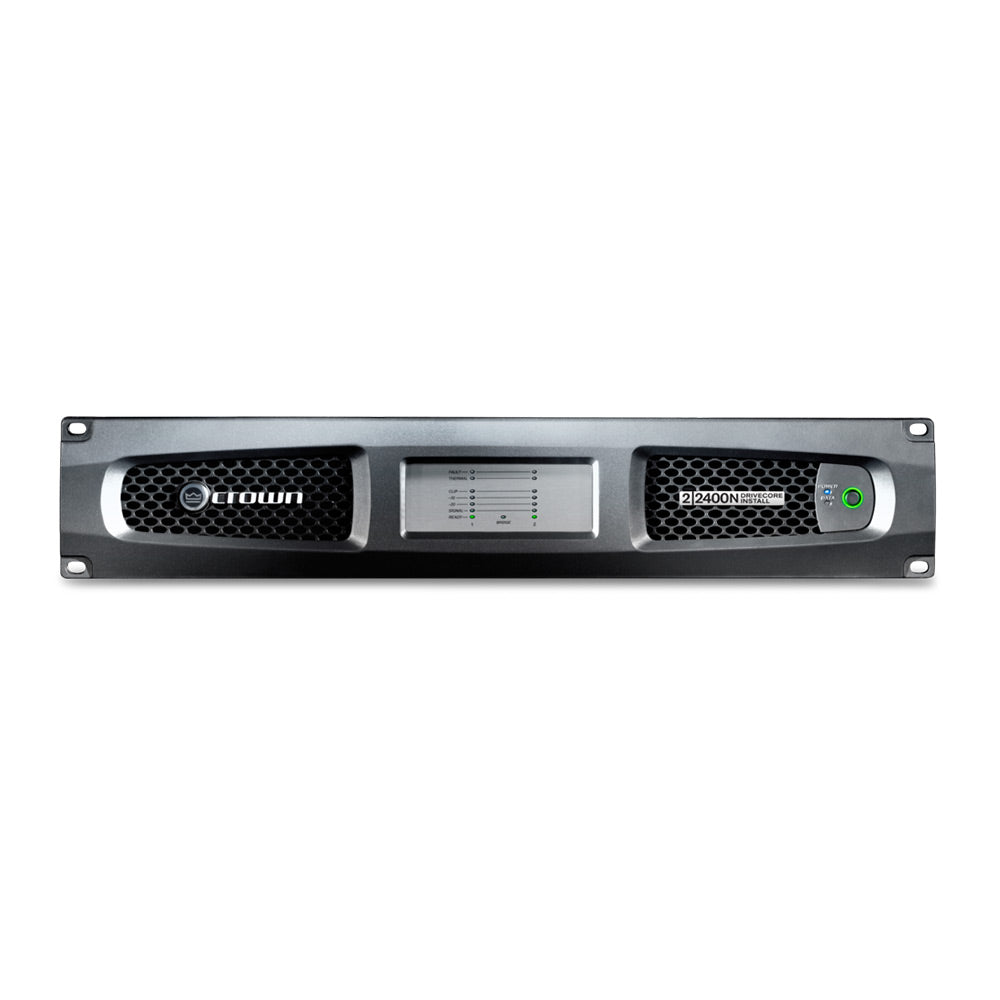

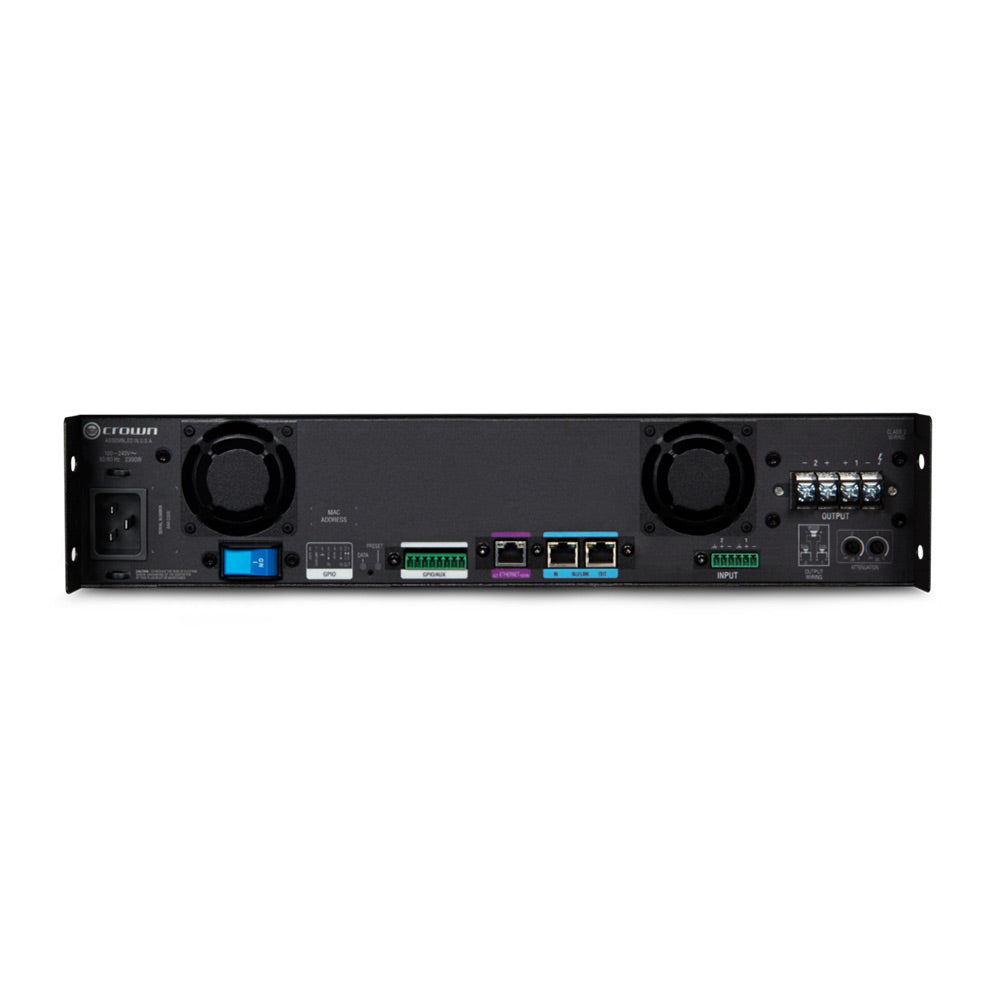

Crown DCi 2|2400N Two-Channel 2400W @ 4 Ohm Power Amplifier with BLU link, 70V/100V



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:CROW-DCI22400N

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Call for Price

Shipping Charges Apply
  • The new DriveCore™ install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

    ANALOG & DIGITAL INPUTS – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.

    NETWORK MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

    PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

    DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:

    • LevelMAX Limiters
    • Input/Output EQ
    • Delay
    • Matrix Mixer
    • Speaker Line Monitoring
  • Channels 2
    Dual Mode - All Channels Driven 2 ohms: 2100W
    4 ohms: 2400W
    8 ohms: 1900W
    16 ohms: 950W
    70V RMS: 2100W
    100V RMS: 2300W
    Bridge Mono Mode - All Channels Driven 4 ohms: 4200W
    8 ohms: 4800W
    16 ohms: 3800W
    140V RMS: 4200W
    200V RMS: 4600W
    Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) +/- 0.25 dB
    BLU Link Input Signal to Noise Ratio (A-Weighted) > 104dB
    Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) 0.35%
    Voltage Gain 34 dB
    Damping Factor (20 Hz to 100 Hz) >1500
    Input Impedance (nominal balanced, unbalanced) 10 kOhms, 5 kOhms
    Maximum Input Level before Compression +20 dBu
    Load Impedance (Stereo/Dual Mode) 2 - 16 Ohms; 70Vrms and 100Vrms
    Load Impedance Bridge Mono 4 - 16 Ohms; 140Vrms and 200Vrms
    Cooling Continuously variable speed forced air, front to back airflow
    Maximum Fan Noise (re dBA SPL @ 1M) 45
    Required AC Mains (+/- 10%) 100V-240V ~ 50/60 Hz
    Dimensions 19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm)
    Weight 23.5lbs (10.66kg)
    IEC Power Connector 15A
