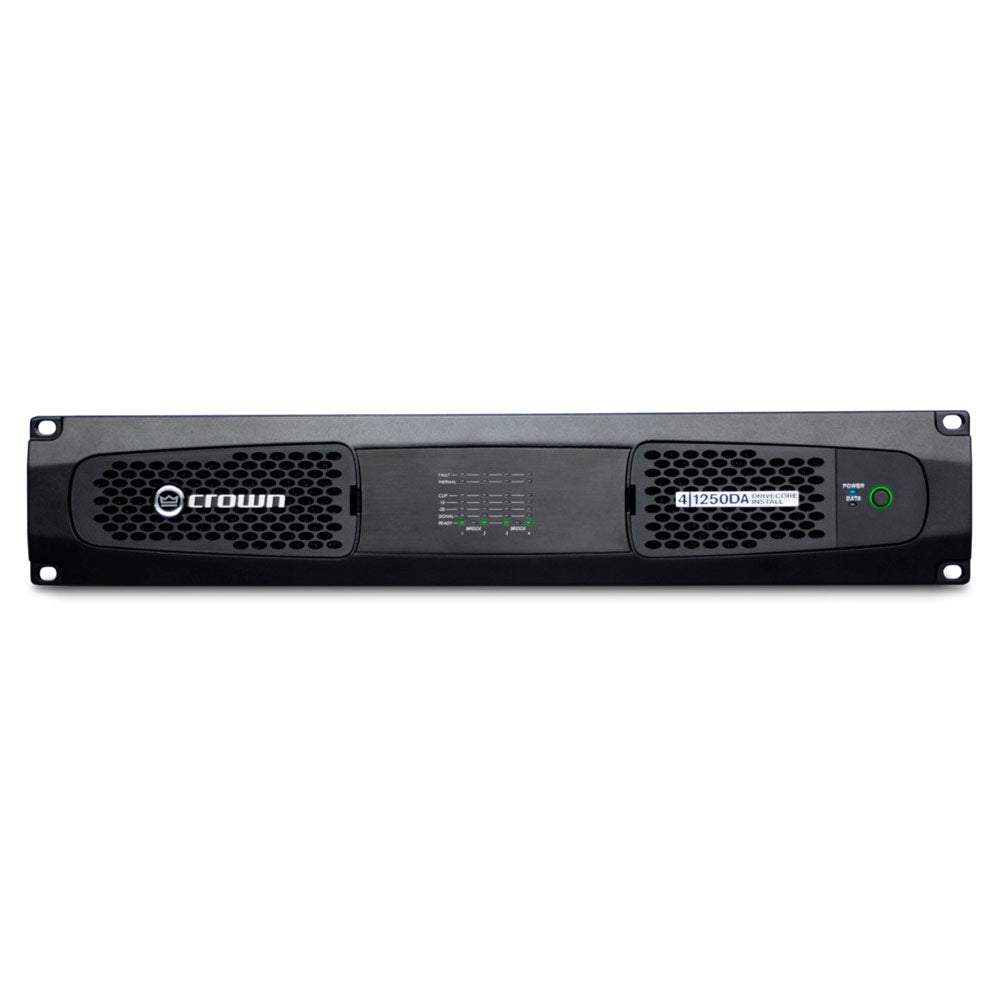

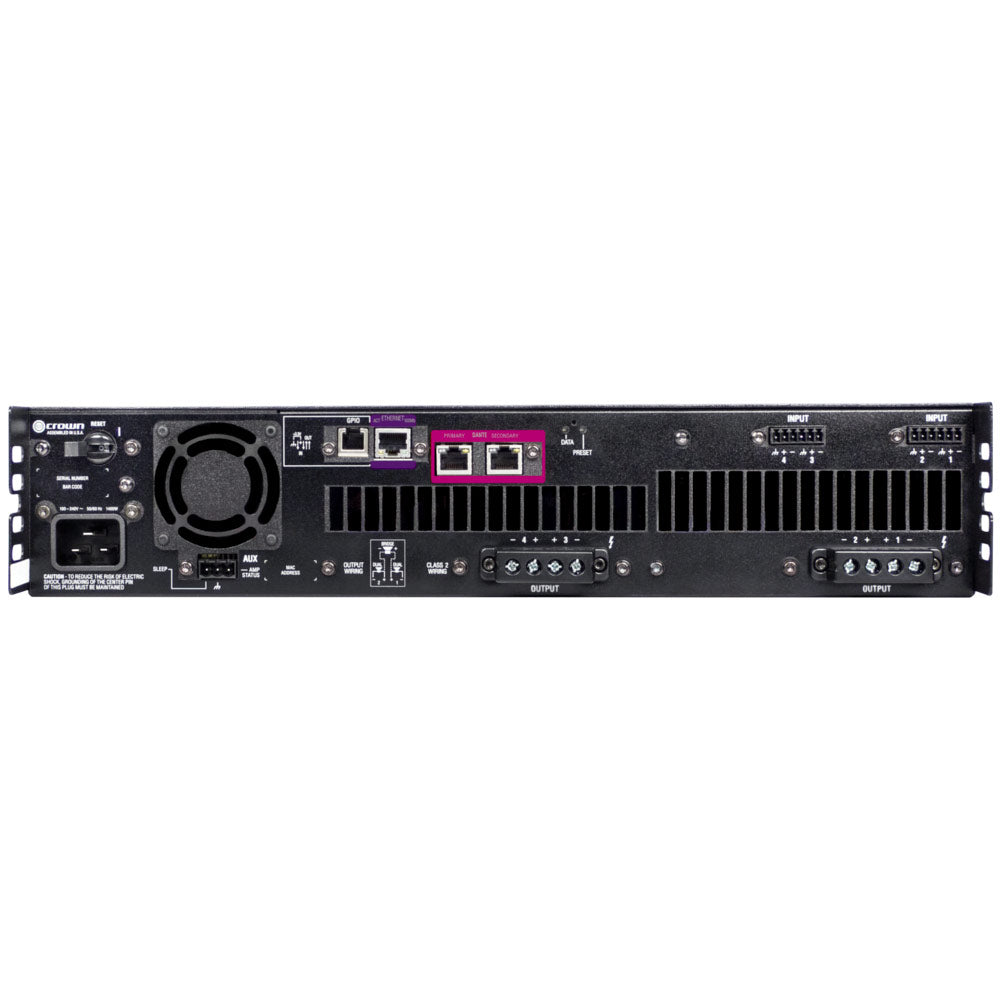

Crown DCI 4|1250DA DriveCore Install Dante 4-Channel Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DriveCore Install DA series is a line of premium installation amplifiers with Dante™ networked audio transport that are based upon proprietary DriveCore technology. These amplifiers feature an efficient design with network control/monitoring, high-level DSP with JBL tunings, and 2 ohm/4 ohm/8 ohm/70V/100V direct output compatibility.
INTEGRATED DANTE™NETWORKED AUDIO - Simplifies installation by enabling Dante networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers.
NETWORK CONFIGURATION, MONITORING & CONTROL - Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORT - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
DIGITAL SIGNAL PROCESSING - DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Router
- Speaker Line Monitoring
| Power Rating | |
| Dual Mode - All Channels Driven | 2 ohms: 1250W |
| Bridge Mono Mode - All Channels Driven | 4 ohms: 2500W 8 ohms: 2500W 16 ohms: 2500W 140v RMS: 2500W 200v RMS: 2500W |
| Redundant, independent Dante ports | ¥ Primary / Secondary ¥ Will accept 48khz or 96khz ¥ Capable of sending out Dante audio from analog inputs pre/post processing (@ 48kHz) |
| Unique Features | - Audio Architect Control and Monitoring - DriveCore Amplifier Technology - Universal PFC Power Supply |
| DSP | ¥ 48kHz processing ¥ 20 Presets |
| Input router | ¥ High, medium, and low priority inputs ¥ Input delay up to 2s ¥ Input EQ ¥ Crossover |
| Output options | ¥ Output EQ ¥ Output Delay up to 100ms ¥ LevelMAX limiter ¥ Load Monitoring |
| Pilot tone | ¥ Normal ¥ Burst |
| Other | - Continuous Load Monitoring - Sweep Load Monitoring ¥ Channel Auto-Standby ¥ Speaker Tunings - Aux-Port ¥ Sleep contact closure ¥ Amp Status output - Removable air filters - Front panel LED indicators |
The DriveCore Install DA series is a line of premium installation amplifiers with Dante™ networked audio transport that are based upon proprietary DriveCore technology. These amplifiers feature an efficient design with network control/monitoring, high-level DSP with JBL tunings, and 2 ohm/4 ohm/8 ohm/70V/100V direct output compatibility.
INTEGRATED DANTE™NETWORKED AUDIO - Simplifies installation by enabling Dante networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers.
NETWORK CONFIGURATION, MONITORING & CONTROL - Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORT - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
DIGITAL SIGNAL PROCESSING - DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Router
- Speaker Line Monitoring
| Power Rating | |
| Dual Mode - All Channels Driven | 2 ohms: 1250W |
| Bridge Mono Mode - All Channels Driven | 4 ohms: 2500W 8 ohms: 2500W 16 ohms: 2500W 140v RMS: 2500W 200v RMS: 2500W |
| Redundant, independent Dante ports | ¥ Primary / Secondary ¥ Will accept 48khz or 96khz ¥ Capable of sending out Dante audio from analog inputs pre/post processing (@ 48kHz) |
| Unique Features | - Audio Architect Control and Monitoring - DriveCore Amplifier Technology - Universal PFC Power Supply |
| DSP | ¥ 48kHz processing ¥ 20 Presets |
| Input router | ¥ High, medium, and low priority inputs ¥ Input delay up to 2s ¥ Input EQ ¥ Crossover |
| Output options | ¥ Output EQ ¥ Output Delay up to 100ms ¥ LevelMAX limiter ¥ Load Monitoring |
| Pilot tone | ¥ Normal ¥ Burst |
| Other | - Continuous Load Monitoring - Sweep Load Monitoring ¥ Channel Auto-Standby ¥ Speaker Tunings - Aux-Port ¥ Sleep contact closure ¥ Amp Status output - Removable air filters - Front panel LED indicators |
