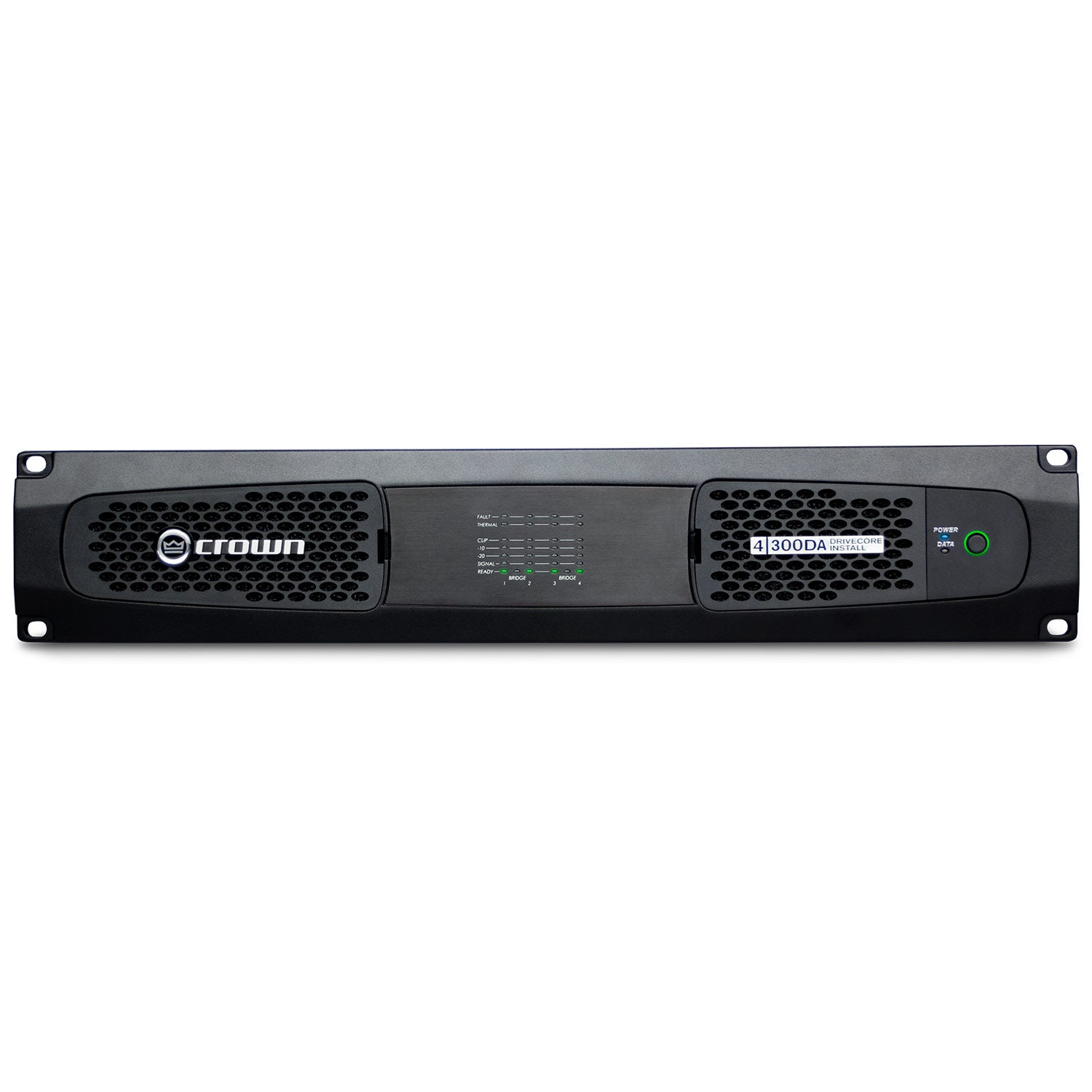

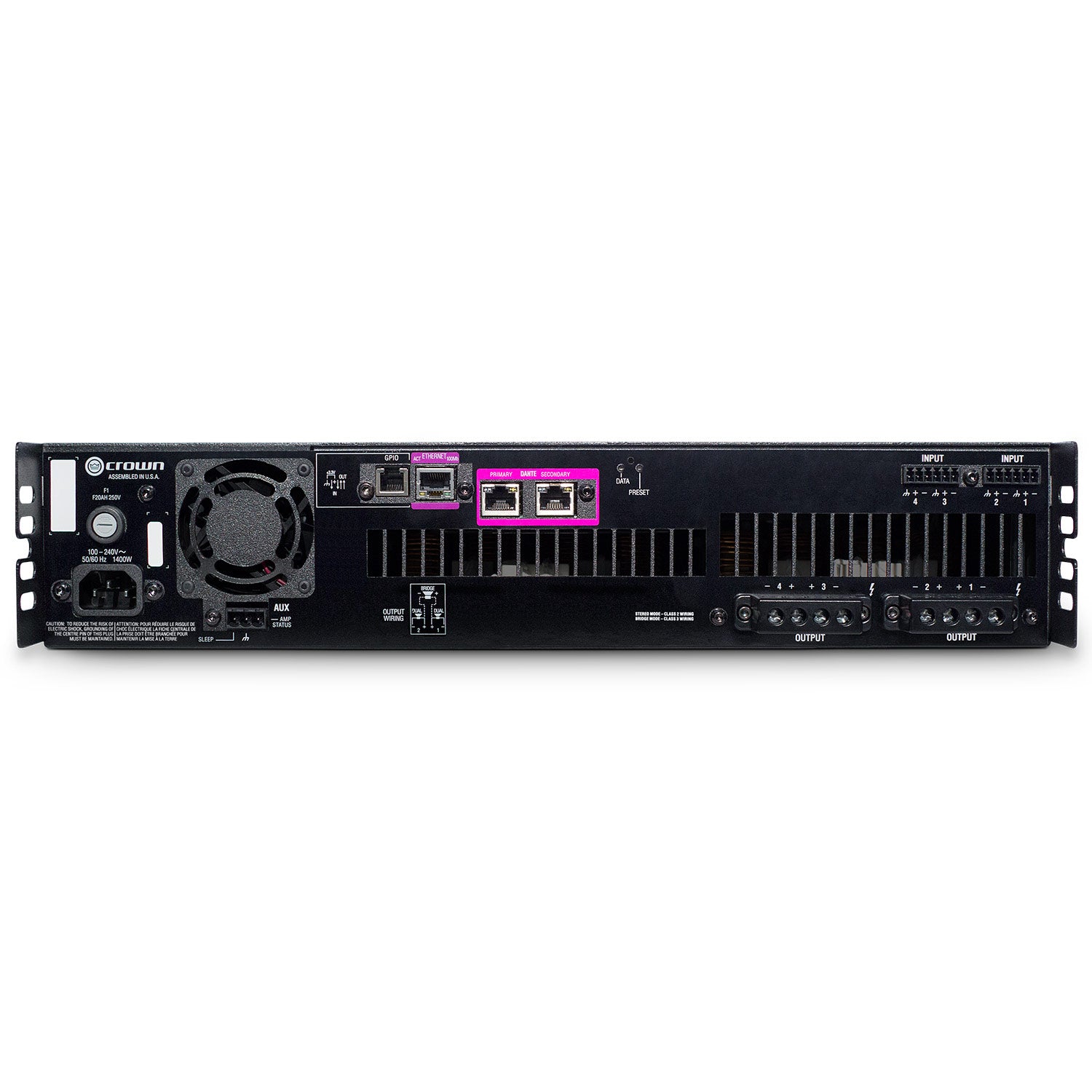

Crown DCi 4|300DA DriveCore Install Power Amplifier with Dante
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp's advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.
Features:
- Integrated Dante™ / AES67 Networked Audio - Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
- Network Configuration, Monitoring & Control - Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
- Programmable General Purpose Input/Output Port - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
- Digital Signal Processing - DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Router
- Speaker Line Monitoring
| Channels | 4 |
| Power Output Rating | 2½: 150W 4½: 300W 8½: 300W 70Vrms: 300W 100Vrms: 300W |
| Frequency Response (8½, 20Hz - 20kHz) | ±0.25dB |
| Dante Input Signal to Noise Ratio (ref. rated power, 8ohm, 20Hz-20kHz) | >108dB |
| Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | 0.35% |
| Voltage Gain (at Maximum Level Setting) | 34dB |
| Damping Factor (20Hz to100Hz) | >1000 |
| Input Impedance (nominal balanced, unbalanced) | 10k½, 5k½ |
| Maximum Input Level (Low Gain Mode) before Compression | +20dBu |
| Load Impedance Stereo/Dual Mode | 2½ - 16½; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4½ - 16½; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (±10%) | 100Vrms - 240Vrms ~50/60Hz |
| Power Connector | 15A IEC |
| Width | 19 in. (48.3 cm) |
| Height | 3.5 in. (8.9 cm) |
| Depth | 14.25 in. (35.63 cm) |
| Weight | 20.1 lbs (9.12 kg) |
For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp's advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.
Features:
- Integrated Dante™ / AES67 Networked Audio - Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
- Network Configuration, Monitoring & Control - Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
- Programmable General Purpose Input/Output Port - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
- Digital Signal Processing - DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Router
- Speaker Line Monitoring
| Channels | 4 |
| Power Output Rating | 2½: 150W 4½: 300W 8½: 300W 70Vrms: 300W 100Vrms: 300W |
| Frequency Response (8½, 20Hz - 20kHz) | ±0.25dB |
| Dante Input Signal to Noise Ratio (ref. rated power, 8ohm, 20Hz-20kHz) | >108dB |
| Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | 0.35% |
| Voltage Gain (at Maximum Level Setting) | 34dB |
| Damping Factor (20Hz to100Hz) | >1000 |
| Input Impedance (nominal balanced, unbalanced) | 10k½, 5k½ |
| Maximum Input Level (Low Gain Mode) before Compression | +20dBu |
| Load Impedance Stereo/Dual Mode | 2½ - 16½; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4½ - 16½; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (±10%) | 100Vrms - 240Vrms ~50/60Hz |
| Power Connector | 15A IEC |
| Width | 19 in. (48.3 cm) |
| Height | 3.5 in. (8.9 cm) |
| Depth | 14.25 in. (35.63 cm) |
| Weight | 20.1 lbs (9.12 kg) |
