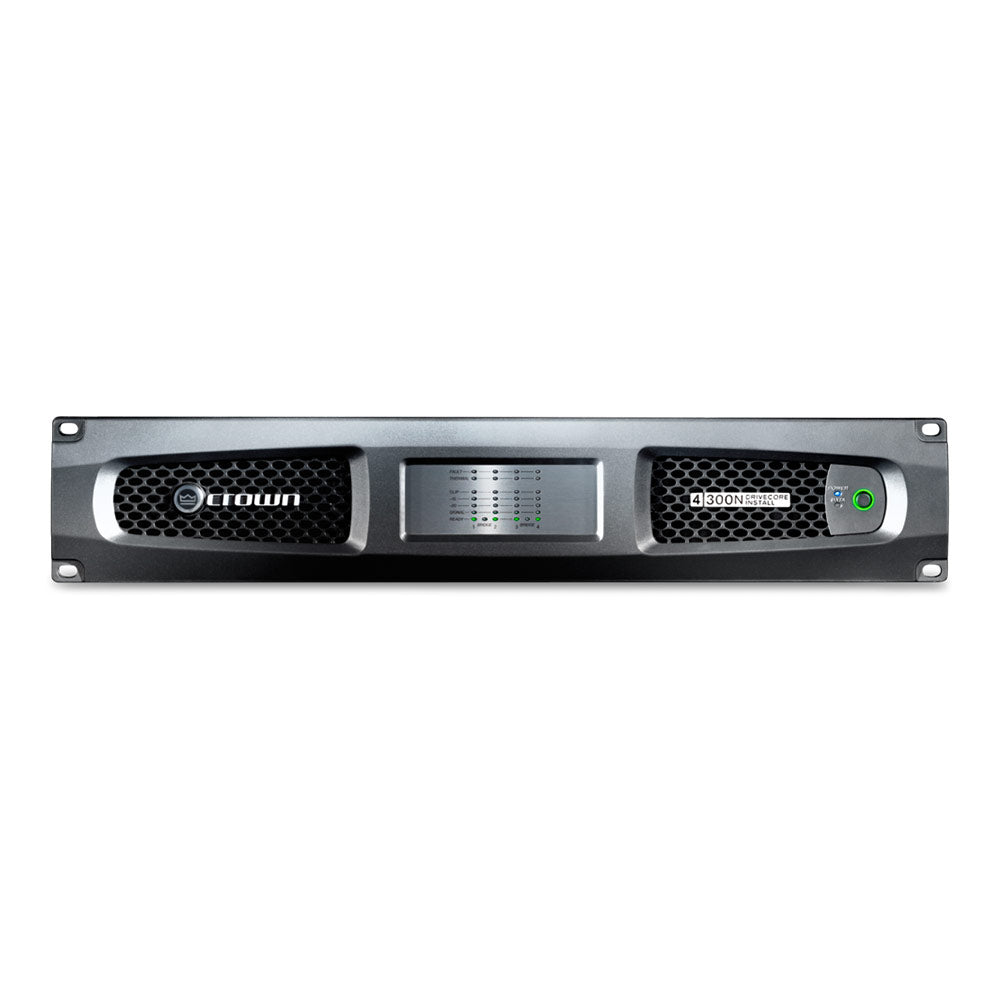

Crown DCI4|300N Four-Channel 300W @ 4 ohms Power Amplifier with BLU Link
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry's highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
| Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) | +/- 0.25 dB |
| BLU Link Input Signal to Noise Ratio (A-Weighted) | > 104dB |
| Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) | 0.35% |
| Voltage Gain | 34 dB |
| Damping Factor (20 Hz to 100 Hz) | >1000 |
| Input Impedance (nominal balanced, unbalanced) | 10 kOhms, 5 kOhms |
| Maximum Input Level before Compression | +20 dBu |
| Load Impedance (Stereo/Dual Mode) | 2 - 16 Ohms; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4 - 16 Ohms; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (+/- 10%) | 100V-240V ~ 50/60 Hz |
| IEC Power Connector | 15A IEC |
| Dimensions | 19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm) |
| Weight | 20.1lbs (9.12kg) |
The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry's highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
| Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) | +/- 0.25 dB |
| BLU Link Input Signal to Noise Ratio (A-Weighted) | > 104dB |
| Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) | 0.35% |
| Voltage Gain | 34 dB |
| Damping Factor (20 Hz to 100 Hz) | >1000 |
| Input Impedance (nominal balanced, unbalanced) | 10 kOhms, 5 kOhms |
| Maximum Input Level before Compression | +20 dBu |
| Load Impedance (Stereo/Dual Mode) | 2 - 16 Ohms; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4 - 16 Ohms; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (+/- 10%) | 100V-240V ~ 50/60 Hz |
| IEC Power Connector | 15A IEC |
| Dimensions | 19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm) |
| Weight | 20.1lbs (9.12kg) |
