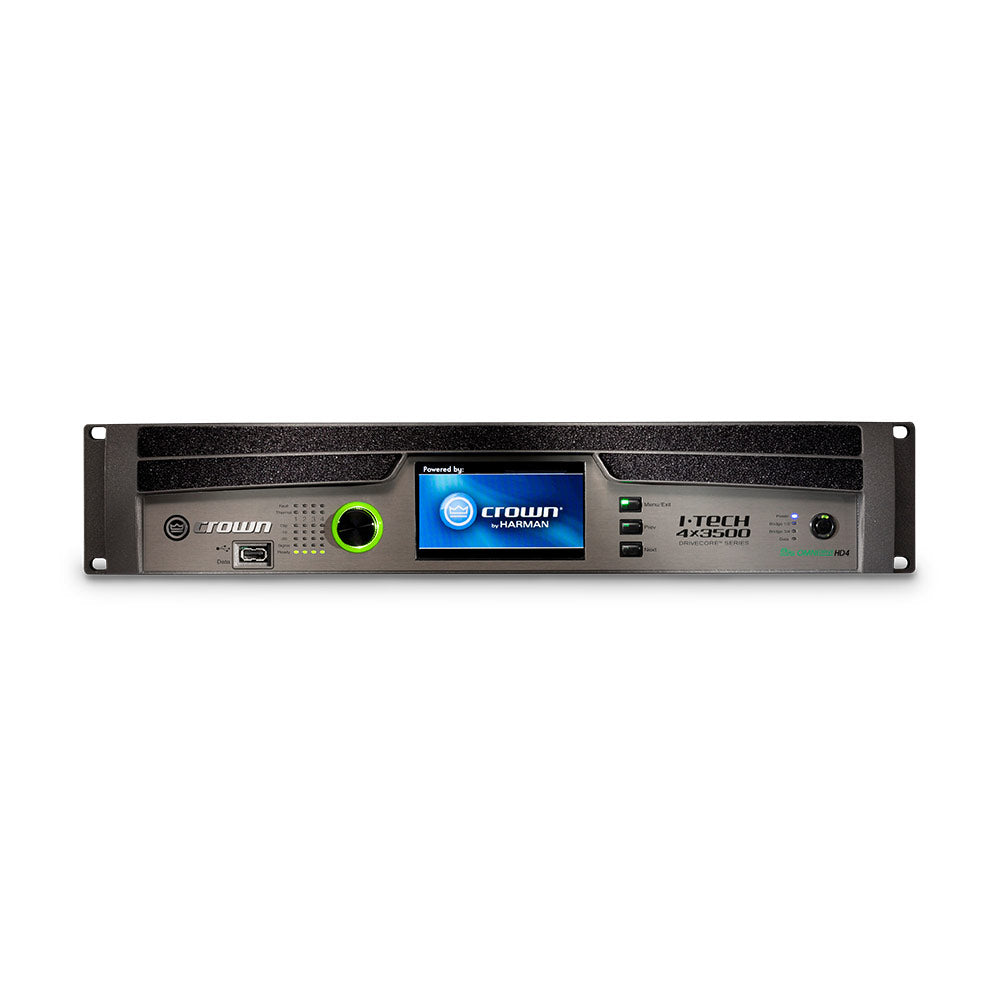

Crown I-Tech 4x3500HD - Four-Channel 4000W @ 4 Ohm Power Amplifier (Binding Post Version)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
| Channels | 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet) |
| Sensitivity | Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms |
| Damping Factor | >5000 |
| Signal to Noise Ratio | ≥108dB |
| THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
| Frequency Response | ±0.25dB |
| Intermodulation Distortion (from 0 dB down to -40 dB) | 0.06% |
| Crosstalk | >80dB |
| Common Mode Rejection | >80dB typical |
| Power Connector | 32A PowerCON |
| Dimension (HxWxD) | 89mm x 483mm x 431mm 3.5in x 19in x 16.9in |
| Net Weight | 13.2kg (29lbs) |
The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
| Channels | 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet) |
| Sensitivity | Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms |
| Damping Factor | >5000 |
| Signal to Noise Ratio | ≥108dB |
| THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
| Frequency Response | ±0.25dB |
| Intermodulation Distortion (from 0 dB down to -40 dB) | 0.06% |
| Crosstalk | >80dB |
| Common Mode Rejection | >80dB typical |
| Power Connector | 32A PowerCON |
| Dimension (HxWxD) | 89mm x 483mm x 431mm 3.5in x 19in x 16.9in |
| Net Weight | 13.2kg (29lbs) |
