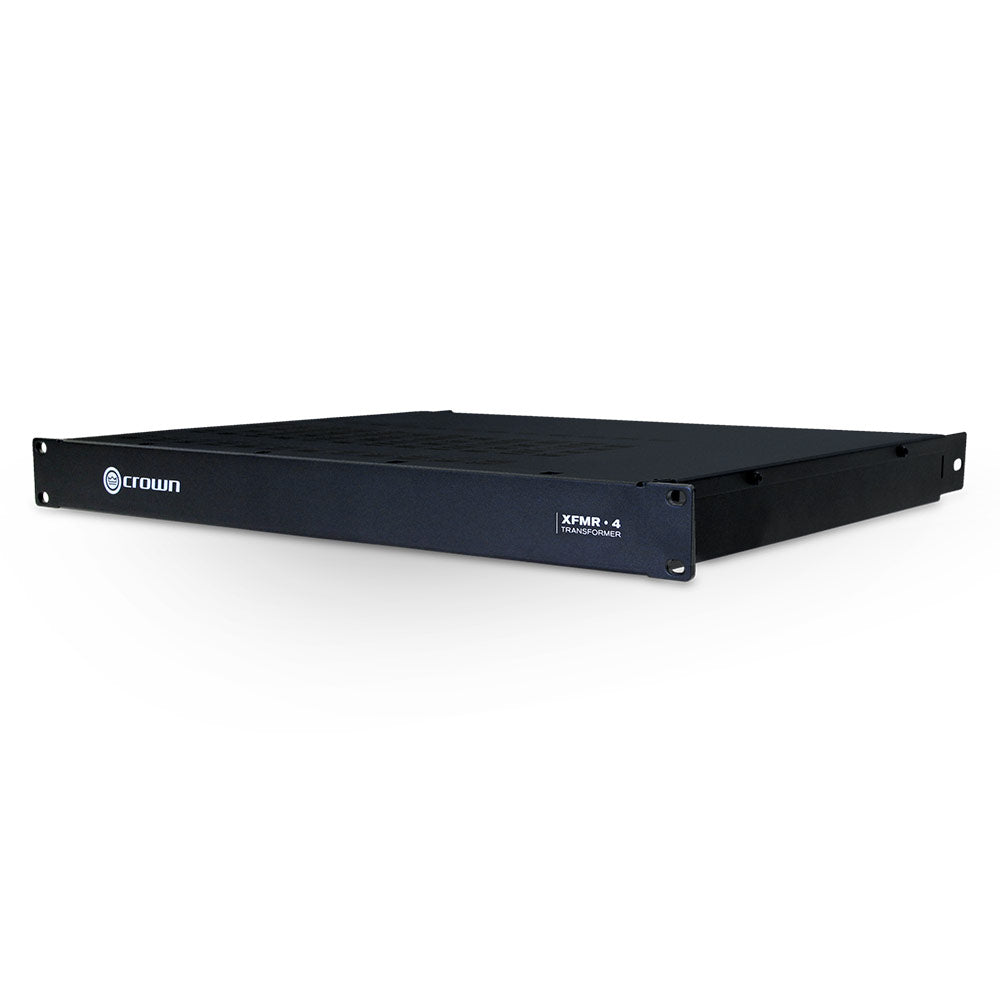

Crown XFMR4 4 Channel Rackmount Constant Voltage Transformer Panel
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Crown® XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and "constant voltage" loudspeakers. This unit allows amplifiers without direct 70V or 100V output capability to drive distributed speaker systems designed to operate at those voltages.
Features:
- Transformers provide 4 or 8 channels of impedance matching for constant voltage operation
- Provides 70V and 100V output when used only with Com-Tech DriveCore CT475, CT875, CT4150, and CT8150
- Allows amplifiers without direct constant-voltage capability to be easily integrated into distributed systems
- "Jumper" cables are provided to easily incorporate into the XFMR unit with a Com-Tech DriveCore amplifier
| Output connectors | Pluggable barrier block connectors that accepts up to 14 AWG wire |
| Frequency Response | +/Ð 1.0 dB (70 Hz to 15 kHz) |
| Insertion (Core) Loss | <1.0 dB max (70VA |
| Max Input Levels | 32 Vrms / 125W |
| Dimensions | 19 in (48.3 cm) wide, 1.72 in (4.4 cm) high, 15.6 in (39.7 cm) deep |
| Weight | 4CH: 17.0 lbs (7.7 kg) 8CH: 23.6 lbs (10.7 kg) |
The Crown® XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and "constant voltage" loudspeakers. This unit allows amplifiers without direct 70V or 100V output capability to drive distributed speaker systems designed to operate at those voltages.
Features:
- Transformers provide 4 or 8 channels of impedance matching for constant voltage operation
- Provides 70V and 100V output when used only with Com-Tech DriveCore CT475, CT875, CT4150, and CT8150
- Allows amplifiers without direct constant-voltage capability to be easily integrated into distributed systems
- "Jumper" cables are provided to easily incorporate into the XFMR unit with a Com-Tech DriveCore amplifier
| Output connectors | Pluggable barrier block connectors that accepts up to 14 AWG wire |
| Frequency Response | +/Ð 1.0 dB (70 Hz to 15 kHz) |
| Insertion (Core) Loss | <1.0 dB max (70VA |
| Max Input Levels | 32 Vrms / 125W |
| Dimensions | 19 in (48.3 cm) wide, 1.72 in (4.4 cm) high, 15.6 in (39.7 cm) deep |
| Weight | 4CH: 17.0 lbs (7.7 kg) 8CH: 23.6 lbs (10.7 kg) |
