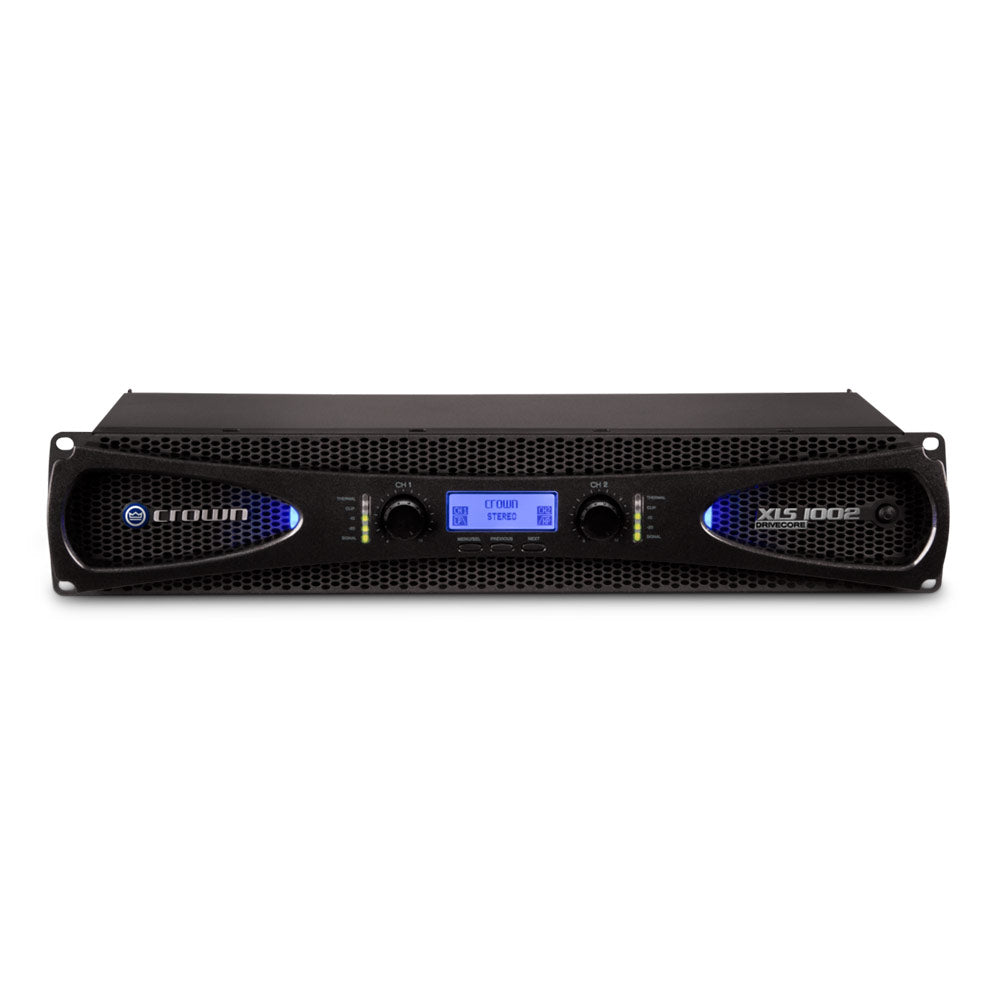

Crown XLS1002 DriveCore Two-Channel 350W @ 4 Ohm Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown's patented DriveCore technology and can drive 2400W at 4 ohm bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Features:
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers
- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
| Channels | 2 |
| Power Ratings | 2 Ohms Dual: 550W 4 Ohms Dual: 350W 8 Ohms Dual: 215W 4 Ohms Bridged: 1100W 8 Ohms Bridged: 700W |
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | > 97dB (at .775Vrms sensitivity, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz:> 85dB, At 20kHz:> 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) |
| Weight | 8.6 lbs (3.9 kgs) |
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown's patented DriveCore technology and can drive 2400W at 4 ohm bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Features:
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers
- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
| Channels | 2 |
| Power Ratings | 2 Ohms Dual: 550W 4 Ohms Dual: 350W 8 Ohms Dual: 215W 4 Ohms Bridged: 1100W 8 Ohms Bridged: 700W |
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | > 97dB (at .775Vrms sensitivity, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz:> 85dB, At 20kHz:> 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) |
| Weight | 8.6 lbs (3.9 kgs) |
