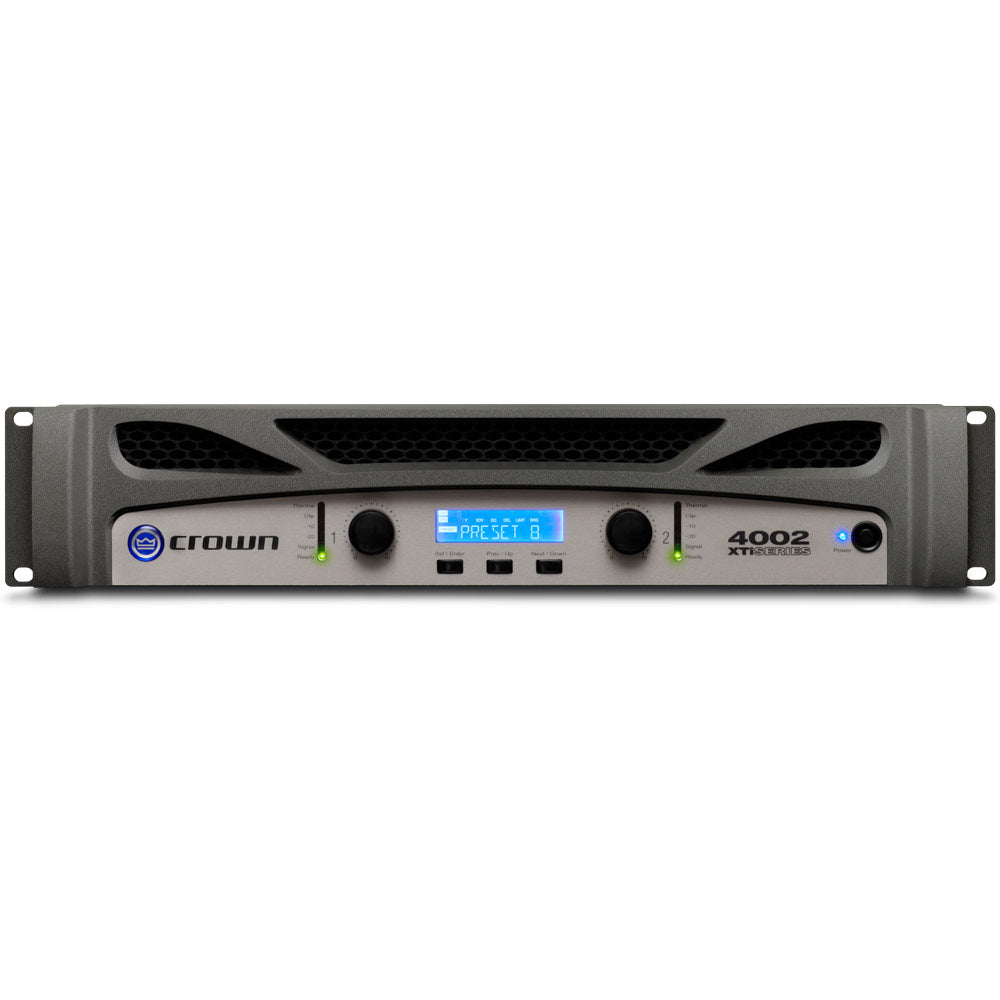

Crown XTI4002 650W 2-Channel Power Amplifier
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Crown XTI4002 650W 2-Channel Power Amplifier
Sale price$1,610.00
Regular price$2,012.50
Description
There's no debate - when you choose Crown's XTi 4002, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
With such innovations as a universal tracking switch-mode power supply and a fully integrated suite of speaker processing tools, these amps are at the top of their class when it comes to thermal efficiency and system flexibility.
XTi 4002:
- 2ohm Stereo (per ch.): 1600W
- 4ohm Stereo (per ch.): 1200W
- 8ohm Stereo (per ch.): 650W
- 8ohm Bridge-Mono: 2400W
- 4ohm Bridge-Mono: 3200W
Features:
- Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager™ and System Architect™ control software
- Increased number of presets to a total of 50; 49 of which are user definable
| INTEGRATED PROCESSING | |
| Input EQ | 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed. |
| Crossover Filters | Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control. |
| Output EQ | 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed. |
| Delay | For signal alignment of driver; 50 mS of total delay. |
| SubHarmonic Synth | Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type. |
| Peakxª Plus Limiter | User defeatable limiter that allows users to control Threshold, Attack, and Release times. |
| Presets | 50 total presets, 49 of which are user-definable. |
| PERFORMANCE | |
| Sensitivity (for full rated power at 4 ohms) | 1.4 Vrms |
| Frequency Response (at 1 watt, 20 Hz - 20 kHz) | +0 dB, Ð1 dB |
| Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms) | 100 dB (A weighted) |
| Total Harmonic Distortion (THD) | < 0.5% |
| Damping Factor 20 Hz to 1 kHz | > 500 |
| Crosstalk (below rated power) | 20 kHz - 1 kHz:> 70 db |
| Input Impedance (nominal) | 20k ohms balanced, 10k ohms unbalanced |
| Maximum Input Signal | +22 dBu typical |
| AC Line Voltage and Frequency Configurations | 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz |
| AC Line Current (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch) | Ê10.5A; no more than 38W at idle |
| CONTROLS | |
| Level | Two front-panel rotary level controls, one for each channel |
| Power Switch | On/Off switch applies AC power to the amplifier |
| Sel/Prev/Next Buttons | Three buttons near the LCD screen that are used to access menu items and front panel lockout |
| LCD Screen | Backlit liquid crystal display that shows preset and processing status |
| INDICATORS | |
| Signal Indicator | Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs). |
| Ð10 Indicator | Green LED flashes when output signal exceeds -10 dB below clip. |
| Ð20 Indicator | Green LED flashes when output signal level exceeds -20 dB below clip. |
| Ready Indicator | Green LED, one per channel, illuminates when the amplifier is ready to produce audio. |
| Clip Indicator | Red LED, one per channel, turns on at the threshold of audible distortion |
| Temp Indicator | Red LED, one per channel, illuminates under excessive temperature conditions |
| Power Indicator | Blue LED illuminates when the amplifier has been turned on and has power |

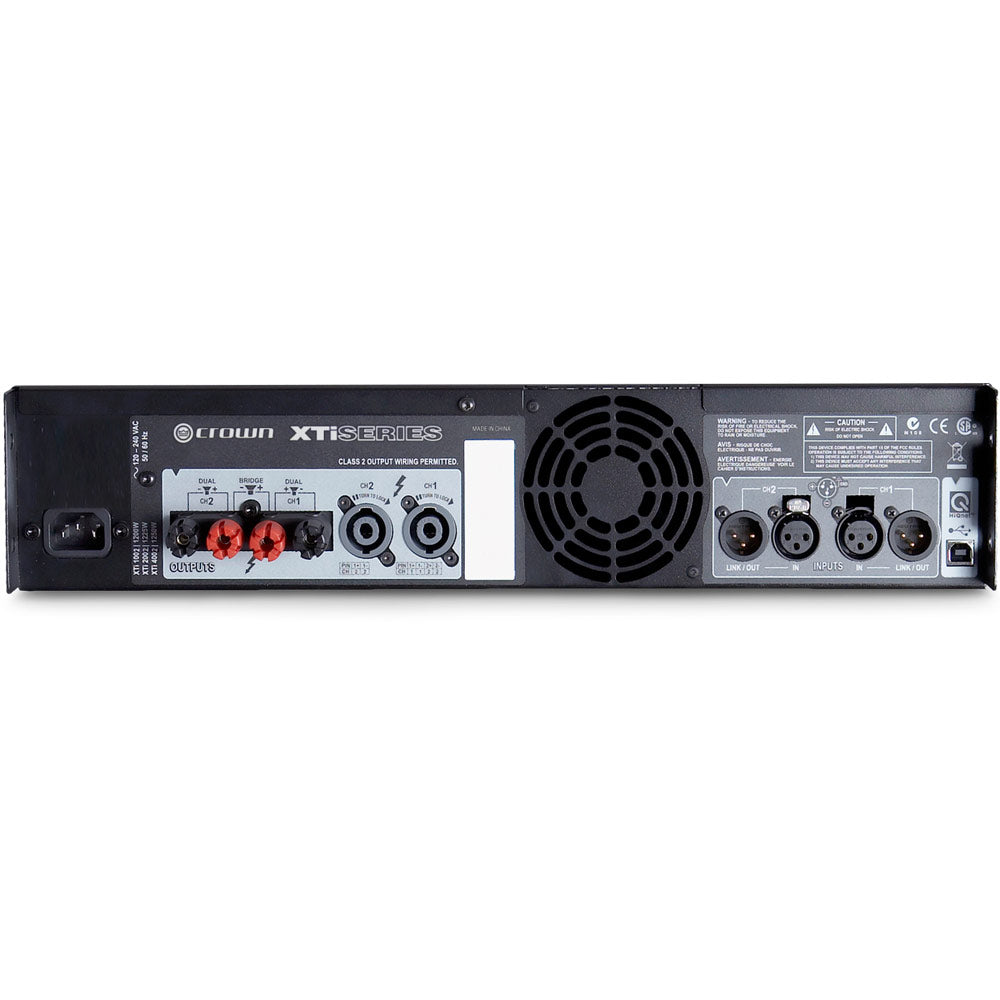

| INPUT/OUTPUT CONNECTORS | |
| Input Connectors | XLR, one per channel |
| Link/Out Connector | Loop-thru signal from input connector for linking another amplifier, one per channel. |
| Output Connectors | Two Neutrik¨ Speakon¨ NL4MP output connectors. Channel-1 Speakon¨ is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon¨ connectors). |
| HiQnetª USB Connector | Type B, connects to HiQnetª network. |
| CONSTRUCTION | |
| Chassis | Steel |
| Front Panel | Cast-aluminum |
| Cooling | Proportional speed fan with front-to-rear airflow. |
| Dimensions | 19" (W) x 3.5" (H) x 12.25" (D) |
| Net Weight | 18.5 lbs (8.4kg) |
| Shipping Weight | 21.5 lbs (9.8kg) |
There's no debate - when you choose Crown's XTi 4002, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
With such innovations as a universal tracking switch-mode power supply and a fully integrated suite of speaker processing tools, these amps are at the top of their class when it comes to thermal efficiency and system flexibility.
XTi 4002:
- 2ohm Stereo (per ch.): 1600W
- 4ohm Stereo (per ch.): 1200W
- 8ohm Stereo (per ch.): 650W
- 8ohm Bridge-Mono: 2400W
- 4ohm Bridge-Mono: 3200W
Features:
- Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager™ and System Architect™ control software
- Increased number of presets to a total of 50; 49 of which are user definable
| INTEGRATED PROCESSING | |
| Input EQ | 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed. |
| Crossover Filters | Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control. |
| Output EQ | 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed. |
| Delay | For signal alignment of driver; 50 mS of total delay. |
| SubHarmonic Synth | Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type. |
| Peakxª Plus Limiter | User defeatable limiter that allows users to control Threshold, Attack, and Release times. |
| Presets | 50 total presets, 49 of which are user-definable. |
| PERFORMANCE | |
| Sensitivity (for full rated power at 4 ohms) | 1.4 Vrms |
| Frequency Response (at 1 watt, 20 Hz - 20 kHz) | +0 dB, Ð1 dB |
| Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms) | 100 dB (A weighted) |
| Total Harmonic Distortion (THD) | < 0.5% |
| Damping Factor 20 Hz to 1 kHz | > 500 |
| Crosstalk (below rated power) | 20 kHz - 1 kHz:> 70 db |
| Input Impedance (nominal) | 20k ohms balanced, 10k ohms unbalanced |
| Maximum Input Signal | +22 dBu typical |
| AC Line Voltage and Frequency Configurations | 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz |
| AC Line Current (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch) | Ê10.5A; no more than 38W at idle |
| CONTROLS | |
| Level | Two front-panel rotary level controls, one for each channel |
| Power Switch | On/Off switch applies AC power to the amplifier |
| Sel/Prev/Next Buttons | Three buttons near the LCD screen that are used to access menu items and front panel lockout |
| LCD Screen | Backlit liquid crystal display that shows preset and processing status |
| INDICATORS | |
| Signal Indicator | Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs). |
| Ð10 Indicator | Green LED flashes when output signal exceeds -10 dB below clip. |
| Ð20 Indicator | Green LED flashes when output signal level exceeds -20 dB below clip. |
| Ready Indicator | Green LED, one per channel, illuminates when the amplifier is ready to produce audio. |
| Clip Indicator | Red LED, one per channel, turns on at the threshold of audible distortion |
| Temp Indicator | Red LED, one per channel, illuminates under excessive temperature conditions |
| Power Indicator | Blue LED illuminates when the amplifier has been turned on and has power |
| INPUT/OUTPUT CONNECTORS | |
| Input Connectors | XLR, one per channel |
| Link/Out Connector | Loop-thru signal from input connector for linking another amplifier, one per channel. |
| Output Connectors | Two Neutrik¨ Speakon¨ NL4MP output connectors. Channel-1 Speakon¨ is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon¨ connectors). |
| HiQnetª USB Connector | Type B, connects to HiQnetª network. |
| CONSTRUCTION | |
| Chassis | Steel |
| Front Panel | Cast-aluminum |
| Cooling | Proportional speed fan with front-to-rear airflow. |
| Dimensions | 19" (W) x 3.5" (H) x 12.25" (D) |
| Net Weight | 18.5 lbs (8.4kg) |
| Shipping Weight | 21.5 lbs (9.8kg) |
