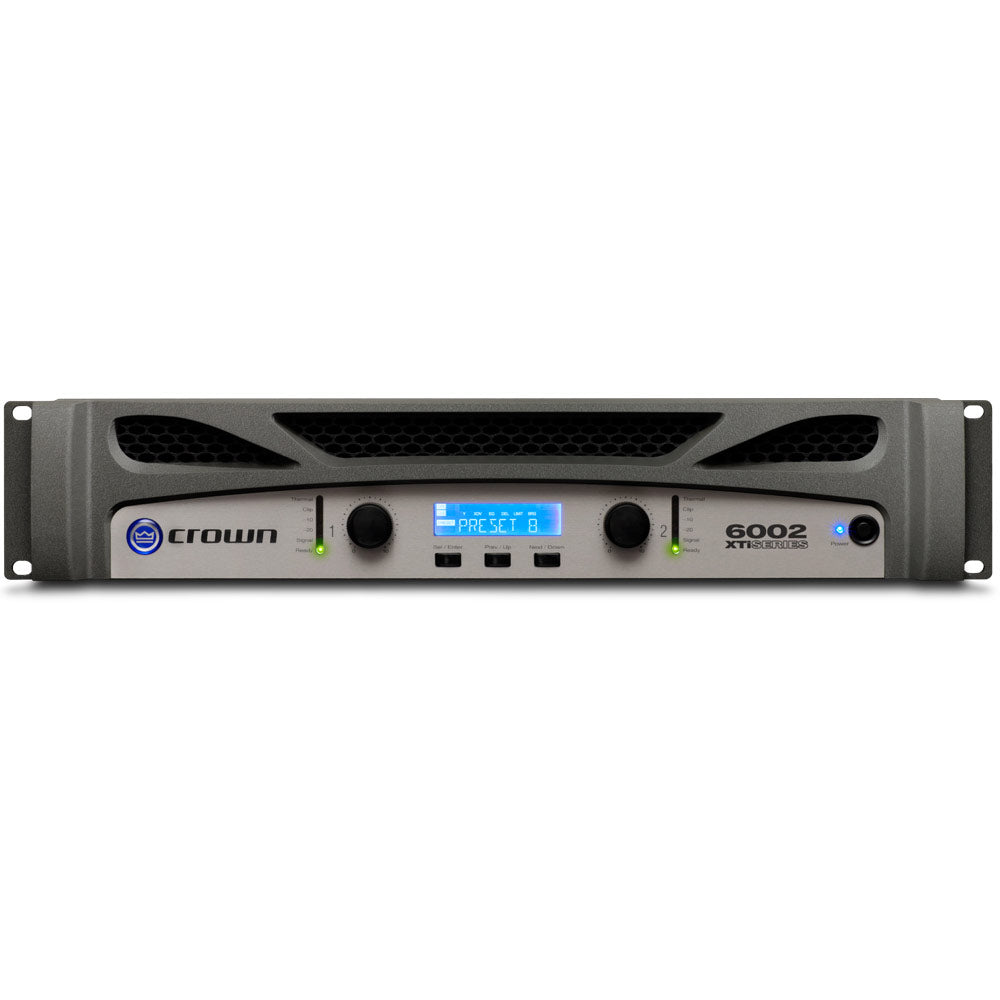

Crown XTI6002 1200W 2-Channel Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
There's no debate - when you choose Crown's XTi 6002, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
With such innovations as a universal tracking switch-mode power supply and a fully integrated suite of speaker processing tools, these amps are at the top of their class when it comes to thermal efficiency and system flexibility.
XTi 6002:
- 2ohm Stereo (per ch.): 3000W
- 4ohm Stereo (per ch.): 2100W
- 8ohm Stereo (per ch.): 1200W
- 8ohm Bridge-Mono: 4200W
- 4ohm Bridge-Mono: 6000W
Features:
- Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager™ and System Architect™ control software
- Increased number of presets to a total of 50; 49 of which are user definable
| INTEGRATED PROCESSING | |||||||||||||||||||||||||||||||||||||||||||||||||
| Input EQ | 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Crossover Filters | Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output EQ | 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Delay | For signal alignment of driver; 50 mS of total delay. | ||||||||||||||||||||||||||||||||||||||||||||||||
| SubHarmonic Synth | Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Peakxª Plus Limiter | User defeatable limiter that allows users to control Threshold, Attack, and Release times. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Presets | 50 total presets, 49 of which are user-definable. | ||||||||||||||||||||||||||||||||||||||||||||||||
| PERFORMANCE | |||||||||||||||||||||||||||||||||||||||||||||||||
| Sensitivity (for full rated power at 4 ohms) | 1.4 Vrms | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Response (at 1 watt, 20 Hz - 20 kHz) | +0 dB, Ð1 dB | ||||||||||||||||||||||||||||||||||||||||||||||||
| Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms) | 103 dB (A weighted) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Total Harmonic Distortion (THD) | < 0.5% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Damping Factor 20 Hz to 1 kHz | > 500 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Crosstalk (below rated power) | 20 kHz - 1 kHz:> 70 db | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input Impedance (nominal) | 20k ohms balanced, 10k ohms unbalanced | ||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Input Signal | +22 dBu typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Line Voltage and Frequency Configurations | 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Line Current (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch) | Ê15.3A; no more than 180W at idle | ||||||||||||||||||||||||||||||||||||||||||||||||
| CONTROLS | |||||||||||||||||||||||||||||||||||||||||||||||||
| Level | Two front-panel rotary level controls, one for each channel | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power Switch | On/Off switch applies AC power to the amplifier | ||||||||||||||||||||||||||||||||||||||||||||||||
| Sel/Prev/Next Buttons | Three buttons near the LCD screen that are used to access menu items and front panel lockout | ||||||||||||||||||||||||||||||||||||||||||||||||
| LCD Screen |
